CRM-FBA experiments

CRM-coupled dynamic FBA. Each experiment in this suite runs a genome-scale metabolic model (GSM) under Flux Balance Analysis, with exchange-reaction lower bounds set by a Consumer Resource Model (CRM) from a pluggable registry (MacArthur, Adaptive, MCRM, MiCRM, Monod). The figures separate the two layers explicitly — panel (B) shows the CRM-prescribed uptake rate u_a(t) (the input to EX_rxn.lower_bound = −u_a), panel (C) shows the FBA-realized exchange flux v_a(t) next to the CRM envelope so the coupling is visible at a glance.

Diauxie

Sequential substrate utilization · CRM: monod

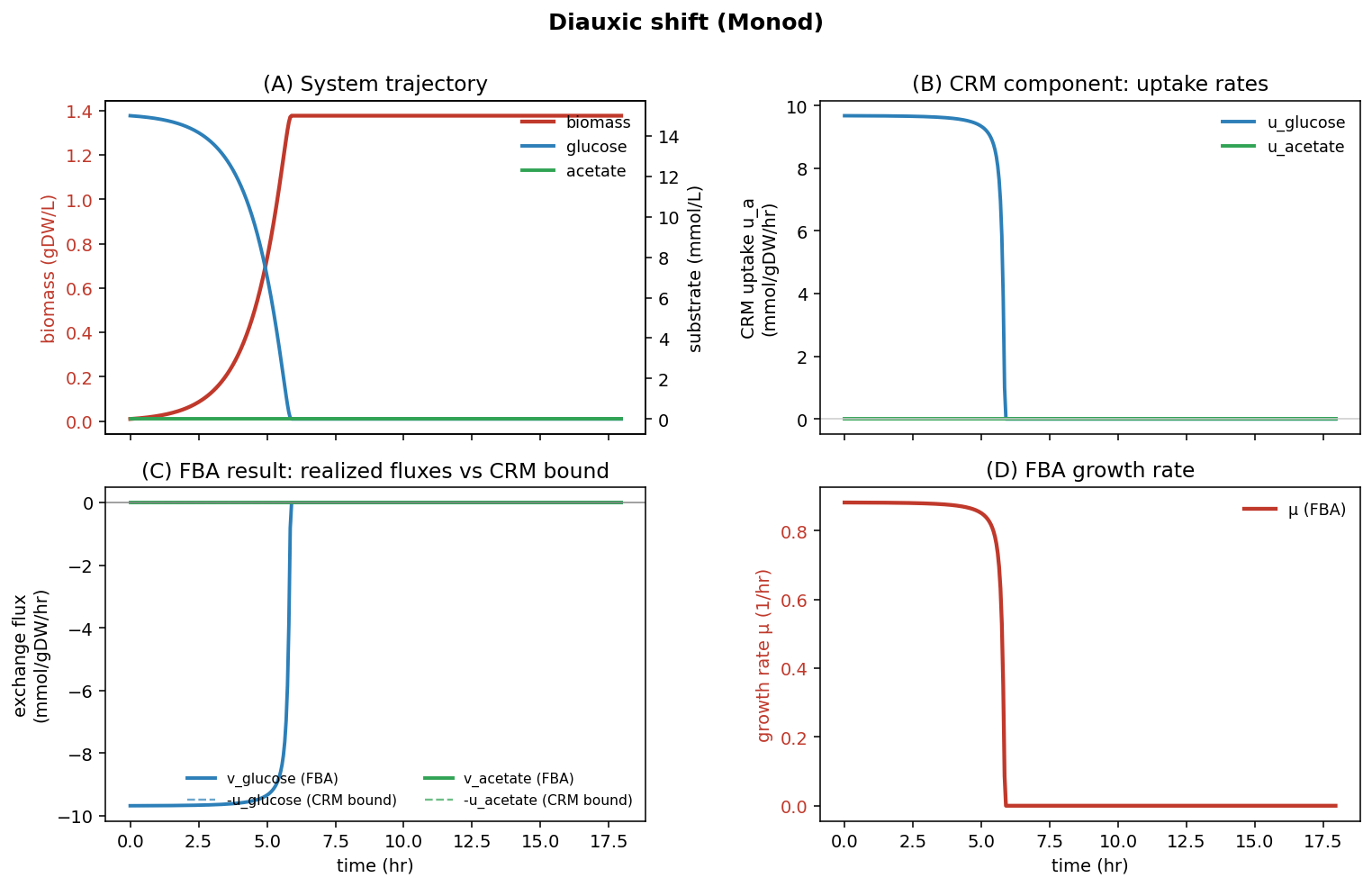

Classical Monod CRM coupled to the E. coli core GSM. With high initial glucose, FBA preferentially oxidizes glucose and secretes some acetate. Once glucose is depleted, the Monod uptake rate on acetate becomes non-negligible and FBA switches to acetate consumption — the canonical diauxic shift.

Result

Composition

Summary

Phenomenon	Sequential substrate utilization
GSM	`textbook` — Escherichia coli (core GSM, 95 rxns) biomass reaction: `Biomass_Ecoli_core`
CRM	`monod`
Integration	360 steps × 0.05 hr = 18.0 hr simulated
Wall-clock time	0.21 s
Final biomass	1.377 gDW/L
Final glucose	0.000 mmol/L
Final acetate	0.000 mmol/L
Peak μ (FBA)	0.882 1/hr
Peak glucose CRM→FBA	u=9.68 · \|v\|=9.68 mmol/gDW/hr

Configuration

model_file        = 'textbook'   # Escherichia coli (core GSM, 95 rxns)
biomass_reaction  = 'Biomass_Ecoli_core'
crm.type          = monod
crm.params        = {'kinetic_params': {'glucose': (0.5, 10.0), 'acetate': (0.5, 3.0)}}
substrate_update_reactions = {'glucose': 'EX_glc__D_e', 'acetate': 'EX_ac_e'}
bounds            = {'EX_o2_e': {'lower': -20.0, 'upper': 1000.0}, 'ATPM': {'lower': 1.0, 'upper': 1.0}}

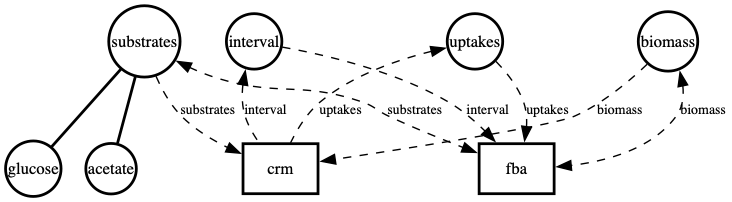

Composite Document

Overflow

Crabtree-like acetate secretion · CRM: macarthur

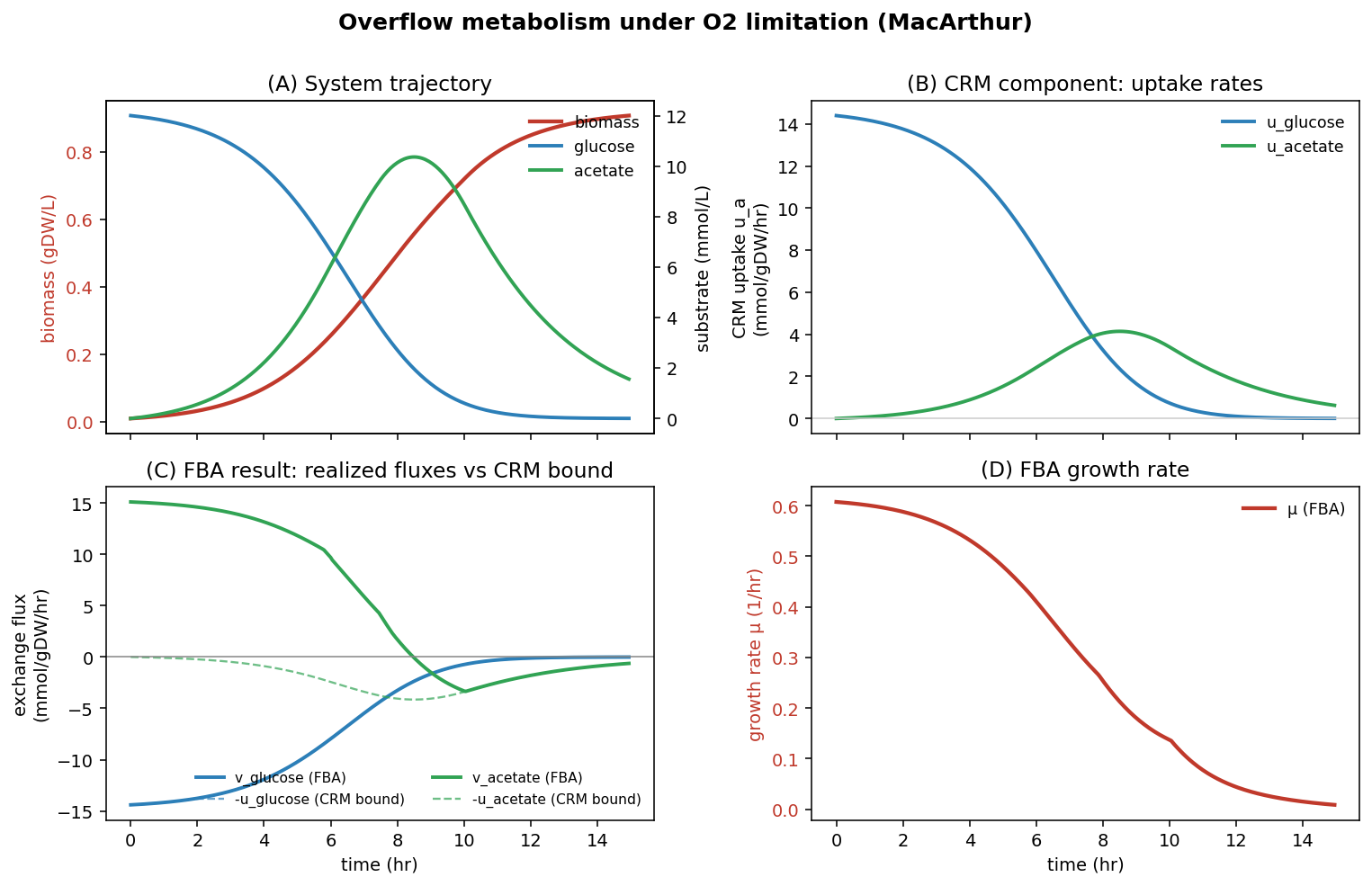

MacArthur external-resource CRM drives glucose uptake while the oxygen exchange is tightly capped (EX_o2_e lower = -5). Under O2 limitation the LP cannot fully oxidize the influx and secretes acetate as overflow — a Crabtree-like phenotype — even though no acetate was initially present.

Result

Composition

Summary

Phenomenon	Crabtree-like acetate secretion
GSM	`textbook` — Escherichia coli (core GSM, 95 rxns) biomass reaction: `Biomass_Ecoli_core`
CRM	`macarthur`
Integration	300 steps × 0.05 hr = 15.0 hr simulated
Wall-clock time	0.10 s
Final biomass	0.908 gDW/L
Final glucose	0.003 mmol/L
Final acetate	1.562 mmol/L
Peak μ (FBA)	0.608 1/hr
Peak glucose CRM→FBA	u=14.40 · \|v\|=14.40 mmol/gDW/hr
Peak acetate CRM→FBA	u=4.14 · \|v\|=3.35 mmol/gDW/hr

Configuration

model_file        = 'textbook'   # Escherichia coli (core GSM, 95 rxns)
biomass_reaction  = 'Biomass_Ecoli_core'
crm.type          = macarthur
crm.params        = {'c': {'glucose': 1.2, 'acetate': 0.4}, 'resource_mode': 'external'}
substrate_update_reactions = {'glucose': 'EX_glc__D_e', 'acetate': 'EX_ac_e'}
bounds            = {'EX_o2_e': {'lower': -5.0, 'upper': 1000.0}, 'ATPM': {'lower': 1.0, 'upper': 1.0}}

Composite Document

Adaptive

Dynamic trait reallocation · CRM: adaptive

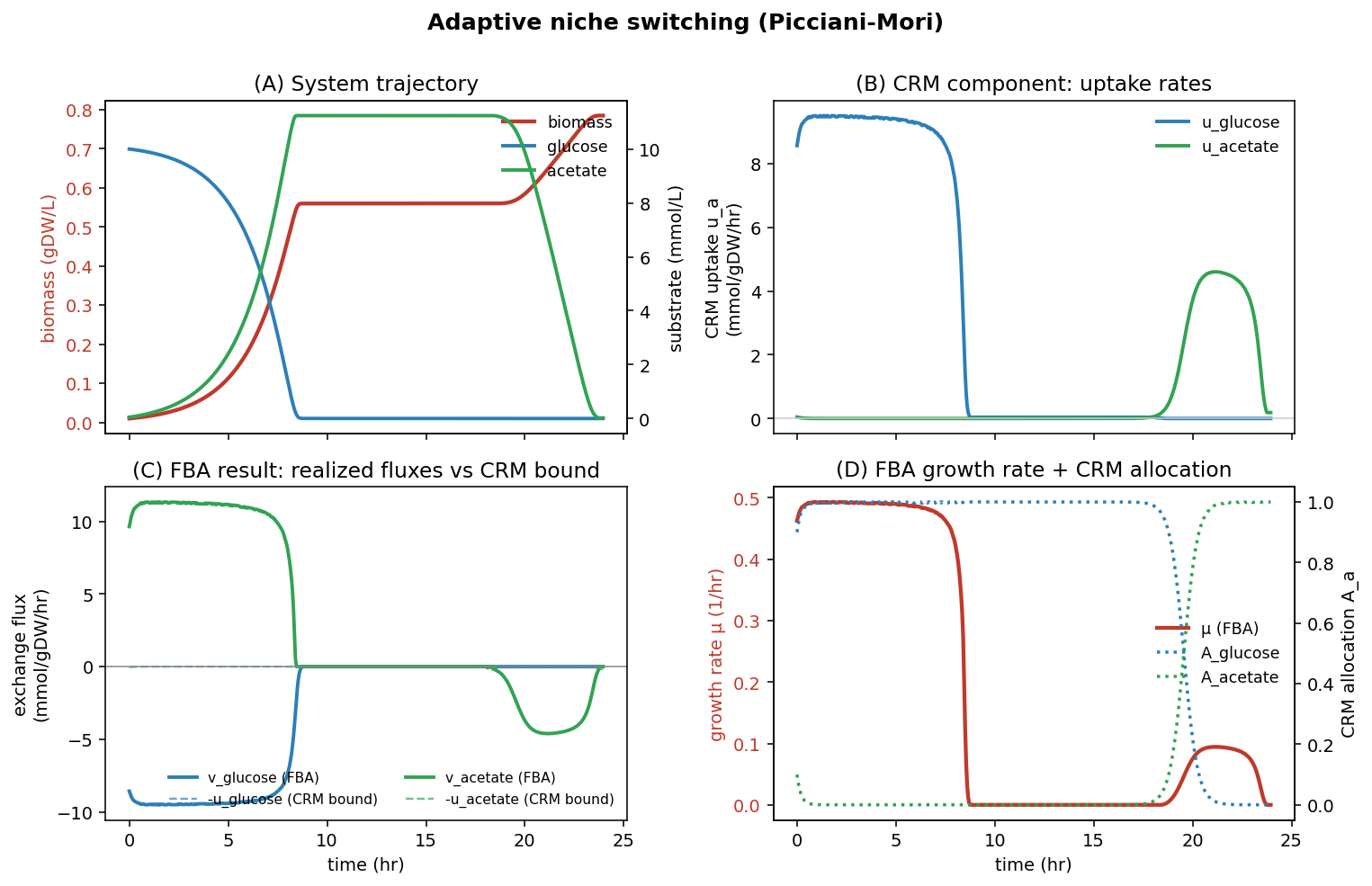

Adaptive CRM with an internal allocation vector A_a per resource, constrained by an energy budget E_star. Initial allocation is skewed to glucose (A0=[0.95, 0.05]) and the oxygen exchange is capped so FBA secretes acetate as overflow while glucose is abundant. Once glucose depletes, r_glucose → 0 so the gradient on A_glucose vanishes while A_acetate keeps climbing under the Picciani-Mori rule — the allocation vector reallocates toward acetate and growth continues on the acetate pool that the cell itself produced.

Result

Composition

Summary

Phenomenon	Dynamic trait reallocation
GSM	`textbook` — Escherichia coli (core GSM, 95 rxns) biomass reaction: `Biomass_Ecoli_core`
CRM	`adaptive`
Integration	480 steps × 0.05 hr = 24.0 hr simulated
Wall-clock time	0.37 s
Final biomass	0.784 gDW/L
Final glucose	0.000 mmol/L
Final acetate	0.019 mmol/L
Peak μ (FBA)	0.493 1/hr
Peak glucose CRM→FBA	u=9.51 · \|v\|=9.51 mmol/gDW/hr
Peak acetate CRM→FBA	u=4.61 · \|v\|=4.61 mmol/gDW/hr

Configuration

model_file        = 'textbook'   # Escherichia coli (core GSM, 95 rxns)
biomass_reaction  = 'Biomass_Ecoli_core'
crm.type          = adaptive
crm.params        = {'v': {'glucose': 10.0, 'acetate': 5.0}, 'K': {'glucose': 0.5, 'acetate': 0.5}, 'lam': 0.6, 'E_star': 1.0, 'A0': {'glucose': 0.9, 'acetate': 0.1}, 'n_substeps': 50}
substrate_update_reactions = {'glucose': 'EX_glc__D_e', 'acetate': 'EX_ac_e'}
bounds            = {'EX_o2_e': {'lower': -6.0, 'upper': 1000.0}, 'ATPM': {'lower': 1.0, 'upper': 1.0}}

Composite Document

Tilman

R-independent uptake · CRM: macarthur

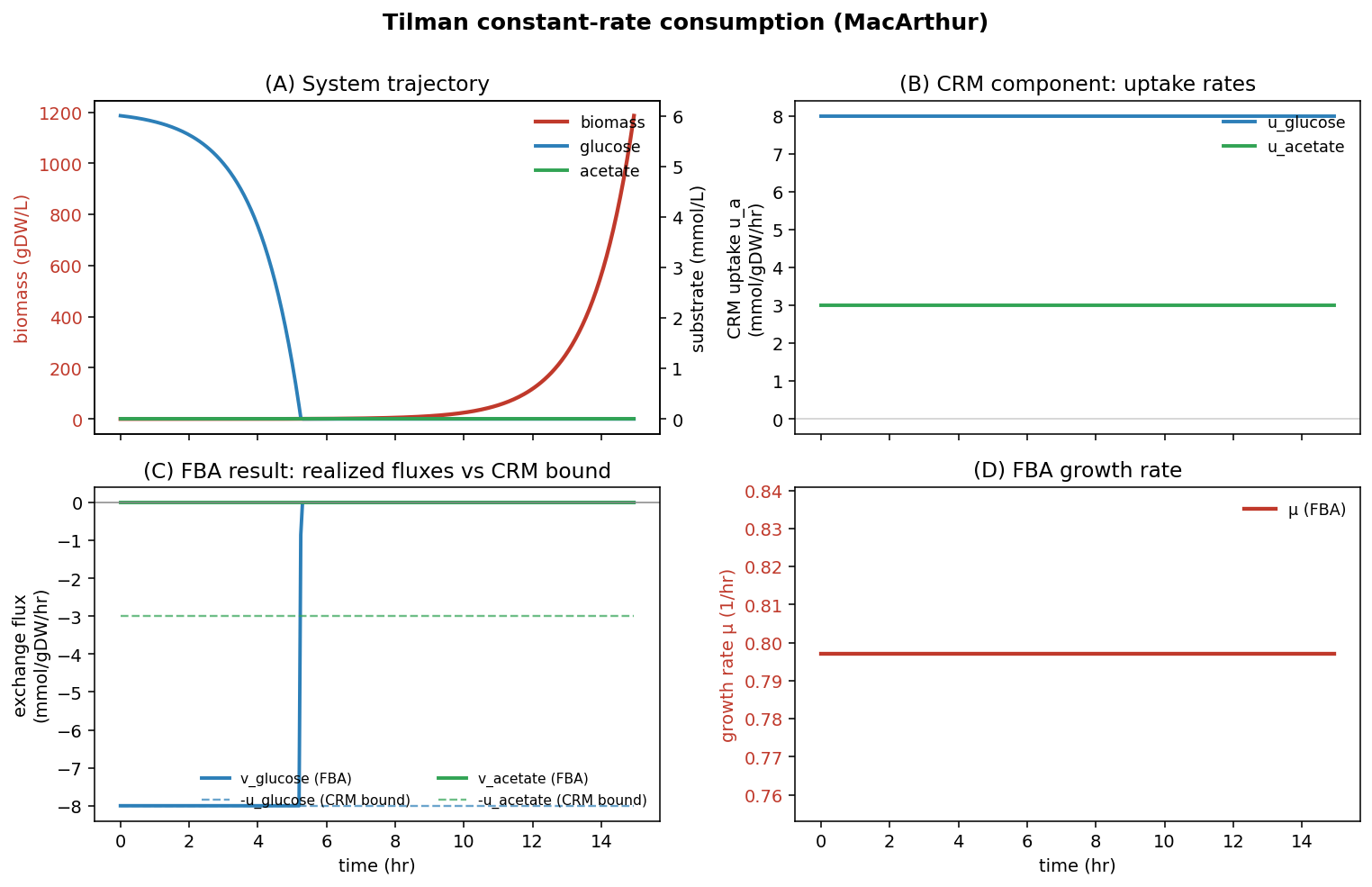

MacArthur CRM in 'tilman' mode: uptake rate u_a = c_a is independent of R_a. FBA drives glucose hard and at a constant rate until the extracellular concentration is exhausted, giving a sharply-cornered depletion profile characteristic of Tilman-style resource competition.

Result

Composition

Summary

Phenomenon	R-independent uptake
GSM	`textbook` — Escherichia coli (core GSM, 95 rxns) biomass reaction: `Biomass_Ecoli_core`
CRM	`macarthur`
Integration	300 steps × 0.05 hr = 15.0 hr simulated
Wall-clock time	0.10 s
Final biomass	1185.977 gDW/L
Final glucose	0.000 mmol/L
Final acetate	0.000 mmol/L
Peak μ (FBA)	0.797 1/hr
Peak glucose CRM→FBA	u=8.00 · \|v\|=8.00 mmol/gDW/hr
Peak acetate CRM→FBA	u=3.00 · \|v\|=0.00 mmol/gDW/hr

Configuration

model_file        = 'textbook'   # Escherichia coli (core GSM, 95 rxns)
biomass_reaction  = 'Biomass_Ecoli_core'
crm.type          = macarthur
crm.params        = {'c': {'glucose': 8.0, 'acetate': 3.0}, 'resource_mode': 'tilman'}
substrate_update_reactions = {'glucose': 'EX_glc__D_e', 'acetate': 'EX_ac_e'}
bounds            = {'EX_o2_e': {'lower': -20.0, 'upper': 1000.0}, 'ATPM': {'lower': 1.0, 'upper': 1.0}}

Composite Document

Cross Feed

Metabolic leakage and re-uptake · CRM: micrm

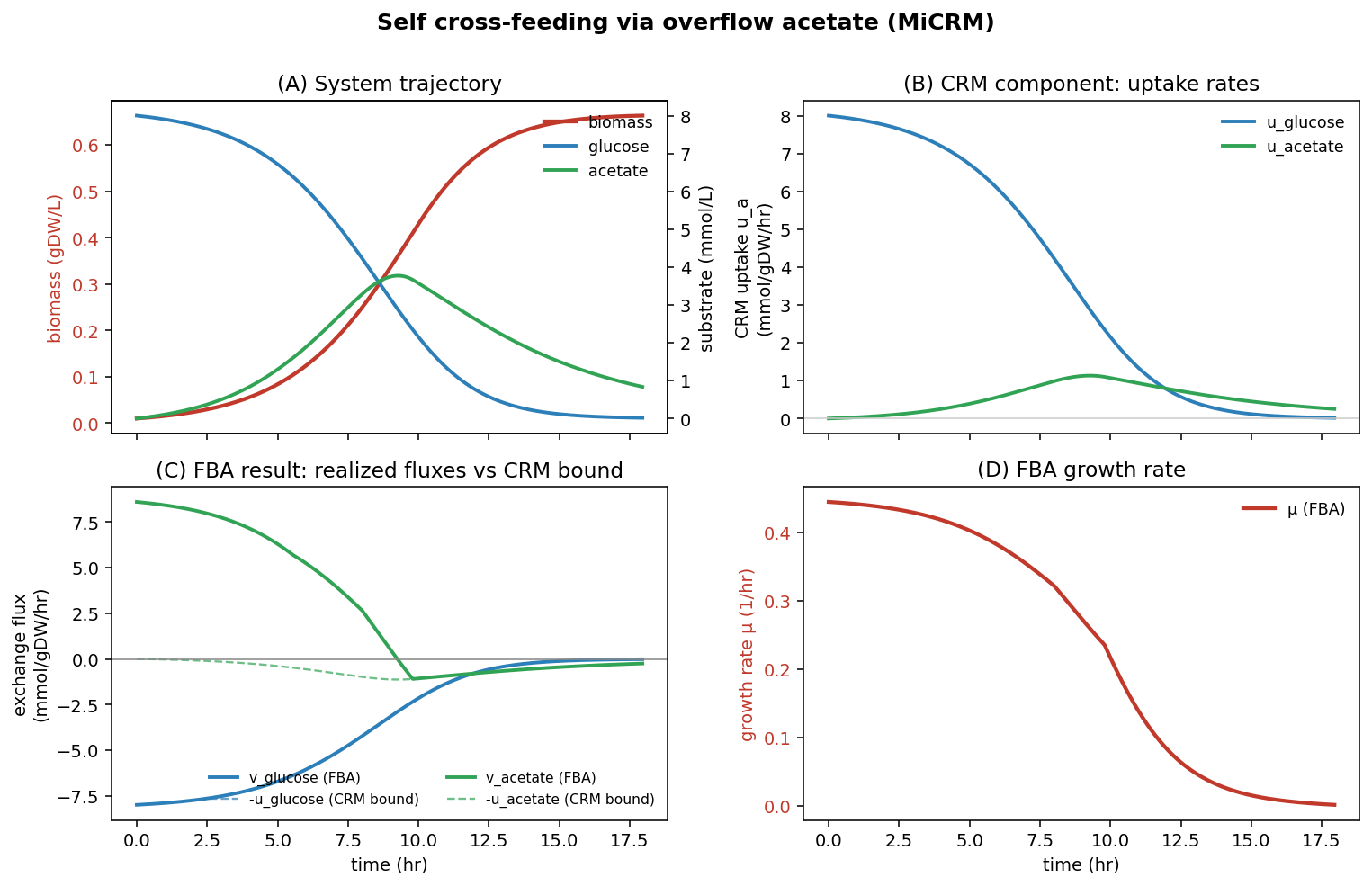

MiCRM-style mass-action uptake of glucose and acetate on a single organism. FBA secretes acetate as a byproduct while glucose is abundant (positive extracellular acetate trajectory); once glucose drops, the accumulated acetate pool supports a second growth phase — a single-species analogue of community cross-feeding.

Result

Composition

Summary

Phenomenon	Metabolic leakage and re-uptake
GSM	`textbook` — Escherichia coli (core GSM, 95 rxns) biomass reaction: `Biomass_Ecoli_core`
CRM	`micrm`
Integration	360 steps × 0.05 hr = 18.0 hr simulated
Wall-clock time	0.12 s
Final biomass	0.663 gDW/L
Final glucose	0.016 mmol/L
Final acetate	0.836 mmol/L
Peak μ (FBA)	0.444 1/hr
Peak glucose CRM→FBA	u=8.00 · \|v\|=8.00 mmol/gDW/hr
Peak acetate CRM→FBA	u=1.13 · \|v\|=1.10 mmol/gDW/hr

Configuration

model_file        = 'textbook'   # Escherichia coli (core GSM, 95 rxns)
biomass_reaction  = 'Biomass_Ecoli_core'
crm.type          = micrm
crm.params        = {'c': {'glucose': 1.0, 'acetate': 0.3}}
substrate_update_reactions = {'glucose': 'EX_glc__D_e', 'acetate': 'EX_ac_e'}
bounds            = {'EX_o2_e': {'lower': -6.0, 'upper': 1000.0}, 'ATPM': {'lower': 1.0, 'upper': 1.0}}

Composite Document

Nutrient Sweep

Saturating yield curve · CRM: monod

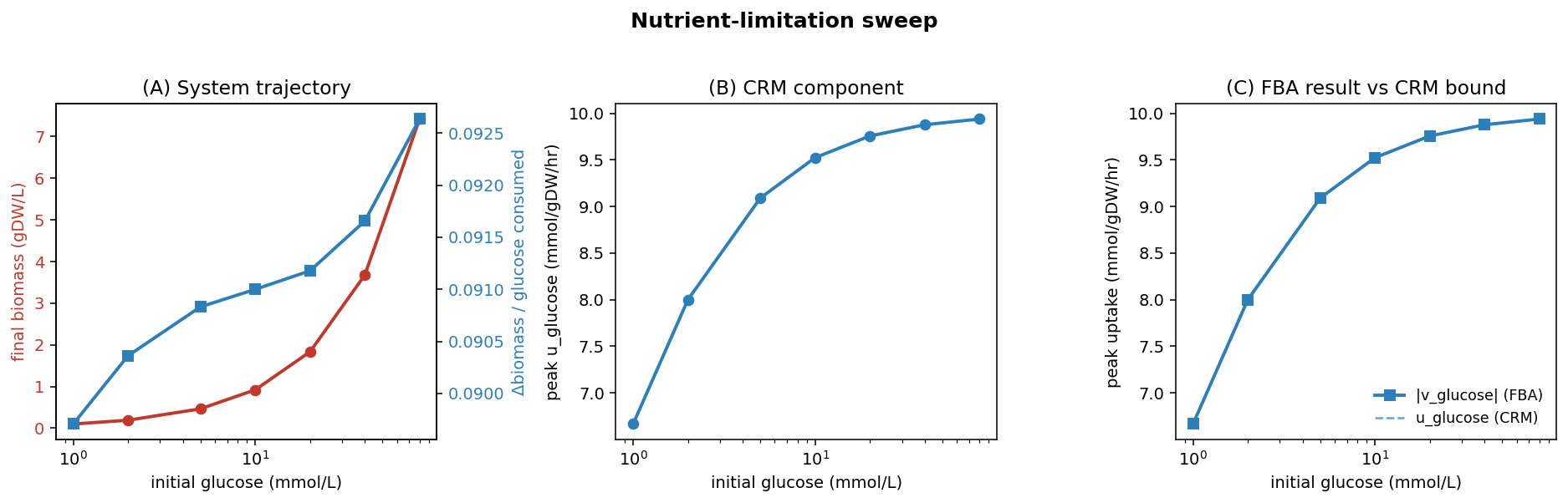

Sweep over initial glucose (1-80 mmol/L) with the Monod diauxie setup. Plot final biomass and apparent biomass yield per mmol glucose consumed. Biomass saturates with resource availability; apparent yield drops at high glucose as more carbon exits as acetate/CO2 overflow.

Result

Composition

Summary

Phenomenon	Saturating yield curve
GSM	`textbook` — Escherichia coli (core GSM, 95 rxns) biomass reaction: `Biomass_Ecoli_core`
CRM	`monod`
Integration	240 steps × 0.05 hr = 12.0 hr simulated
Wall-clock time	1.24 s
Range	glucose0 ∈ [1.0, 80.0] mmol/L (7 points)
Biomass range	0.099 → 7.421 gDW/L

Configuration

model_file        = 'textbook'   # Escherichia coli (core GSM, 95 rxns)
biomass_reaction  = 'Biomass_Ecoli_core'
crm.type          = monod
crm.params        = {'kinetic_params': {'glucose': (0.5, 10.0), 'acetate': (0.5, 3.0)}}
substrate_update_reactions = {'glucose': 'EX_glc__D_e', 'acetate': 'EX_ac_e'}
bounds            = {'EX_o2_e': {'lower': -20.0, 'upper': 1000.0}, 'ATPM': {'lower': 1.0, 'upper': 1.0}}

Composite Document

Community

Niche differentiation and cross-feeding · CRM: monod

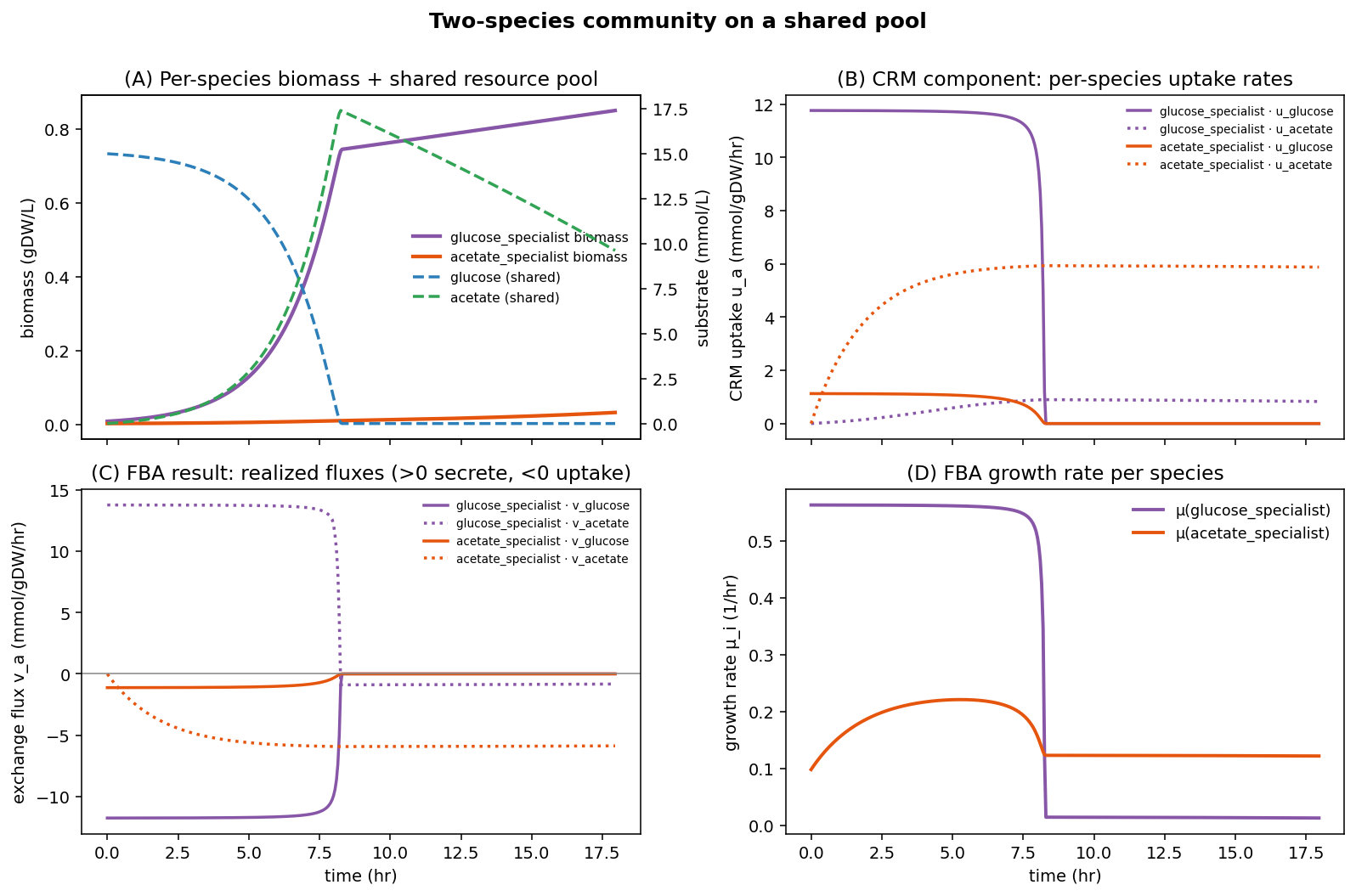

Two E. coli core GSMs share a single glucose+acetate pool with no spatial separation. Species 'glucose_specialist' has a strong Monod preference for glucose (high Vmax_glc, low Vmax_ac) and a tight O2 cap that forces acetate overflow. Species 'acetate_specialist' has low glucose affinity and high acetate Vmax. Early on the glucose specialist dominates, secreting acetate; the acetate specialist then grows on the acetate byproduct — niche partitioning by cross-feeding, visible as two offset growth phases on the same GSM.

Result

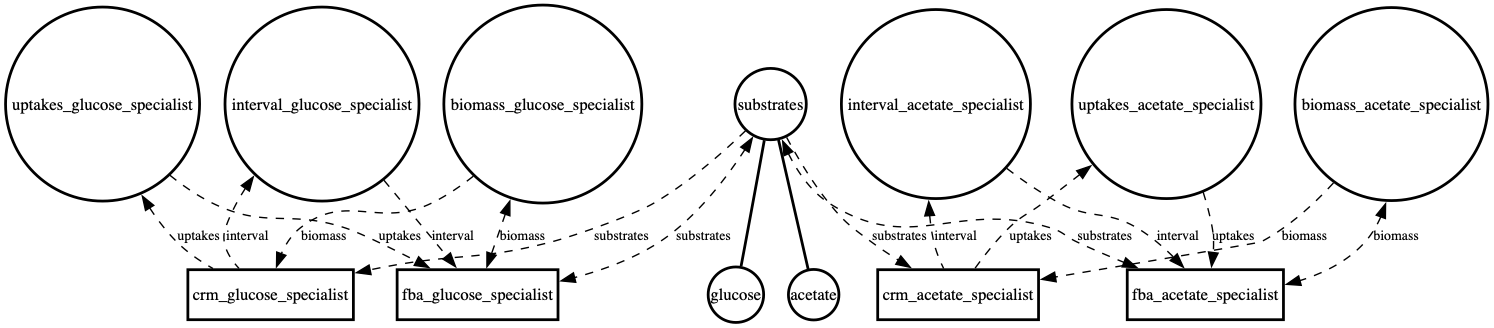

Composition

Summary

Phenomenon	Niche differentiation and cross-feeding
GSM (glucose_specialist)	`textbook` — Escherichia coli (core GSM, 95 rxns) biomass reaction: `Biomass_Ecoli_core`
GSM (acetate_specialist)	`textbook` — Escherichia coli (core GSM, 95 rxns) biomass reaction: `Biomass_Ecoli_core`
CRM	`monod`
Integration	360 steps × 0.05 hr = 18.0 hr simulated
Wall-clock time	0.24 s
Final biomass (glucose_specialist)	0.850 gDW/L · peak μ = 0.563 1/hr
Final biomass (acetate_specialist)	0.032 gDW/L · peak μ = 0.221 1/hr
Final glucose (shared pool)	0.000 mmol/L
Final acetate (shared pool)	9.620 mmol/L

Configuration

# glucose_specialist
model_file        = 'textbook'   # Escherichia coli (core GSM, 95 rxns)
biomass_reaction  = 'Biomass_Ecoli_core'
crm.type          = monod
crm.params        = {'kinetic_params': {'glucose': (0.3, 12.0), 'acetate': (2.0, 1.0)}}
substrate_update_reactions = {'glucose': 'EX_glc__D_e', 'acetate': 'EX_ac_e'}
bounds            = {'EX_o2_e': {'lower': -6.0, 'upper': 1000.0}, 'ATPM': {'lower': 1.0, 'upper': 1.0}}

# acetate_specialist
model_file        = 'textbook'   # Escherichia coli (core GSM, 95 rxns)
biomass_reaction  = 'Biomass_Ecoli_core'
crm.type          = monod
crm.params        = {'kinetic_params': {'glucose': (5.0, 1.5), 'acetate': (0.2, 6.0)}}
substrate_update_reactions = {'glucose': 'EX_glc__D_e', 'acetate': 'EX_ac_e'}
bounds            = {'EX_o2_e': {'lower': -20.0, 'upper': 1000.0}, 'ATPM': {'lower': 1.0, 'upper': 1.0}}

Composite Document

Run Summary

Experiment	Phenomenon	CRM	GSM	Sim time	Wall-clock
Diauxie	Sequential substrate utilization	`monod`	`textbook`	18.0 h	0.21 s
Overflow	Crabtree-like acetate secretion	`macarthur`	`textbook`	15.0 h	0.10 s
Adaptive	Dynamic trait reallocation	`adaptive`	`textbook`	24.0 h	0.37 s
Tilman	R-independent uptake	`macarthur`	`textbook`	15.0 h	0.10 s
Cross Feed	Metabolic leakage and re-uptake	`micrm`	`textbook`	18.0 h	0.12 s
Nutrient Sweep	Saturating yield curve	`monod`	`textbook`	12.0 h	1.24 s
Community	Niche differentiation and cross-feeding	`monod`	`textbook, textbook`	18.0 h	0.24 s
Total wall-clock					2.38 s

How to reproduce

Every experiment in this report is generated by the same CLI (crm_dfba.experiments.test_suite) running against the genome-scale metabolic models bundled under crm_dfba/models/. Clone the repo and run the suite to regenerate this page.

Re-run locally

git clone https://github.com/vivarium-collective/CRM-FBA
cd CRM-FBA
git checkout 936698b1
pip install -e .
python -m crm_dfba.experiments.test_suite

Subset / headless

python -m crm_dfba.experiments.test_suite --only diauxie community
python -m crm_dfba.experiments.test_suite --no-open

Author a new experiment

Add an Experiment(...) entry to EXPERIMENT_REGISTRY in crm_dfba/experiments/test_suite.py. Point build_cfg at a CRM+GSM config (helper _cfg_from(model_key, crm, bounds) uses the bundled model registry). For multi-consumer experiments set runner_override=_simulate_community and list species in extra_meta['species'].
