Spatio–Flux Test Suite Report

Browse a suite of runnable composites, inspect their structure, and explore the emitted state and dynamics.

About / Overview

Explore the Spatio–Flux test suite

This page is a catalog of executable compositions built with the Process Bigraph protocol. Each entry below is a self-contained simulation that demonstrates how distinct modeling concerns—metabolism, spatial transport, particle dynamics, and structural change—can be composed through explicit interfaces and shared state.

Rather than presenting biological conclusions, the goal of this test suite is to make model structure visible and inspectable. Clicking into a simulation lets you see how it is built: which processes are present, how they are wired to state, and how different process families combine to form more complex behaviors.

Bigraph structure

Inspect a rendered process–bigraph showing state variables, processes, and their read/write dependencies.

Interactive state

Browse serialized state trees to explore spatial fields, particles, and intermediate variables.

Dynamics & behavior

View plots and animations illustrating spatial gradients, particle motion, growth, and division.

Composition documents

Download the machine-readable process–bigraph documents that define each simulation.

Scroll down to explore individual compositions, or use the Contents section to jump to a simulation.

Spatio–Flux process families

Think of these as lego bricks for multiscale simulation. Each family does one thing well—metabolism, transport, motion, coupling, or structural change— and complex behaviors emerge by composing families rather than extending any single process.

Family Color Processes Role
Metabolic processes
 Metabolism DynamicFBA MonodKinetics SpatialDFBA Turns nutrients into growth. Computes uptake, secretion, and biomass production either at individual sites or across spatial grids by operating on substrate fields and biomass variables.
Field transport
 Transport DiffusionAdvection Makes space matter. Updates dissolved species fields via diffusion and advection, so local metabolic activity can influence distant regions over time.
Particle movement
 Movement BrownianMovement PymunkParticleMovement Moves agents through continuous space. Brownian motion provides stochastic movement; Newtonian motion adds mass, velocity, inertia, friction, and elastic interactions.
Particle–field coupling
 Coupling ParticleExchange Bridges discrete and continuous. Mediates bidirectional exchange between particle-local state and spatial fields, syncing internal particle chemistry with nearby lattice values.
Structural and boundary processes
 Rewrite ParticleDivision ManageBoundaries Changes the population. Rewrites the particle store by creating, removing, or relocating particles in response to conditions like growth thresholds or boundary crossings.

Vivarium 2.0 ecosystem

Spatio–Flux is a reference application in the Vivarium 2.0 software suite: an open-source ecosystem for building, executing, and visualizing Process–Bigraph compositions.

  • bigraph-schema — Defines a compositional type system and hierarchical data structures using JSON-based schemas. Provides the type engine, schema compilation, state validation, and type-specific update operators used in process–bigraph delta semantics.
  • process-bigraph — The dynamic core. Defines typed Process and Composite abstractions, event scheduling, global time management, and orchestration logic for executing process–bigraph documents.
  • bigraph-viz — Parses process–bigraph documents and renders their structure as inspectable graphs.
  • spatio-flux — A domain-specific application repository implementing concrete process families for metabolism, spatial fields, particle dynamics, and particle–field coupling, with an extended test suite of executable compositions.

References

Total sim time: 96.311s Generated: 2026-08-15T07:38:11

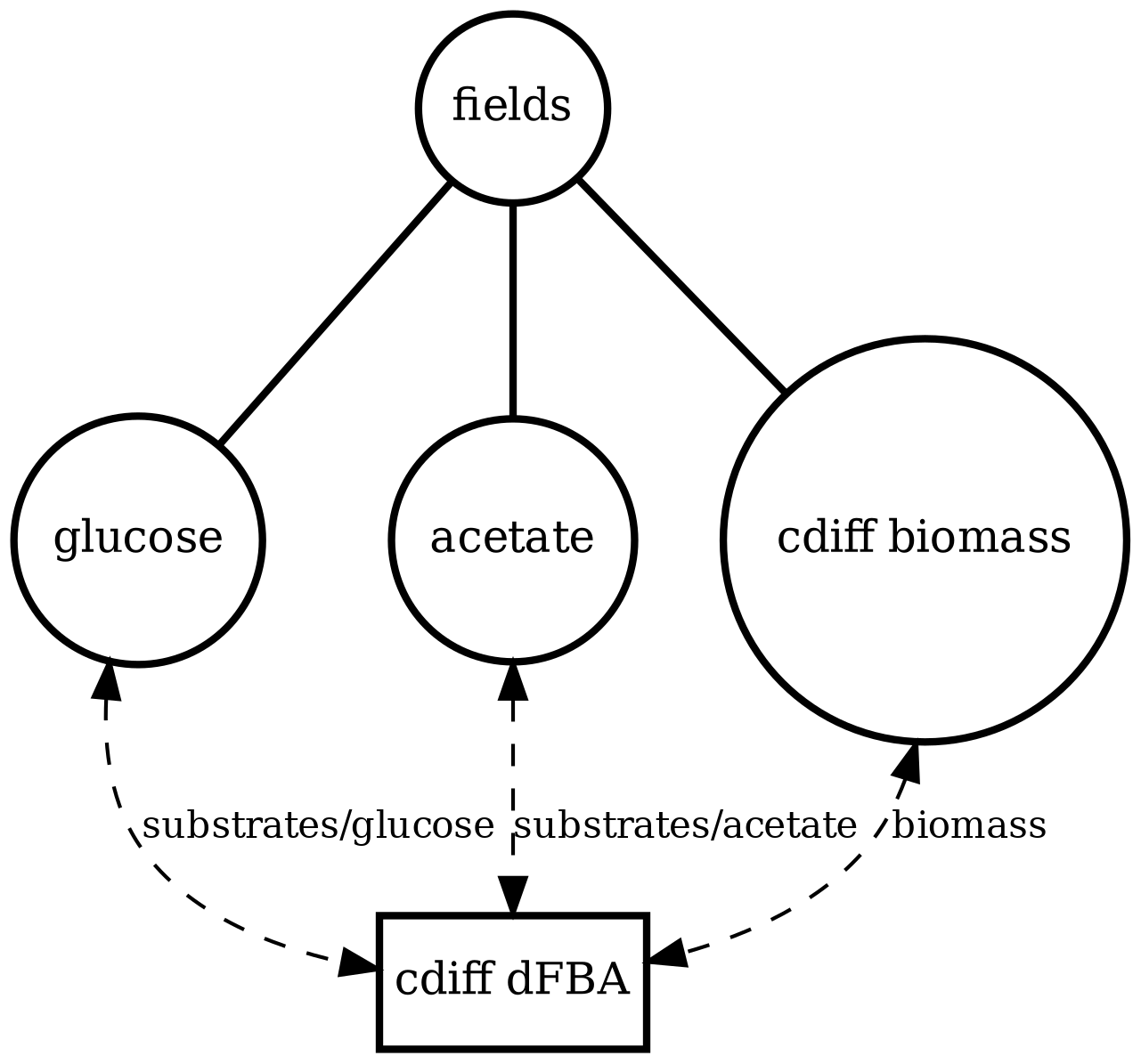

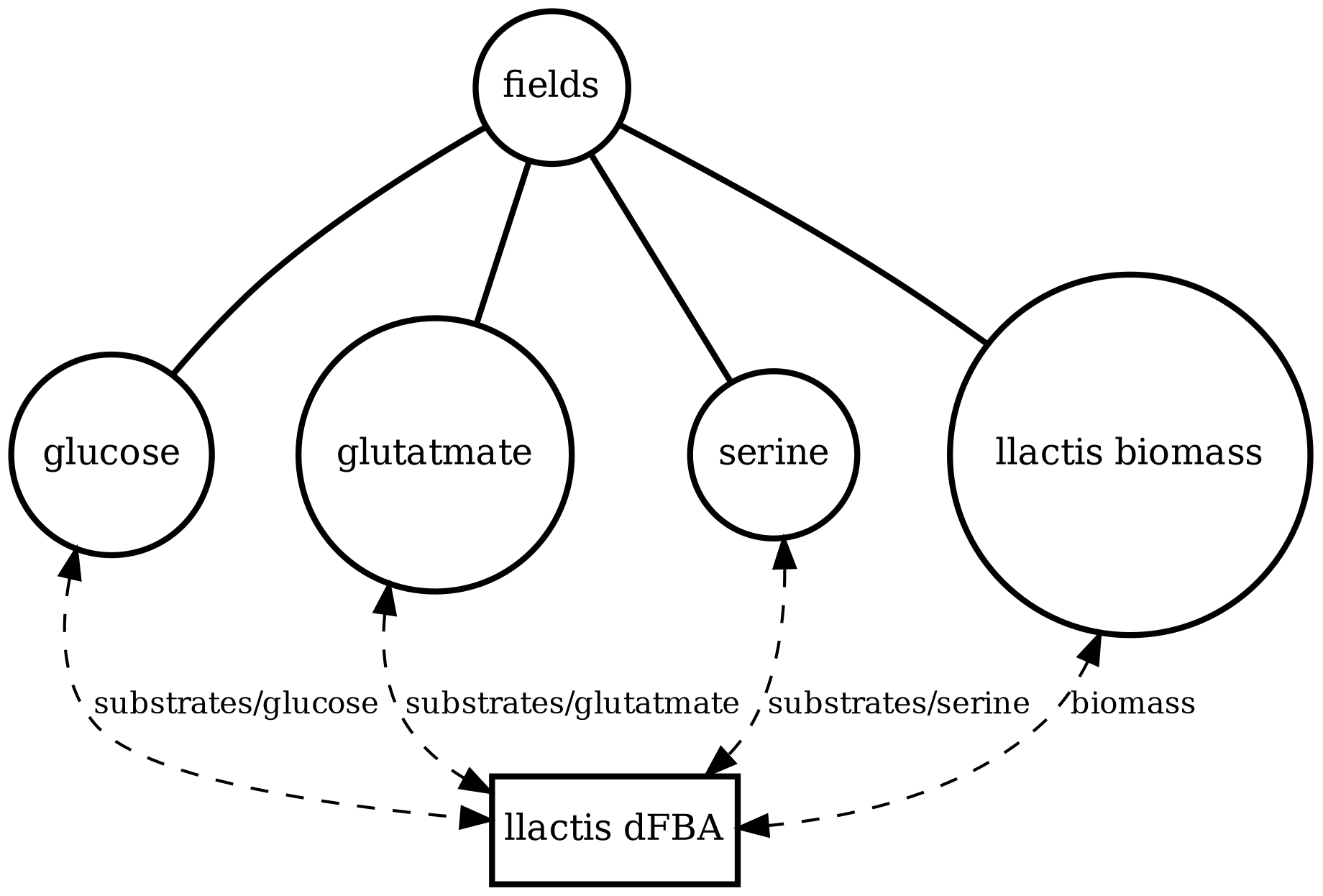

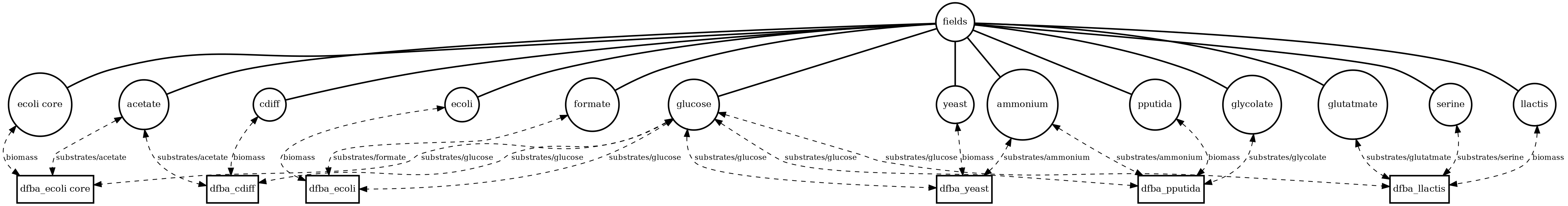

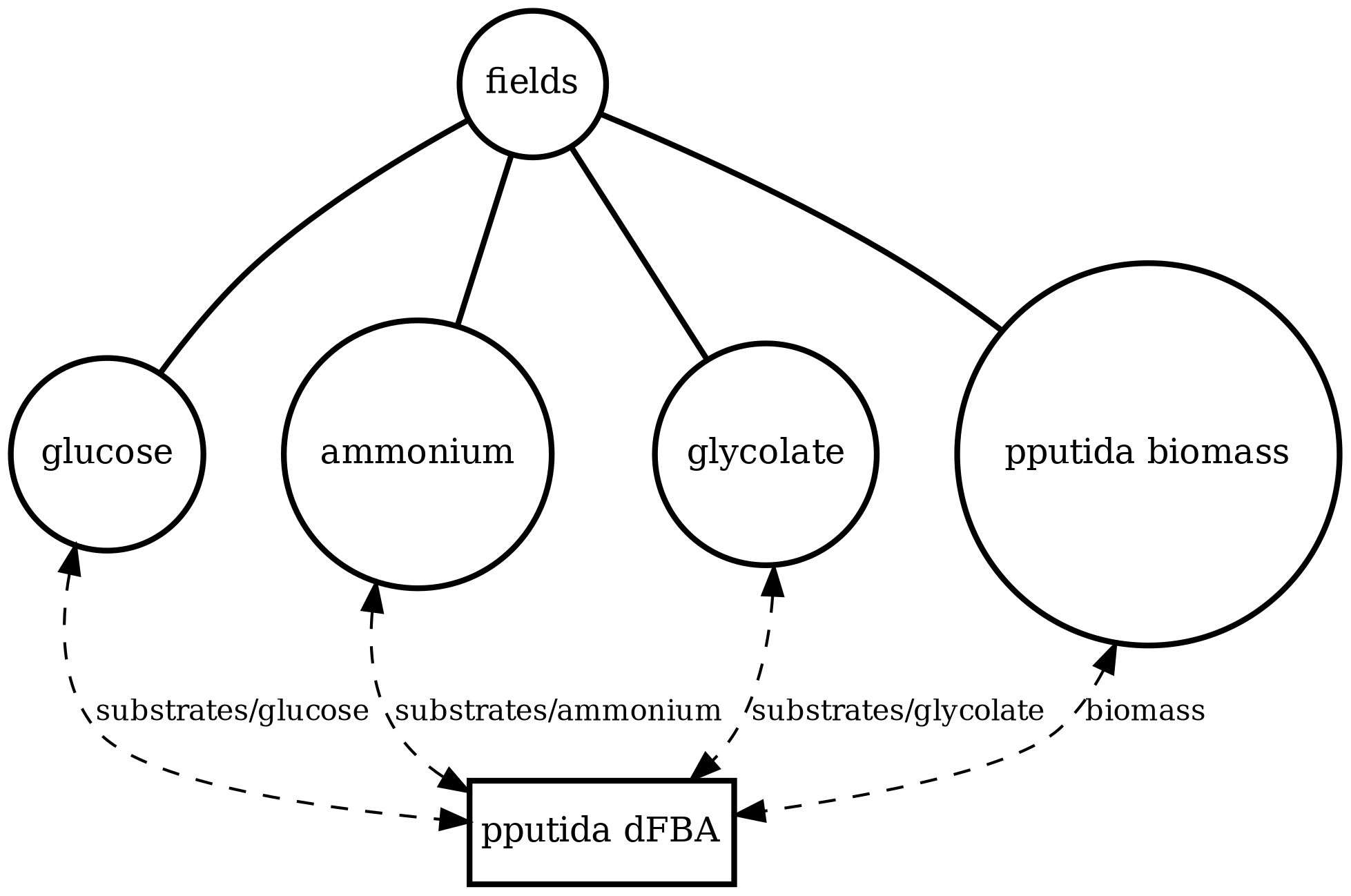

How to read the bigraph visualization

Each diagram is a map of a composite simulation: what state exists, what processes run, and how data flows between them.

1) Nodes

Circles are state (variables or structured stores). Boxes are processes (update rules that run on a schedule).

2) Edges

Edges show read/write dependency: a process reads state to compute updates, and writes deltas back into state.

3) Hierarchy

Big nodes often contain nested nodes. That nesting reflects the hierarchical state tree (e.g., collections, sub-stores, or typed substructures).

4) A quick way to scan

Start by locating the main stores (large circles), then follow edges into the processes that touch them. The “story” is the loop: state → process → state.

Tip: If a diagram feels busy, focus on one store (fields or particles), then trace only the processes connected to it. The report sections below let you compare structure (bigraph), serialized state (JSON viewer), and behavior (plots/GIFs) side-by-side.

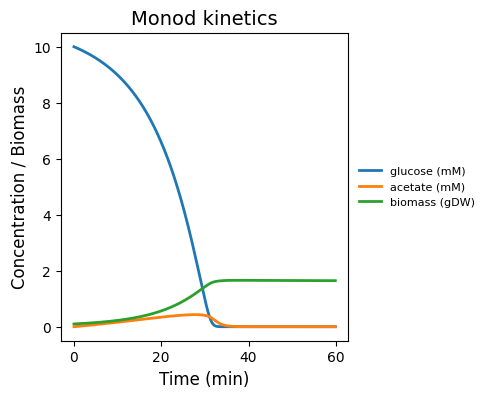

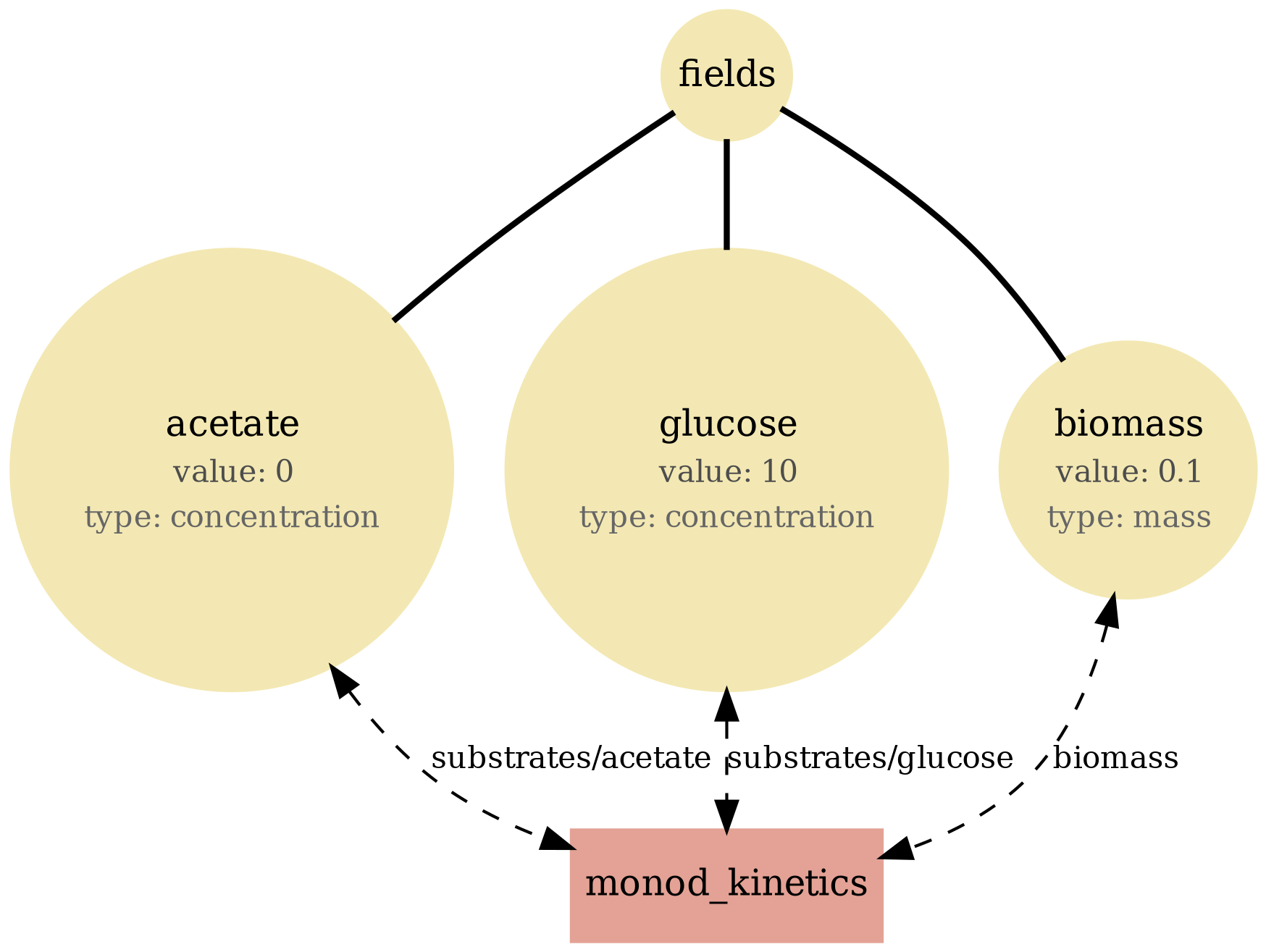

monod_kinetics

Monod uptake and growth kinetics on a well-mixed pool of glucose and acetate — the simplest field-only metabolism model, with no spatial lattice or particles.

Runtime: 0.036s (process: 0.004s, framework: 0.031s)

monod_kinetics_state.json

View full JSON

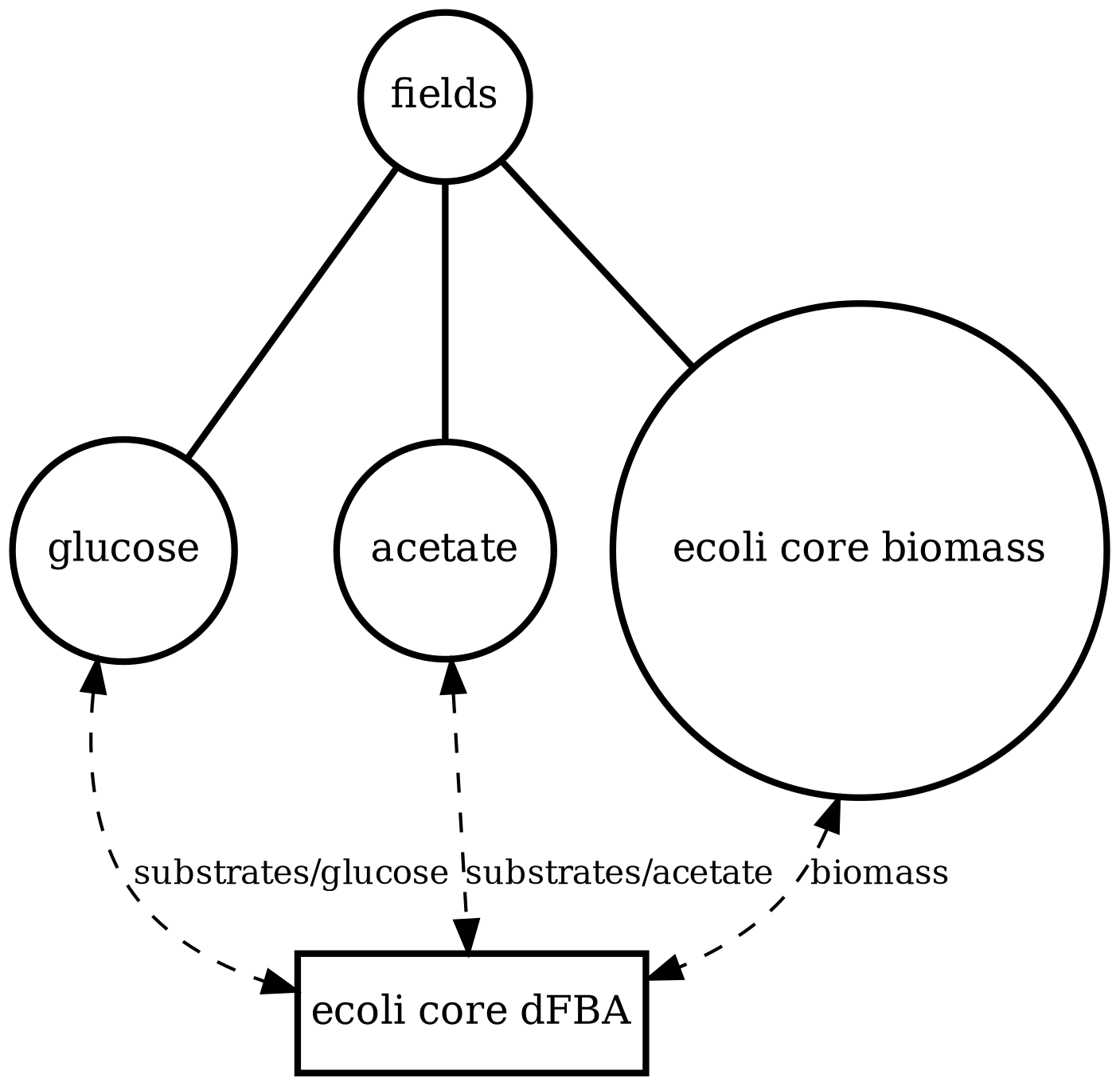

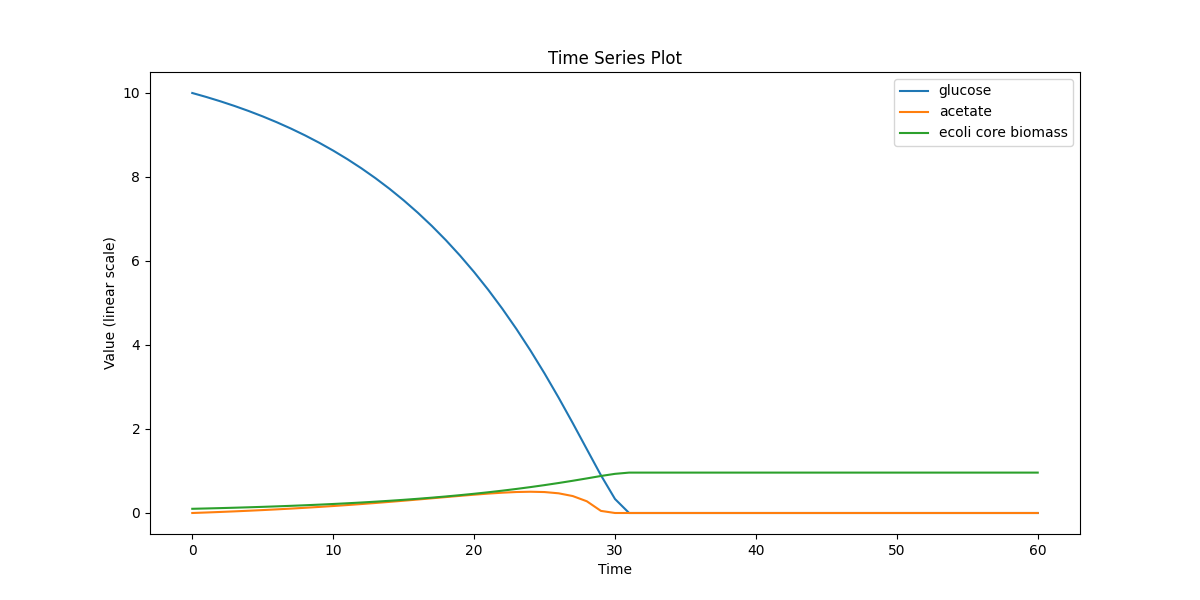

ecoli_core_dfba

Dynamic FBA of a single E. coli core cell in a well-mixed medium, tracking extracellular glucose and acetate as biomass grows — the simplest single-cell metabolism model, with no space or particles.

Runtime: 0.079s (process: 0.065s, framework: 0.014s)

ecoli_core_dfba_state.json

View full JSON

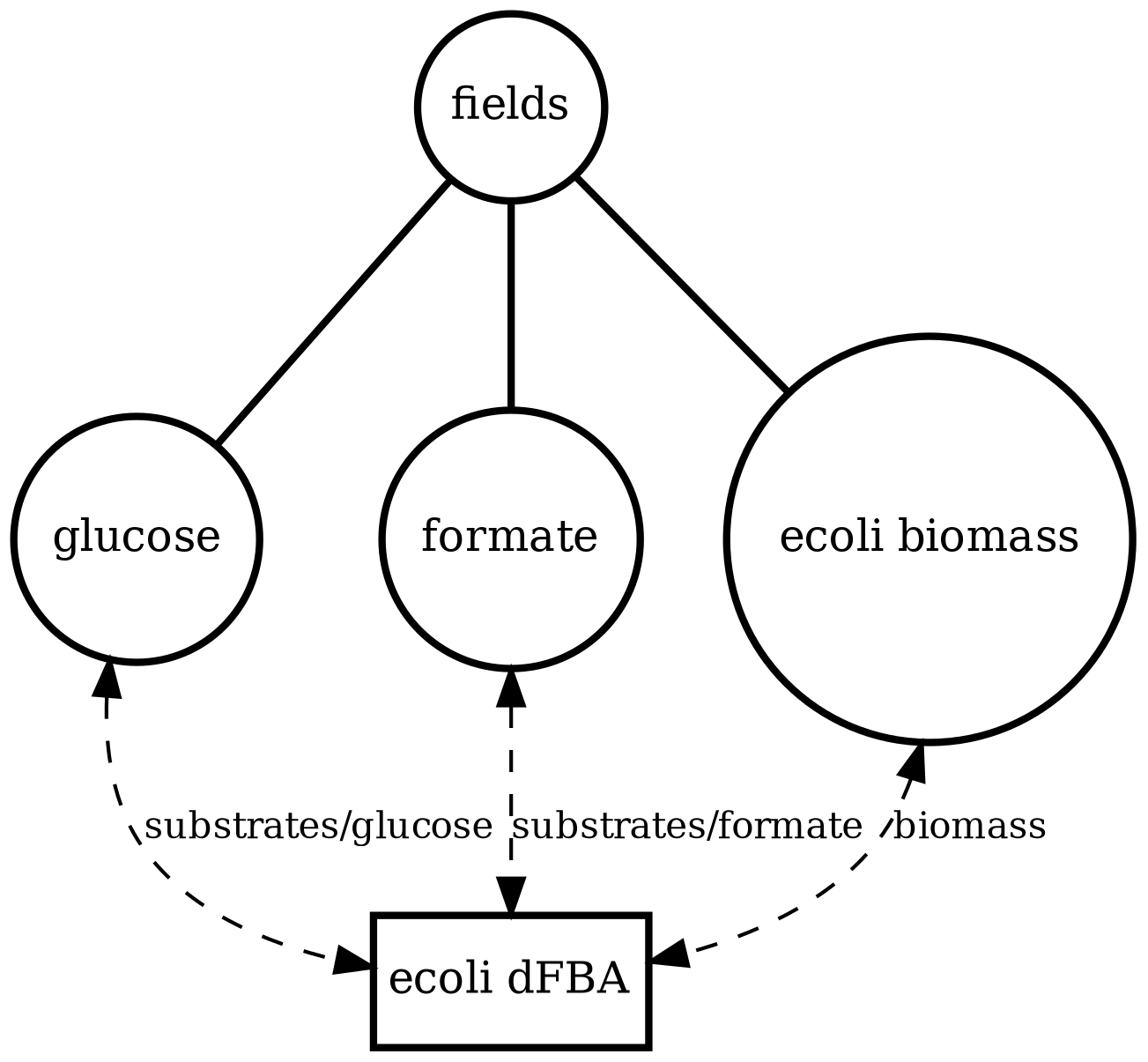

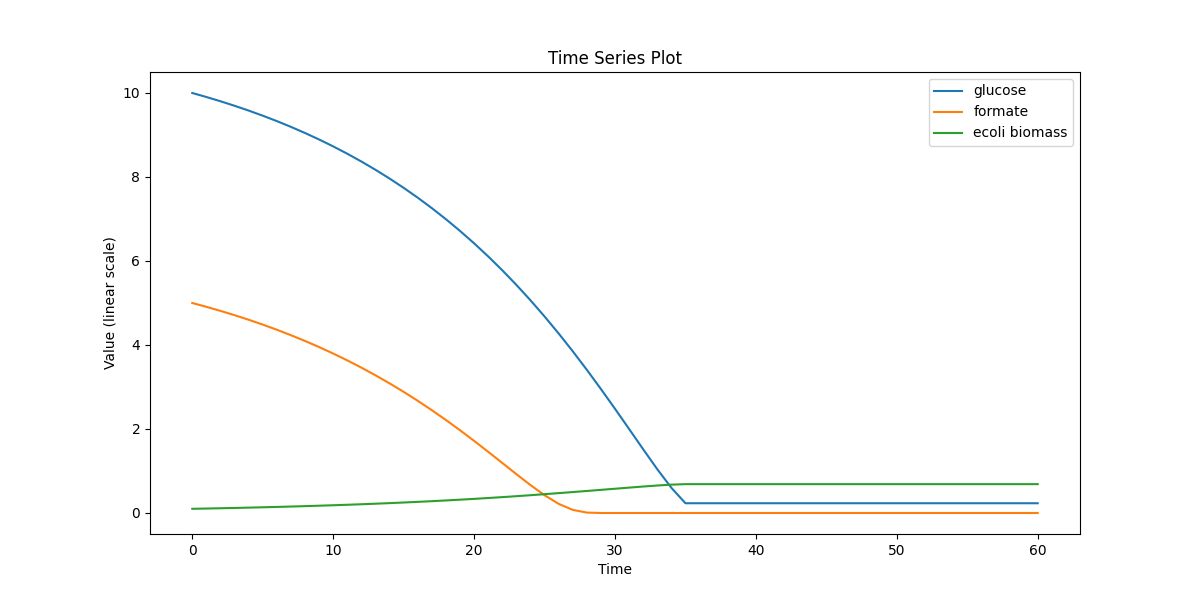

ecoli_dfba

Dynamic FBA of a single E. coli cell using the genome-scale iAF1260 model, tracking extracellular glucose and formate as biomass grows in a well-mixed medium.

Runtime: 2.272s (process: 2.254s, framework: 0.018s)

ecoli_dfba_state.json

View full JSON

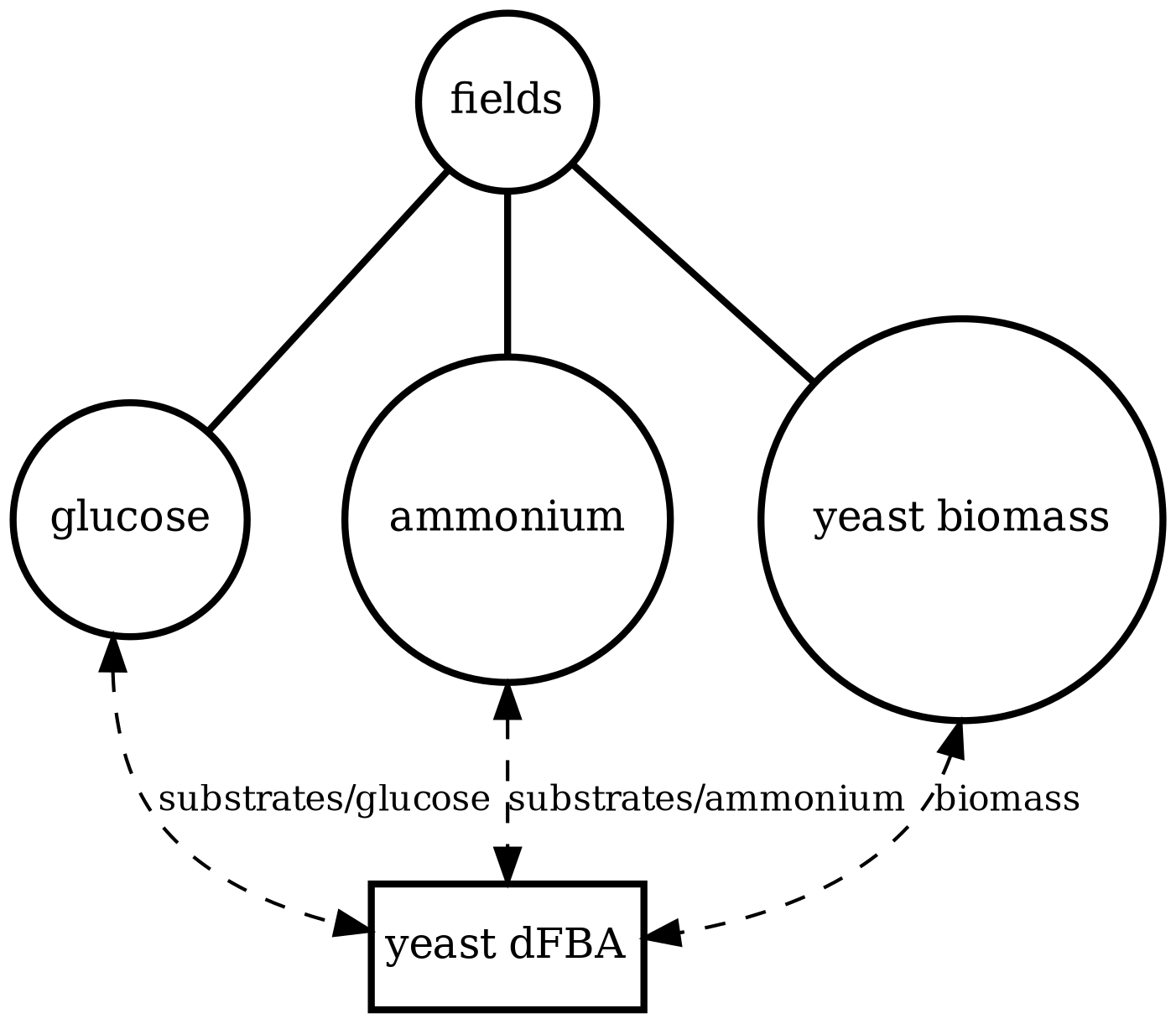

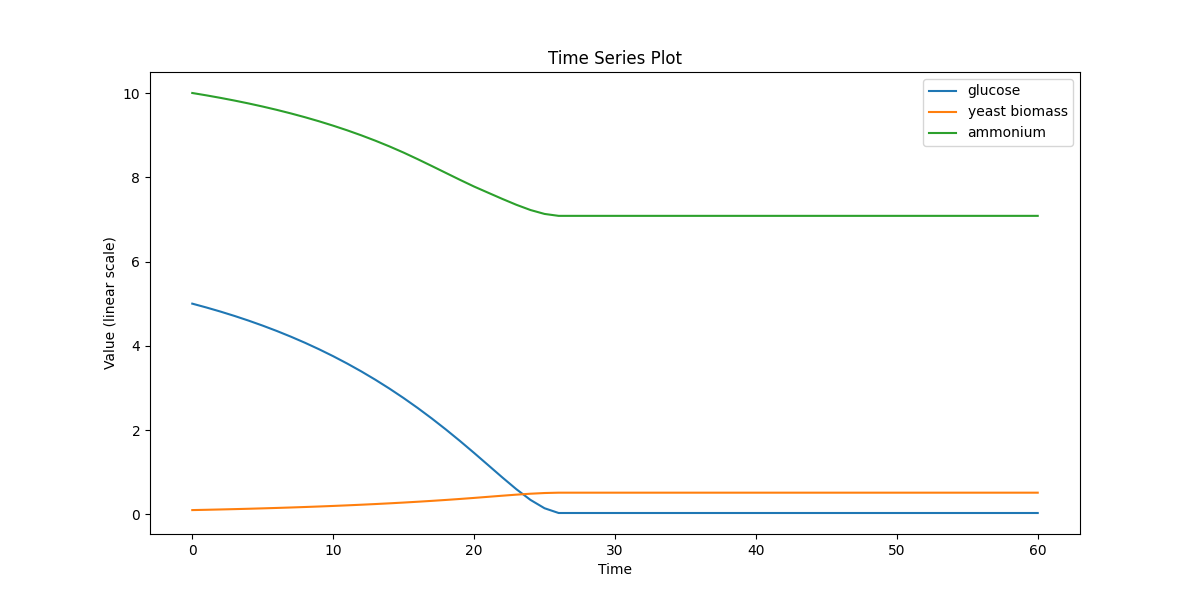

yeast_dfba

Dynamic FBA of a single yeast cell using the genome-scale iMM904 model, tracking extracellular glucose as biomass grows in a well-mixed medium.

Runtime: 1.684s (process: 1.668s, framework: 0.016s)

yeast_dfba_state.json

View full JSON

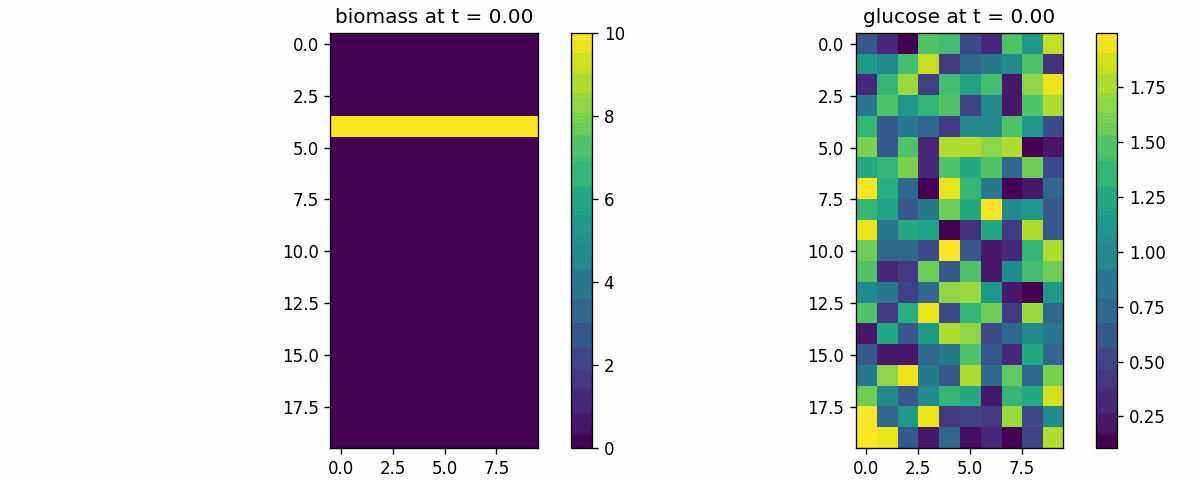

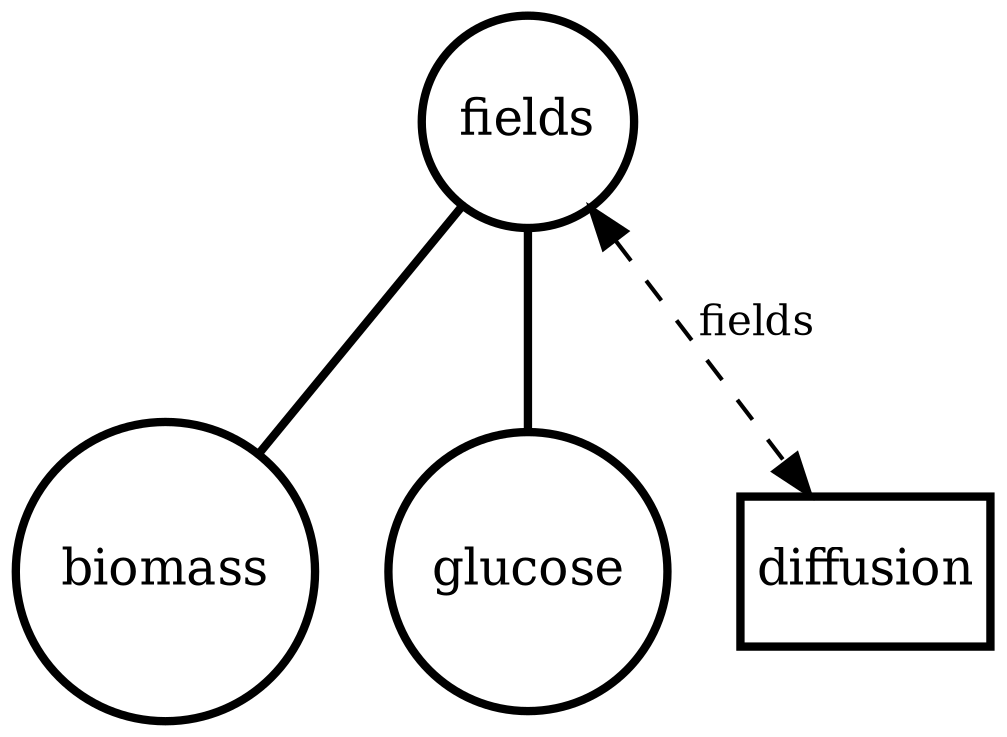

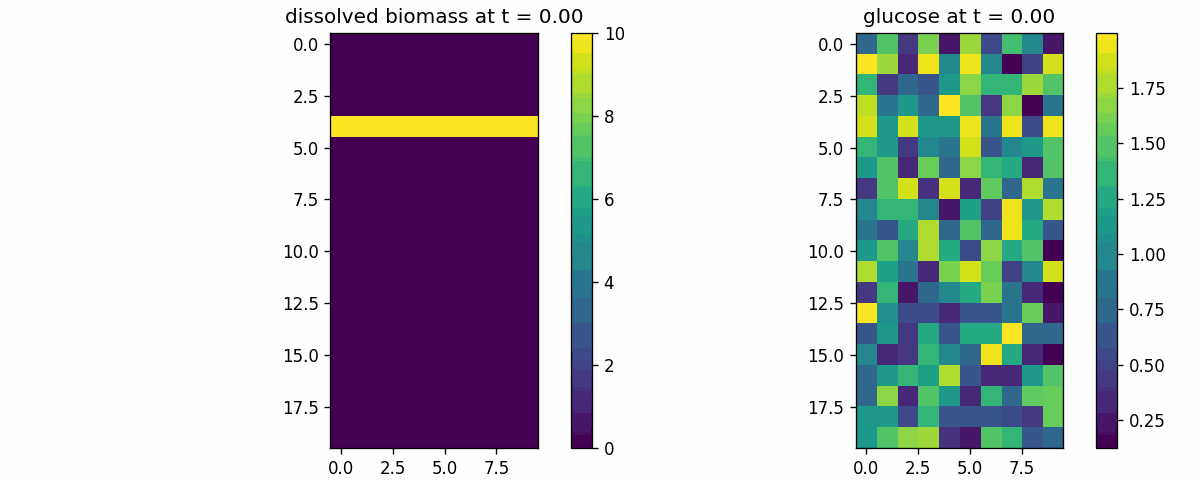

diffusion_process

Finite-volume diffusion and advection of solute fields on a 2D lattice — glucose diffuses while a seeded band of dissolved biomass diffuses and advects — the field-transport building block underlying the spatial composites.

Runtime: 0.035s (process: 0.026s, framework: 0.010s)

diffusion_process_state.json

View full JSON

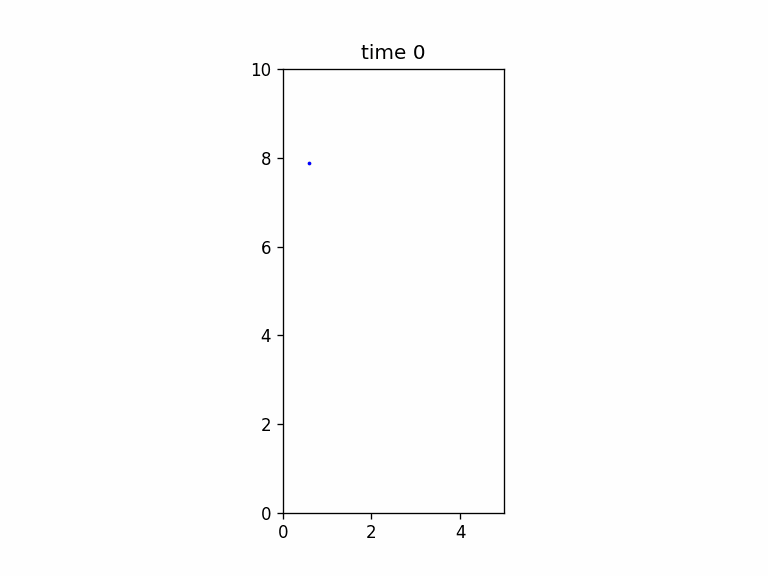

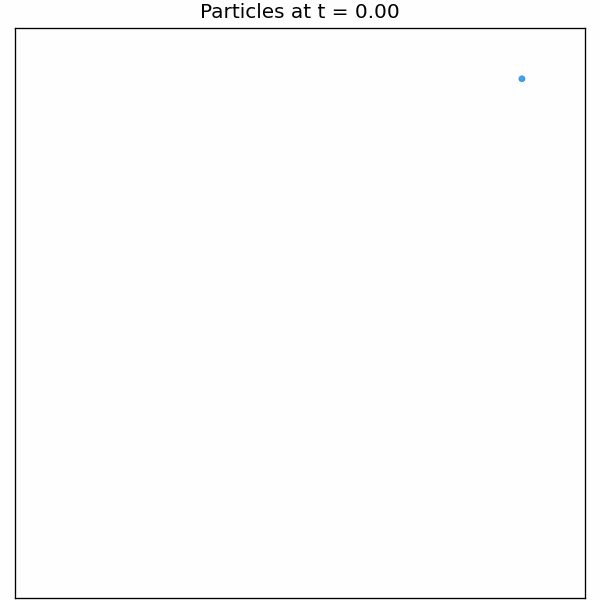

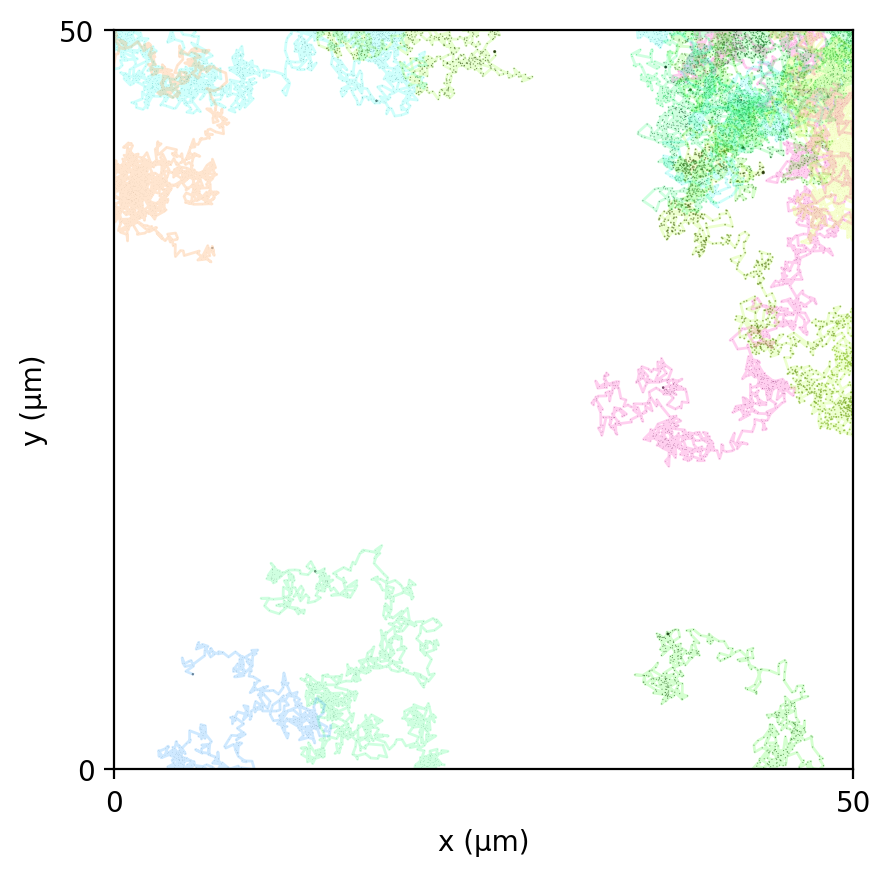

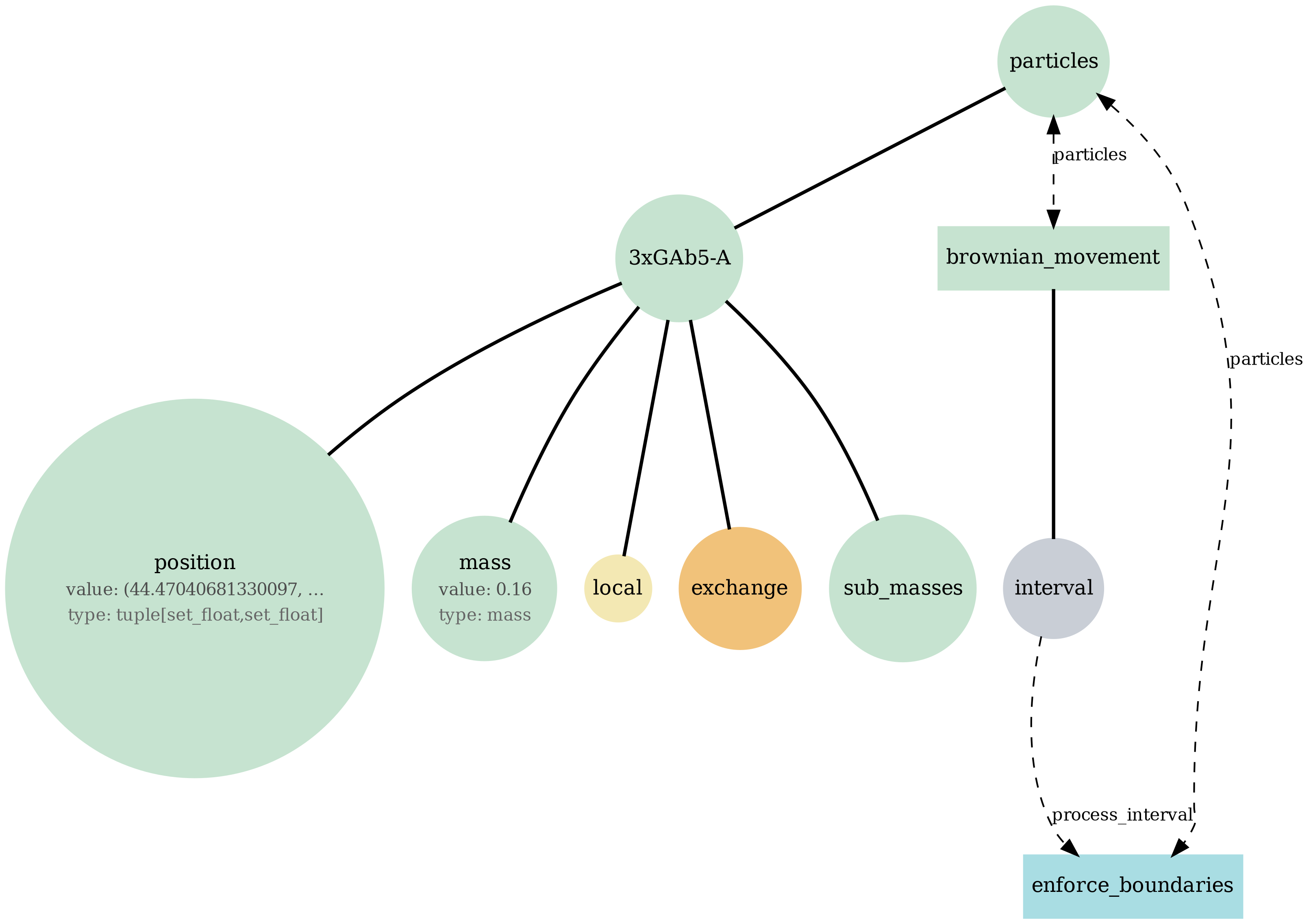

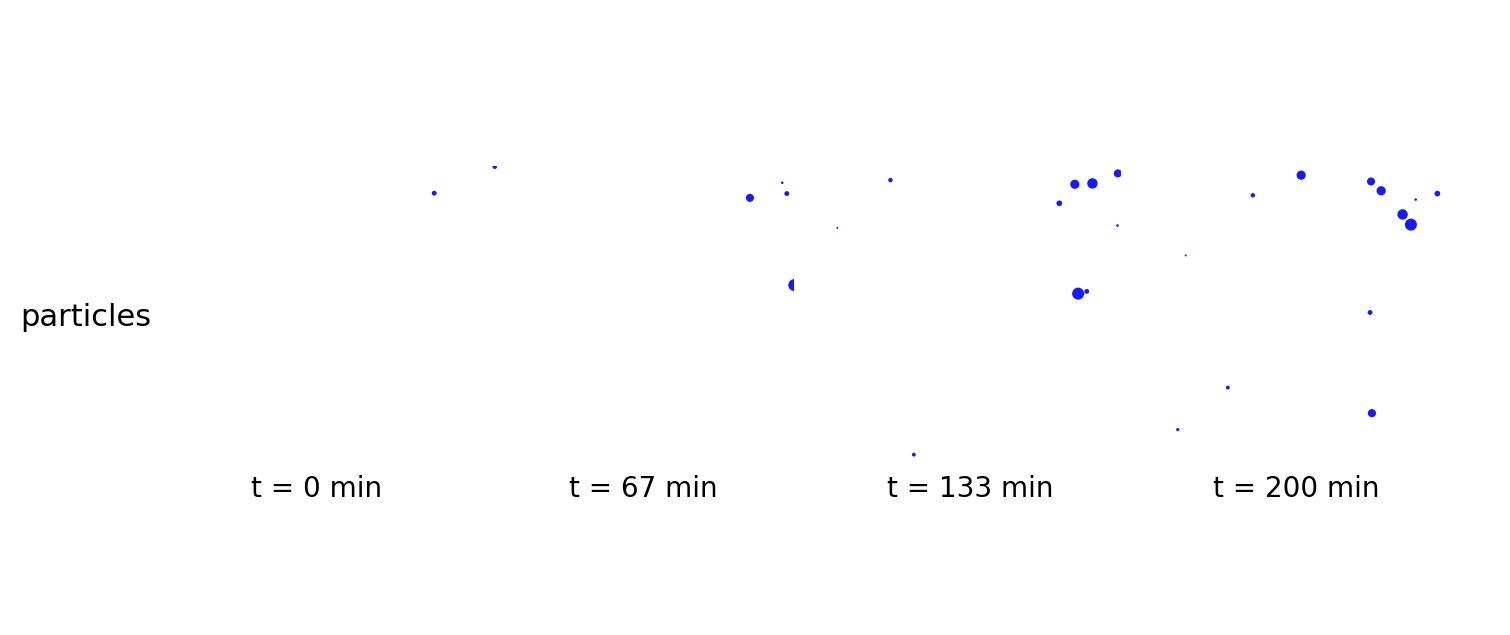

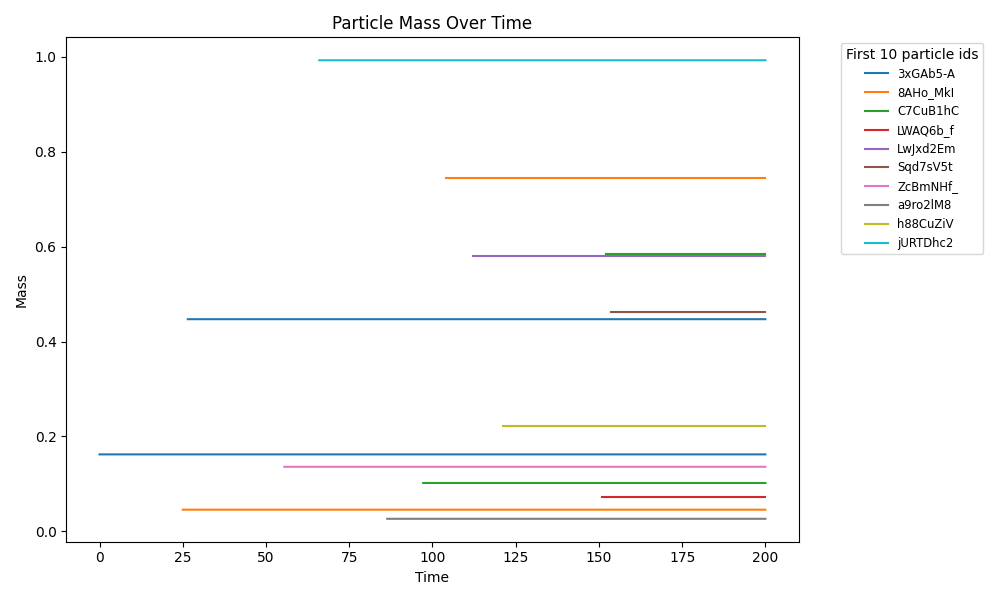

brownian_particles

Brownian motion of mass-carrying agents in continuous space — the particle-only building block, with no fields or metabolism.

Runtime: 0.116s (process: 0.041s, framework: 0.076s)

brownian_particles_state.json

View full JSON

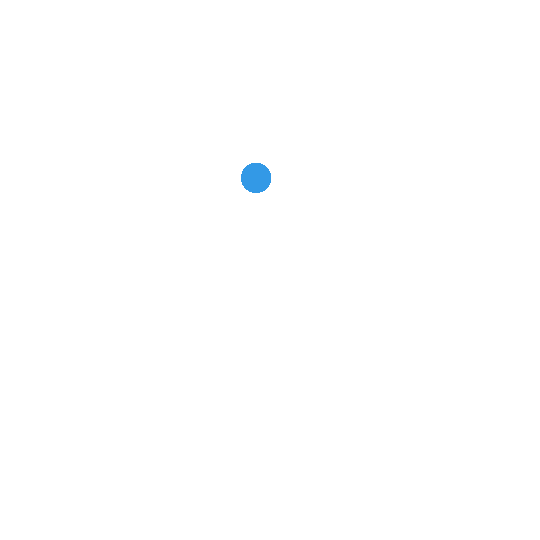

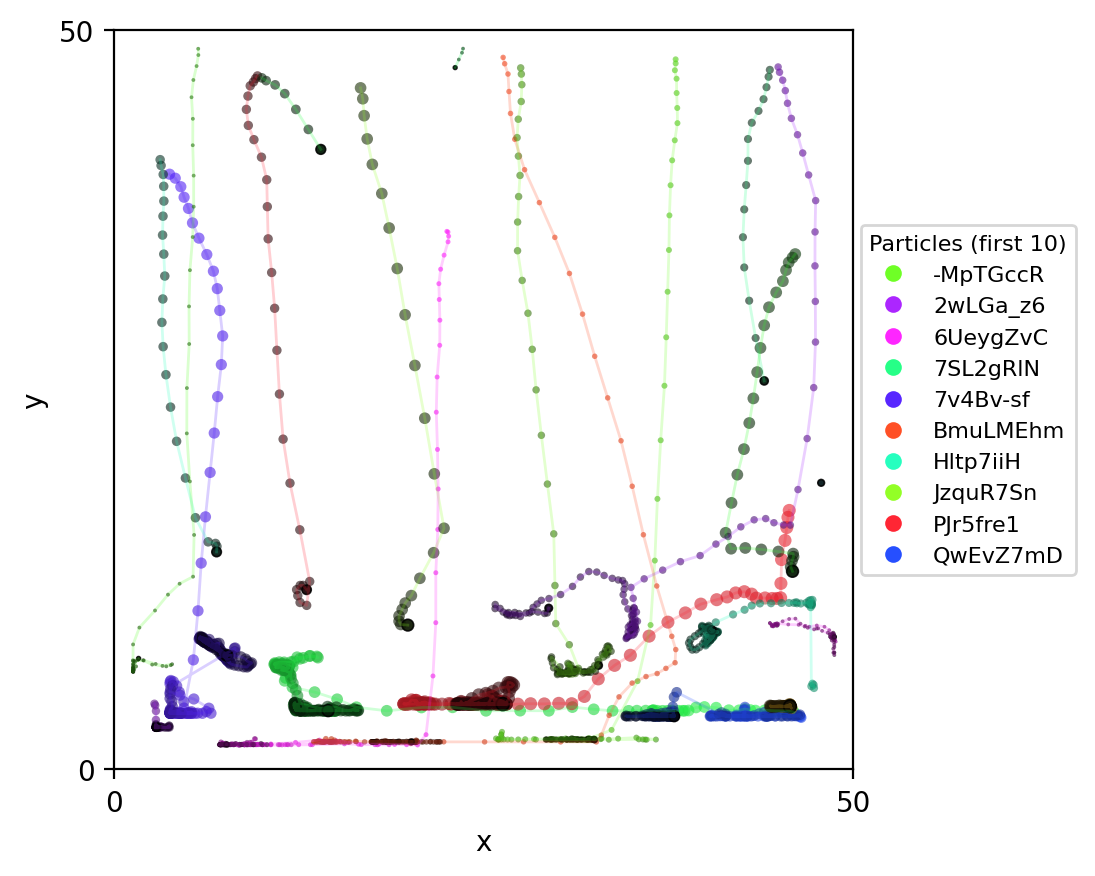

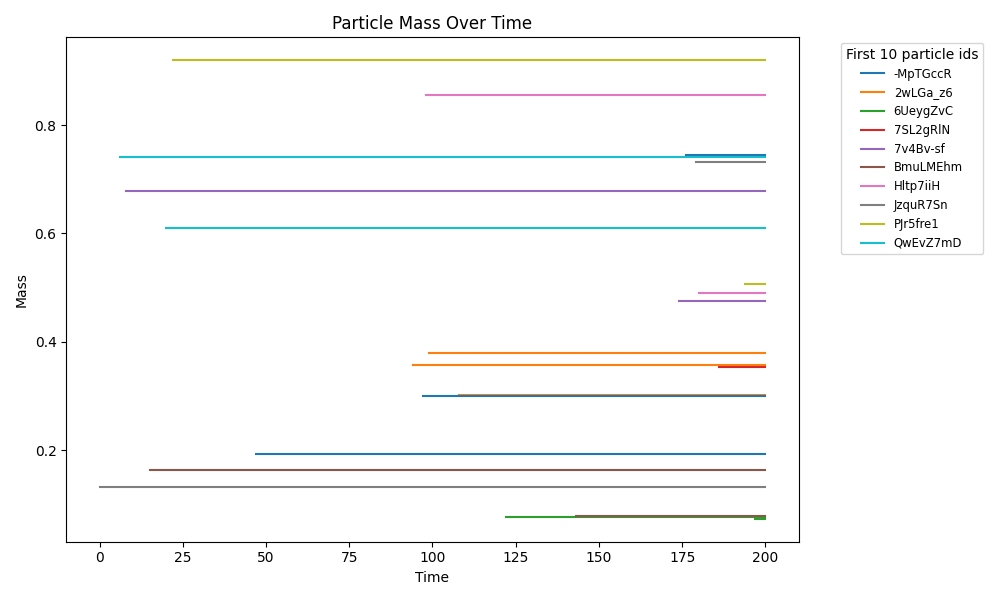

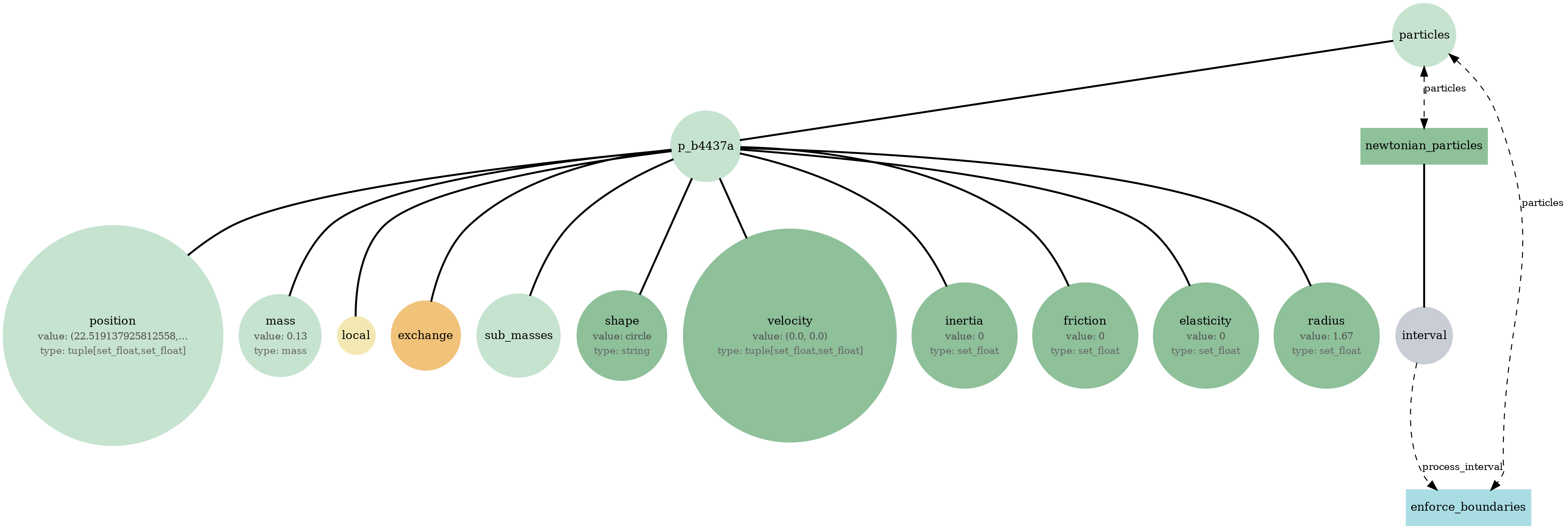

newtonian_particles

Rigid-body particles under gravity that collide and crowd in continuous space via a Pymunk physics engine — the mechanics-only building block, with no fields or metabolism.

Runtime: 0.123s (process: 0.099s, framework: 0.024s)

newtonian_particles_state.json

View full JSON

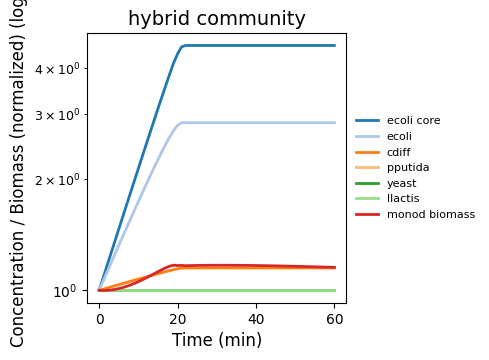

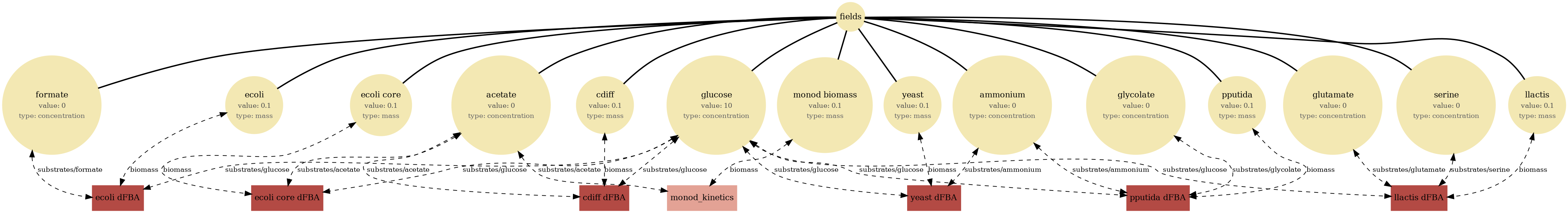

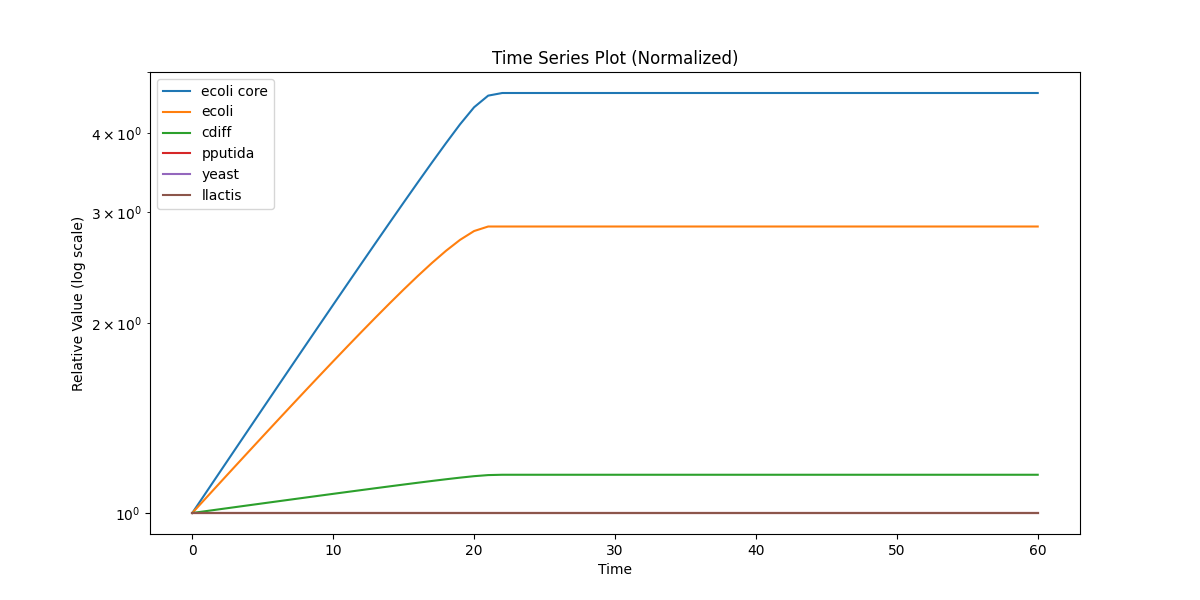

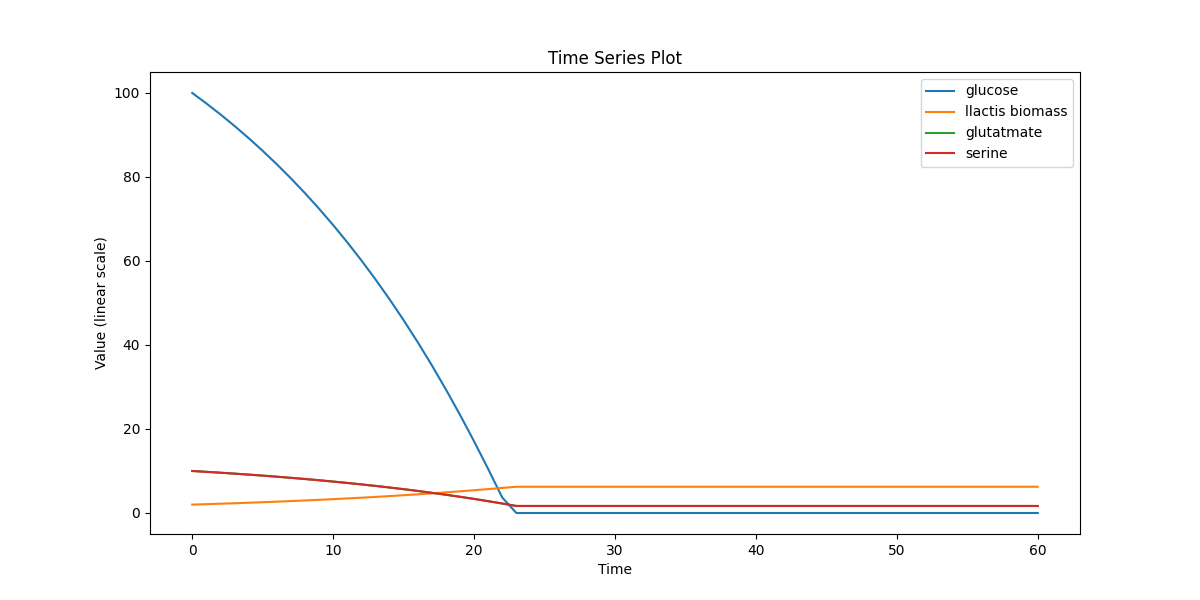

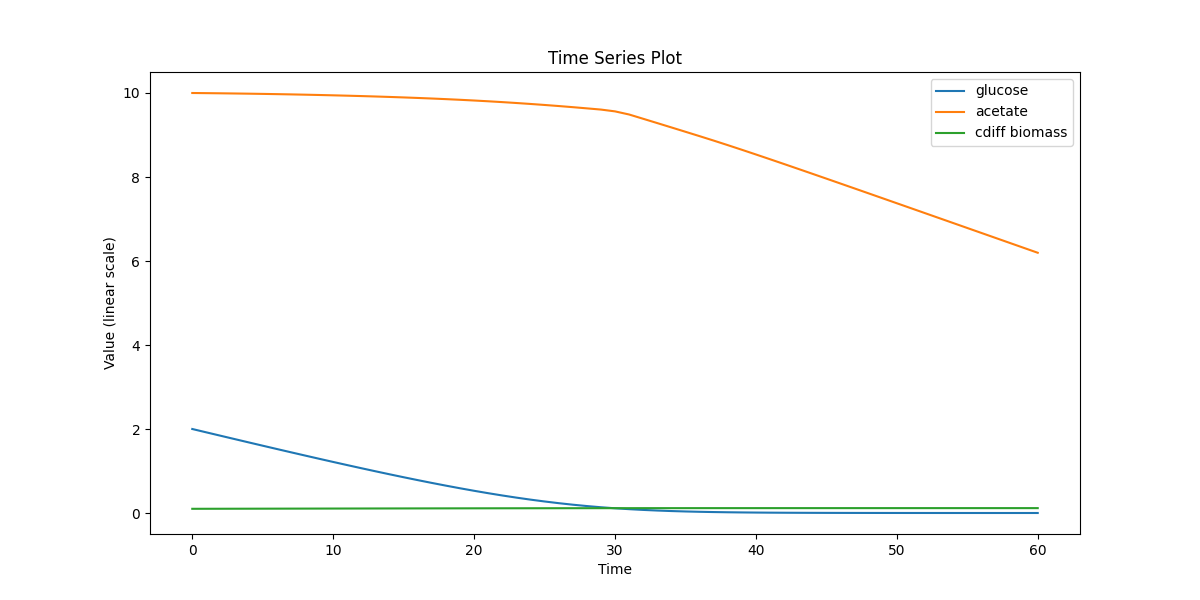

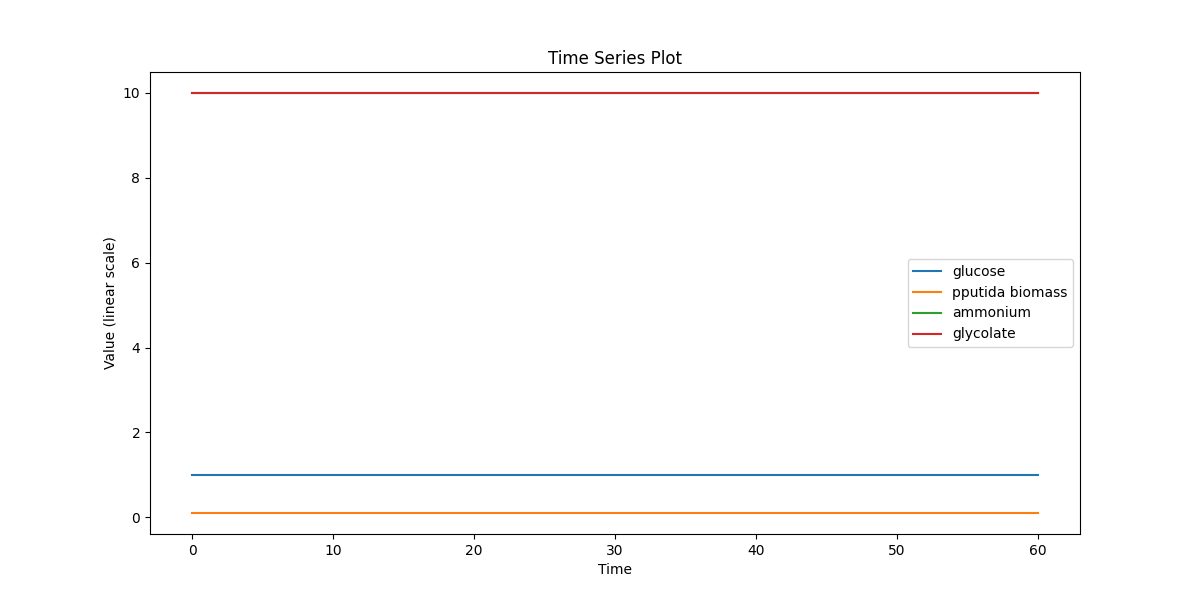

community_dfba

A well-mixed microbial community where several dFBA species and a Monod-kinetic population share the same extracellular substrate pools, producing competition and cross-feeding without spatial structure.

Runtime: 8.136s (process: 8.102s, framework: 0.034s)

community_dfba_state.json

View full JSON

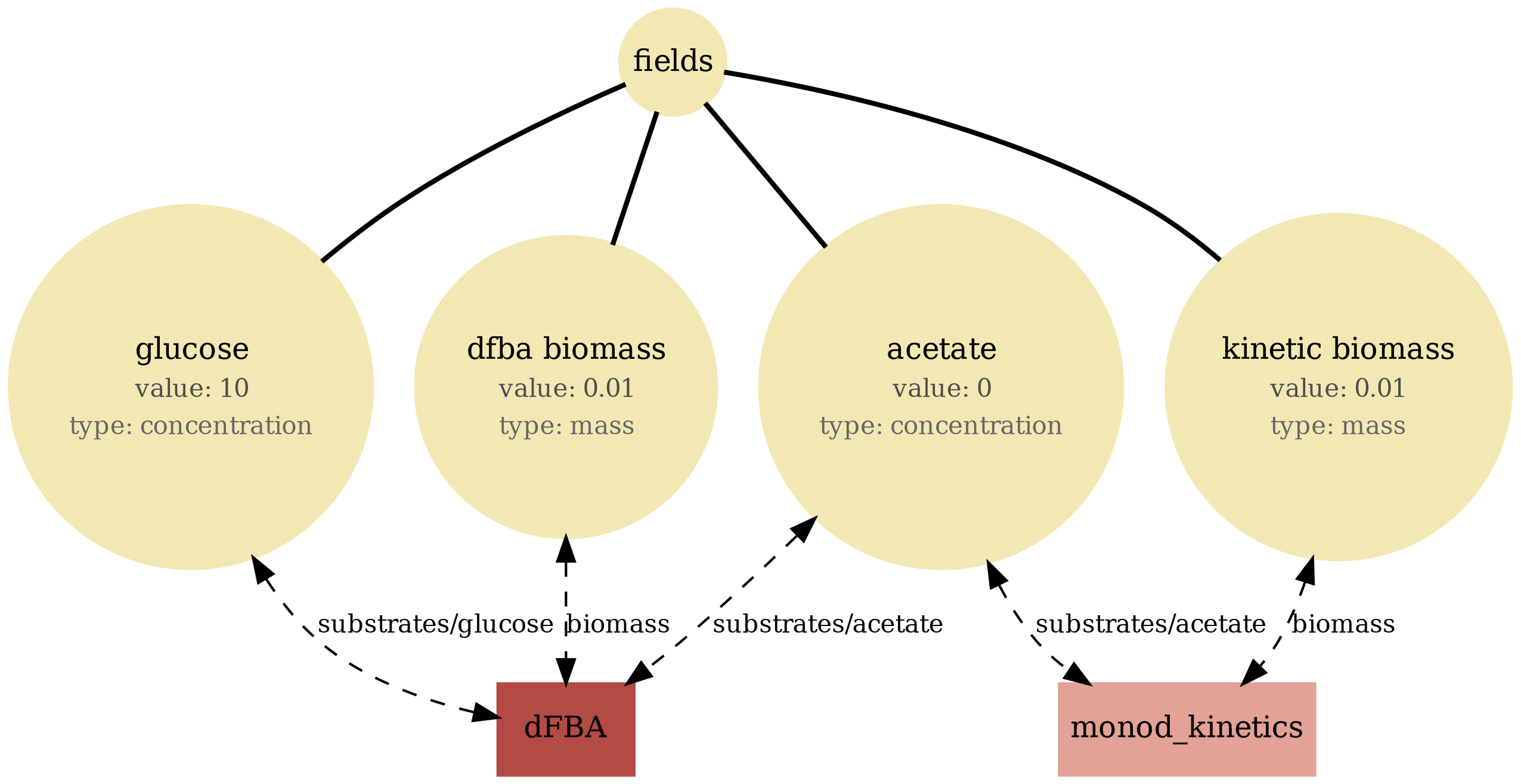

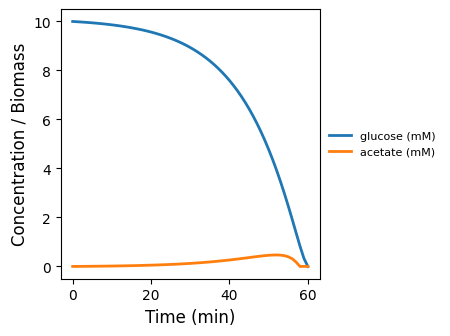

dfba_kinetics_community

A well-mixed community pairing a dFBA population with a Monod-kinetic population that share the same extracellular glucose and acetate pools, coupling two metabolic modeling styles in one environment.

Runtime: 0.063s (process: 0.048s, framework: 0.015s)

dfba_kinetics_community_state.json

View full JSON

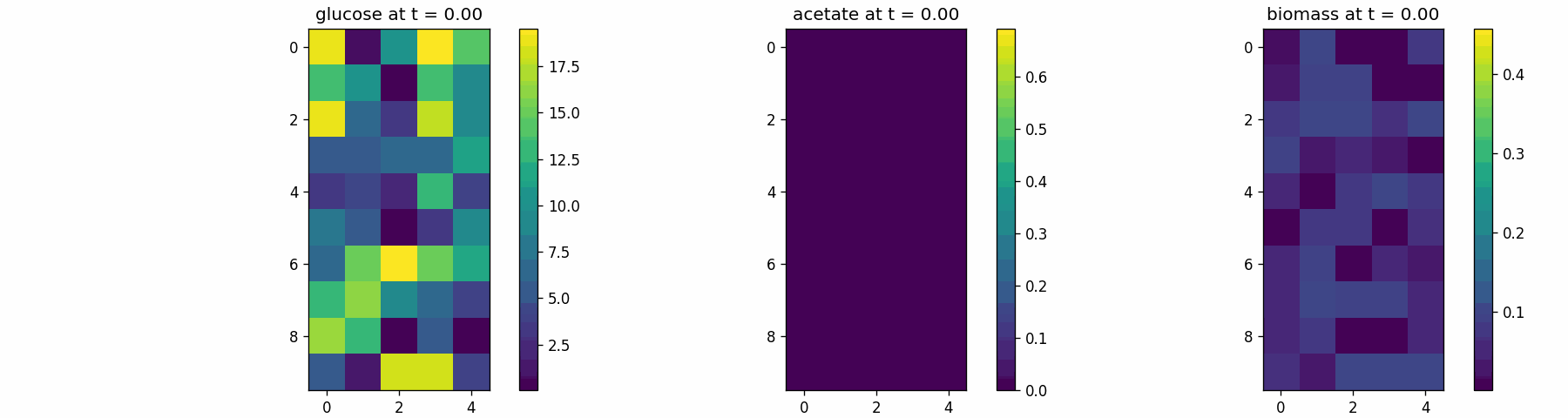

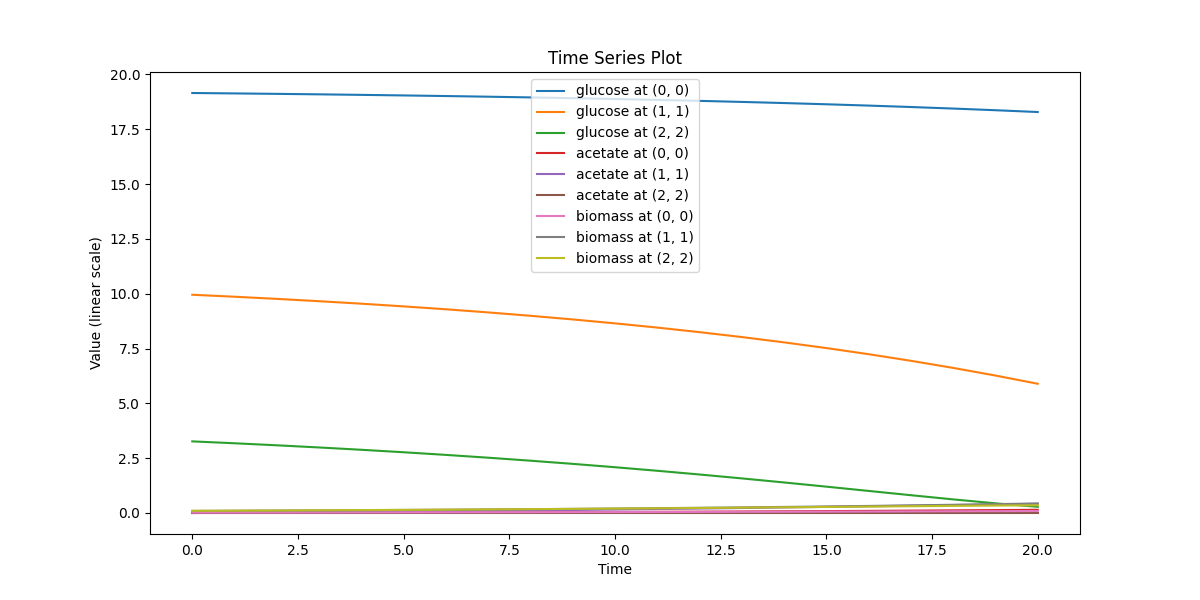

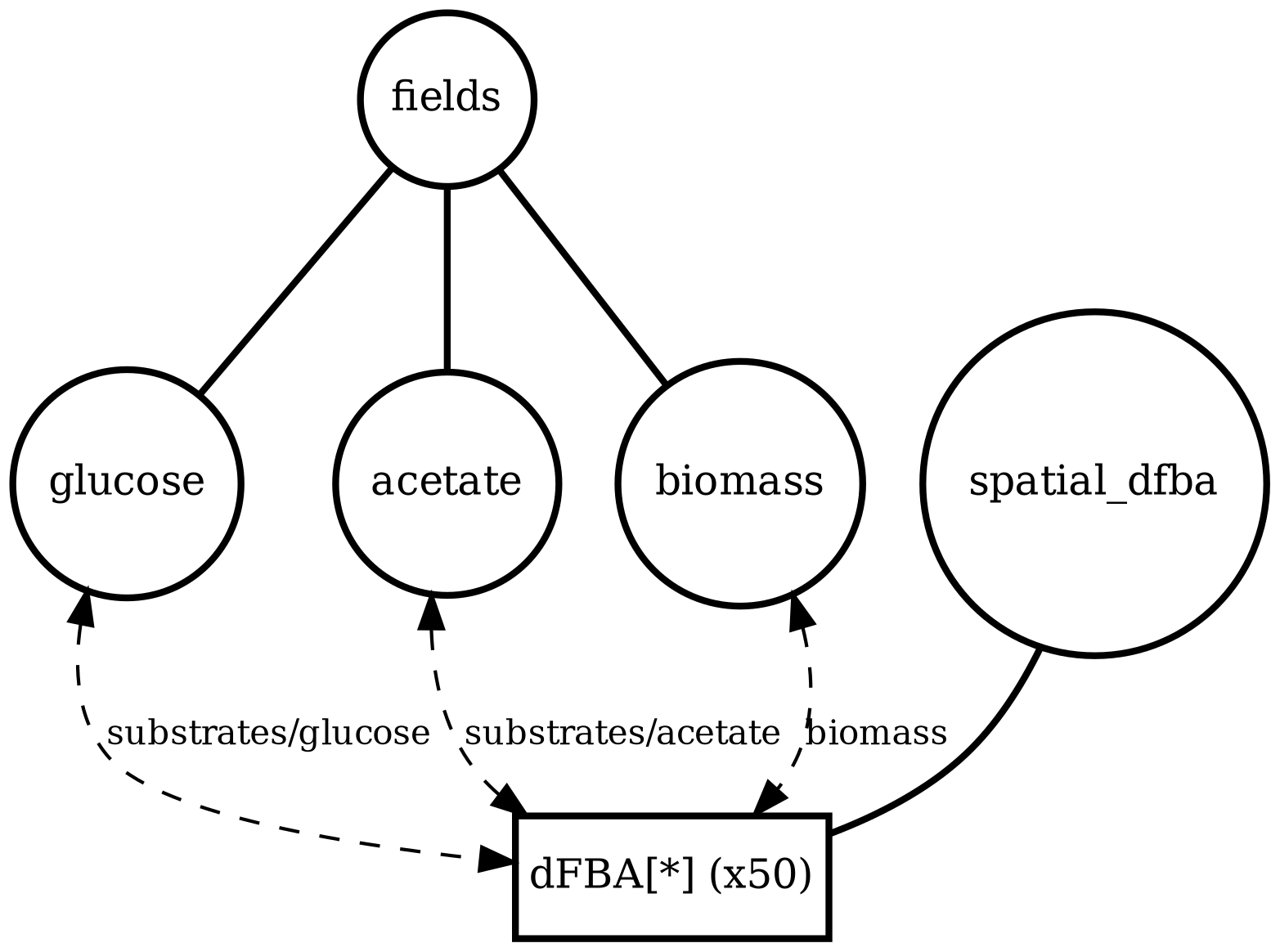

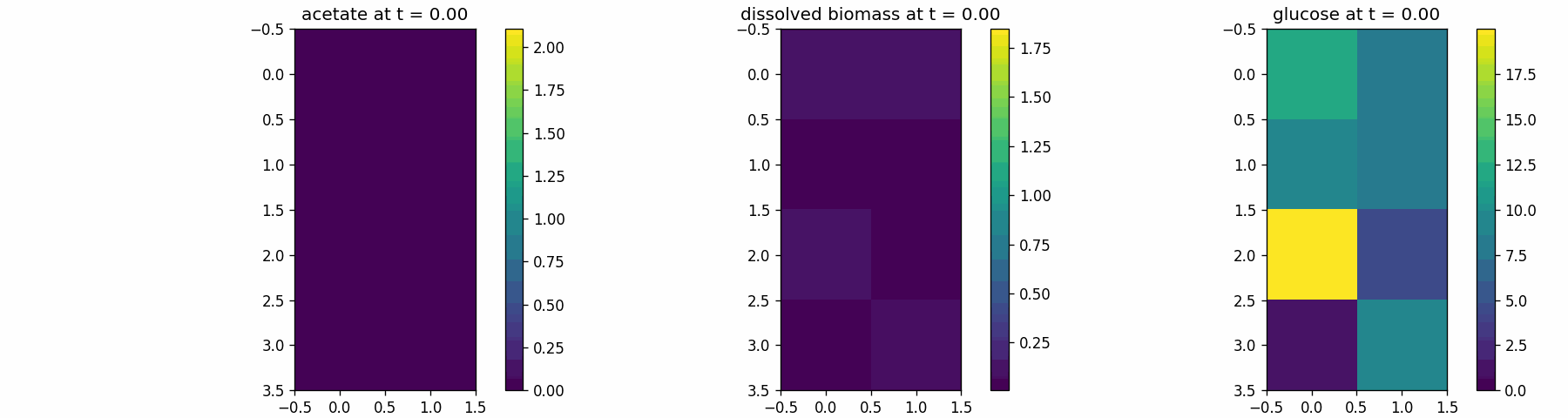

spatial_many_dfba

A spatial microenvironment where every lattice site runs its own dFBA instance over local glucose, acetate, and dissolved biomass, resolving metabolism site by site across the grid.

Runtime: 0.498s (process: 0.461s, framework: 0.037s)

spatial_many_dfba_state.json

View full JSON

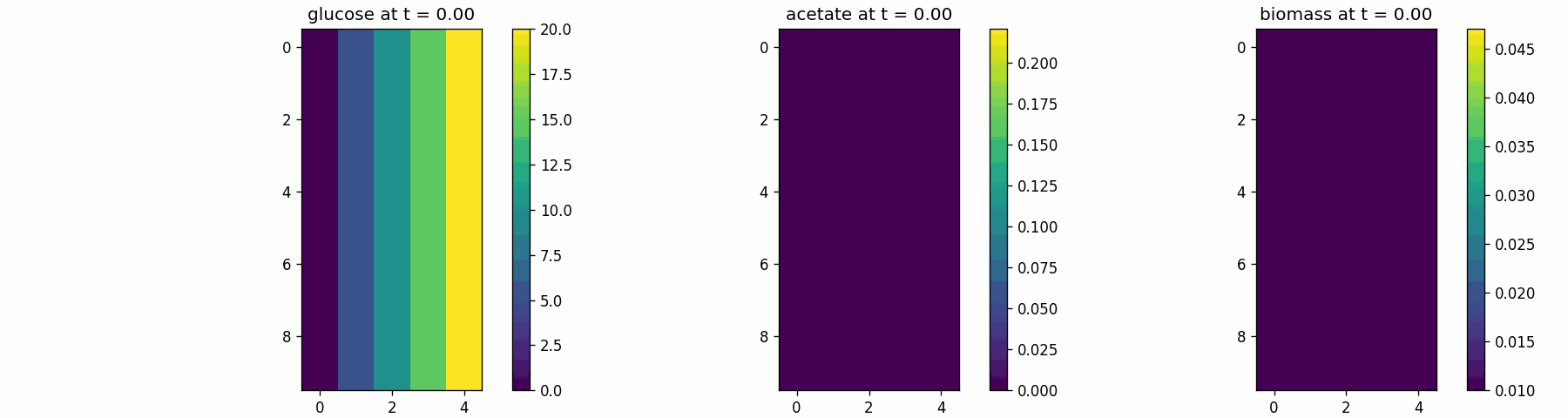

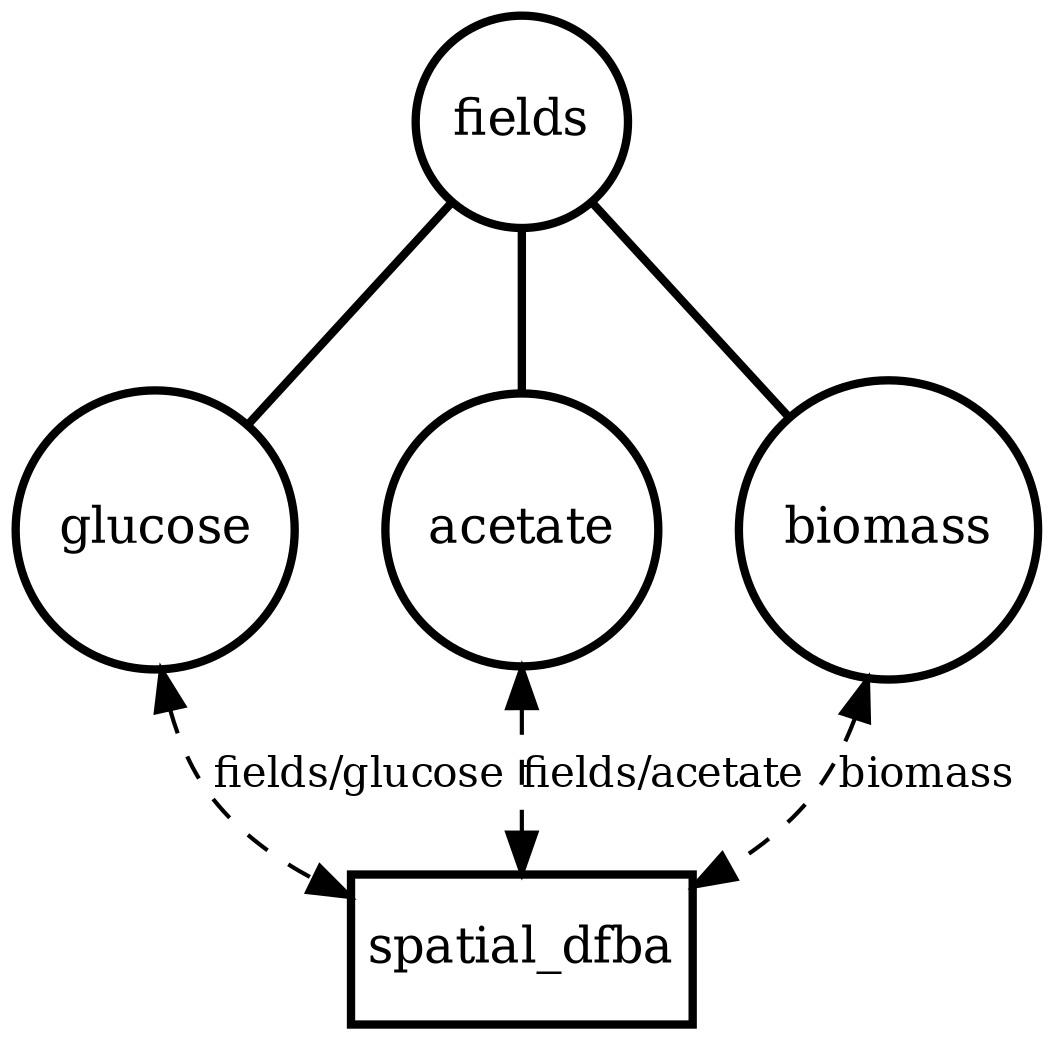

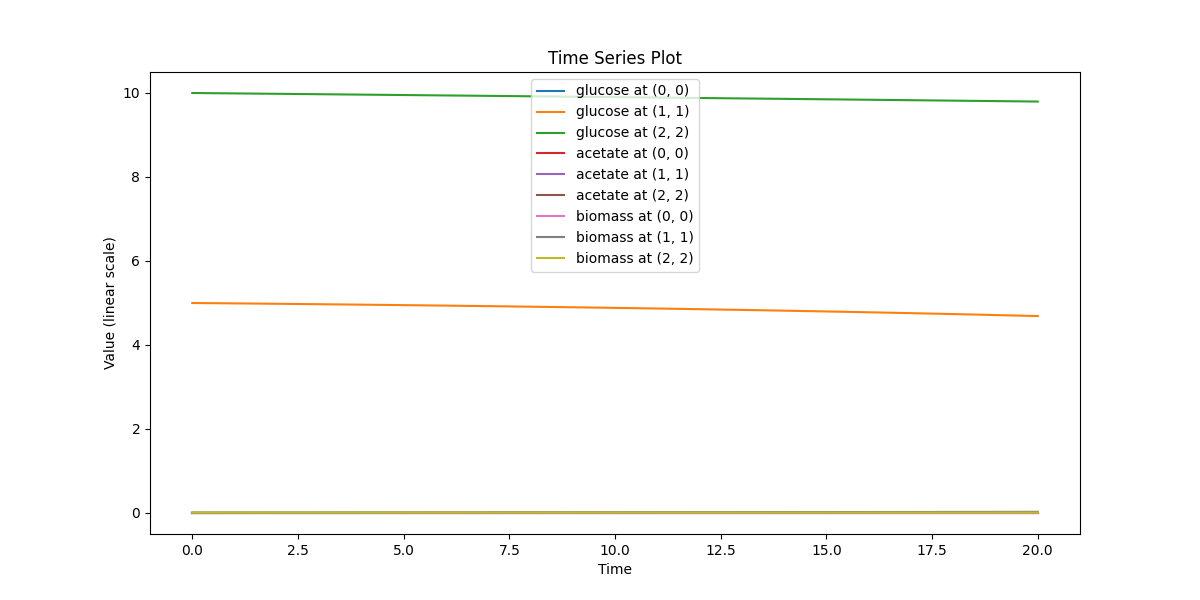

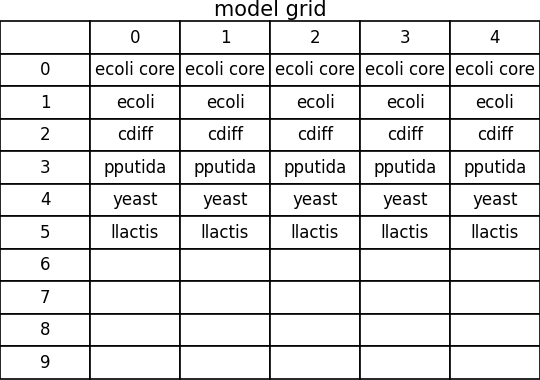

spatial_dfba_process

A spatial microenvironment where a single vectorized dFBA process updates every lattice site at once, with six microbial species arranged in rows across a horizontal glucose gradient.

Runtime: 37.472s (process: 37.452s, framework: 0.020s)

spatial_dfba_process_state.json

View full JSON

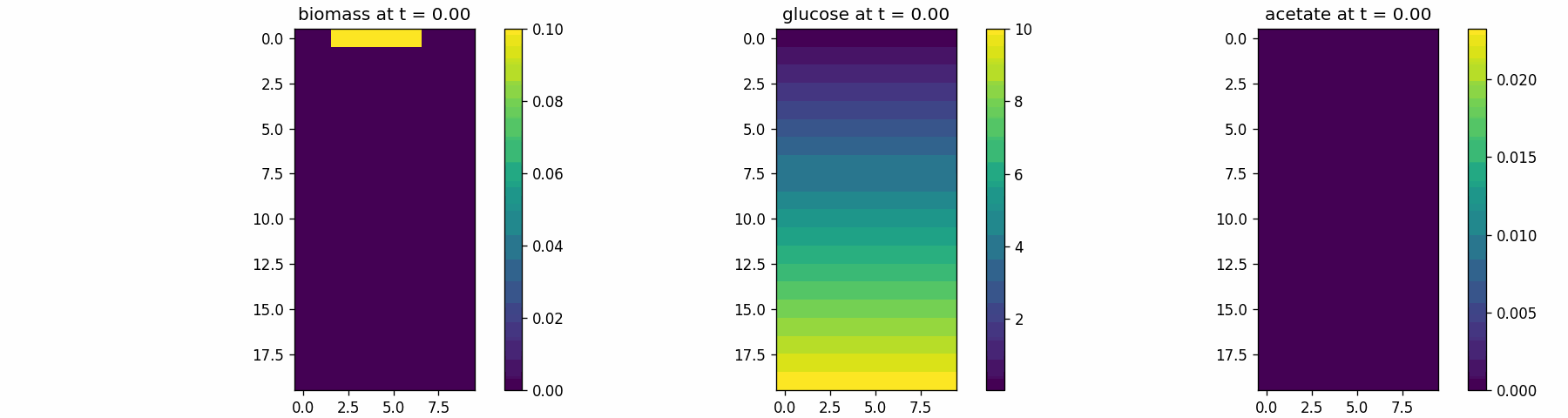

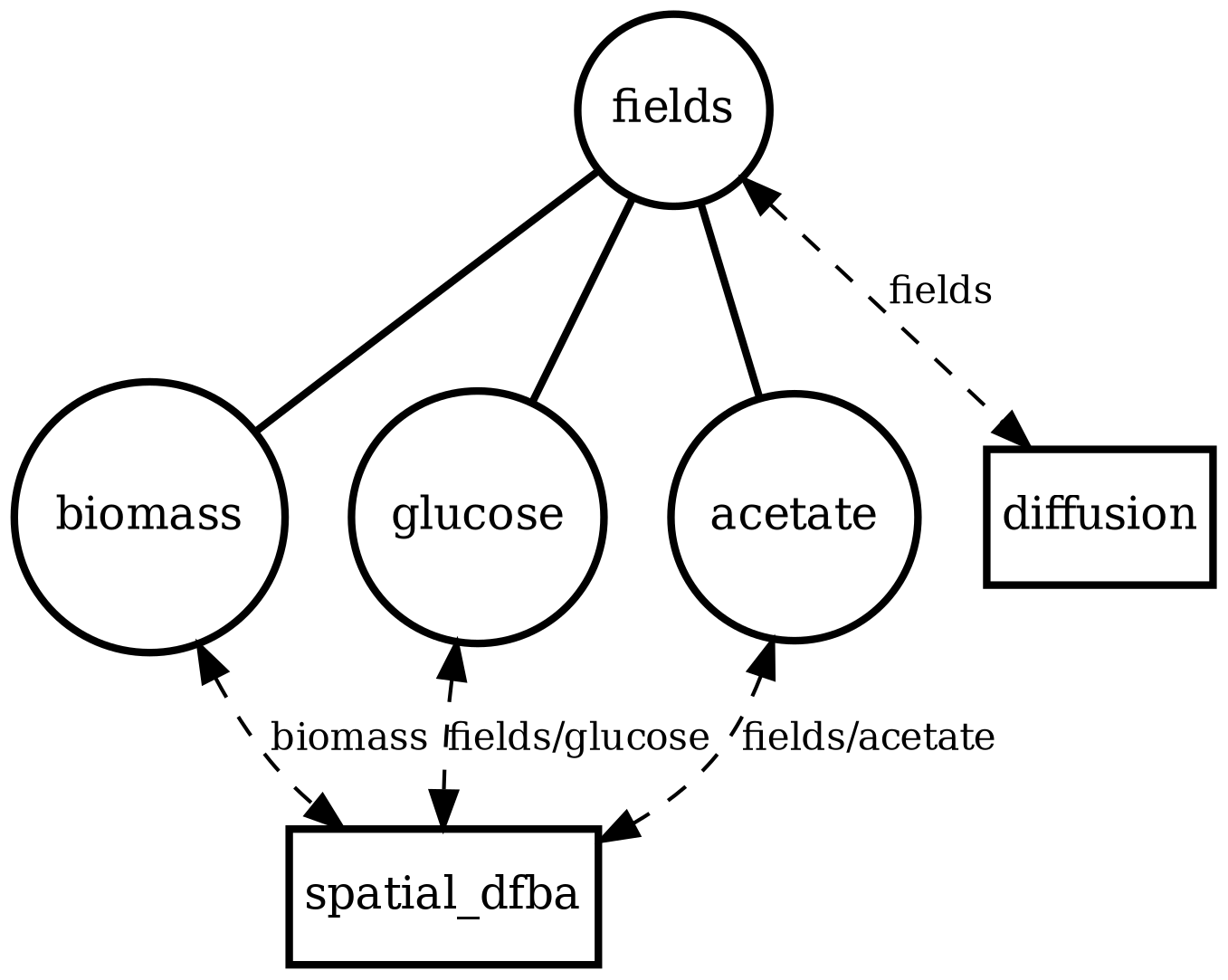

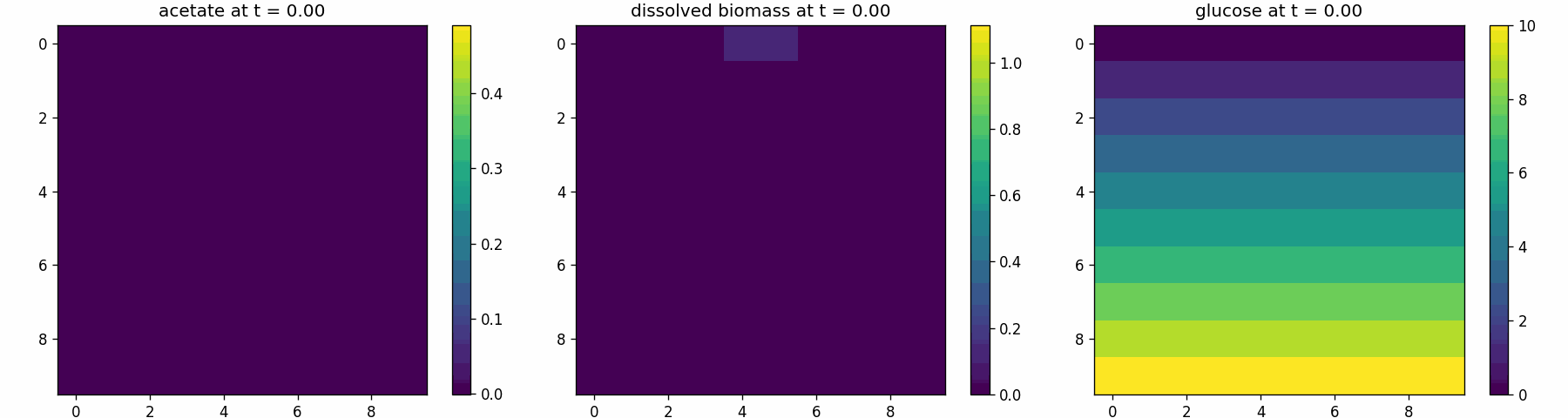

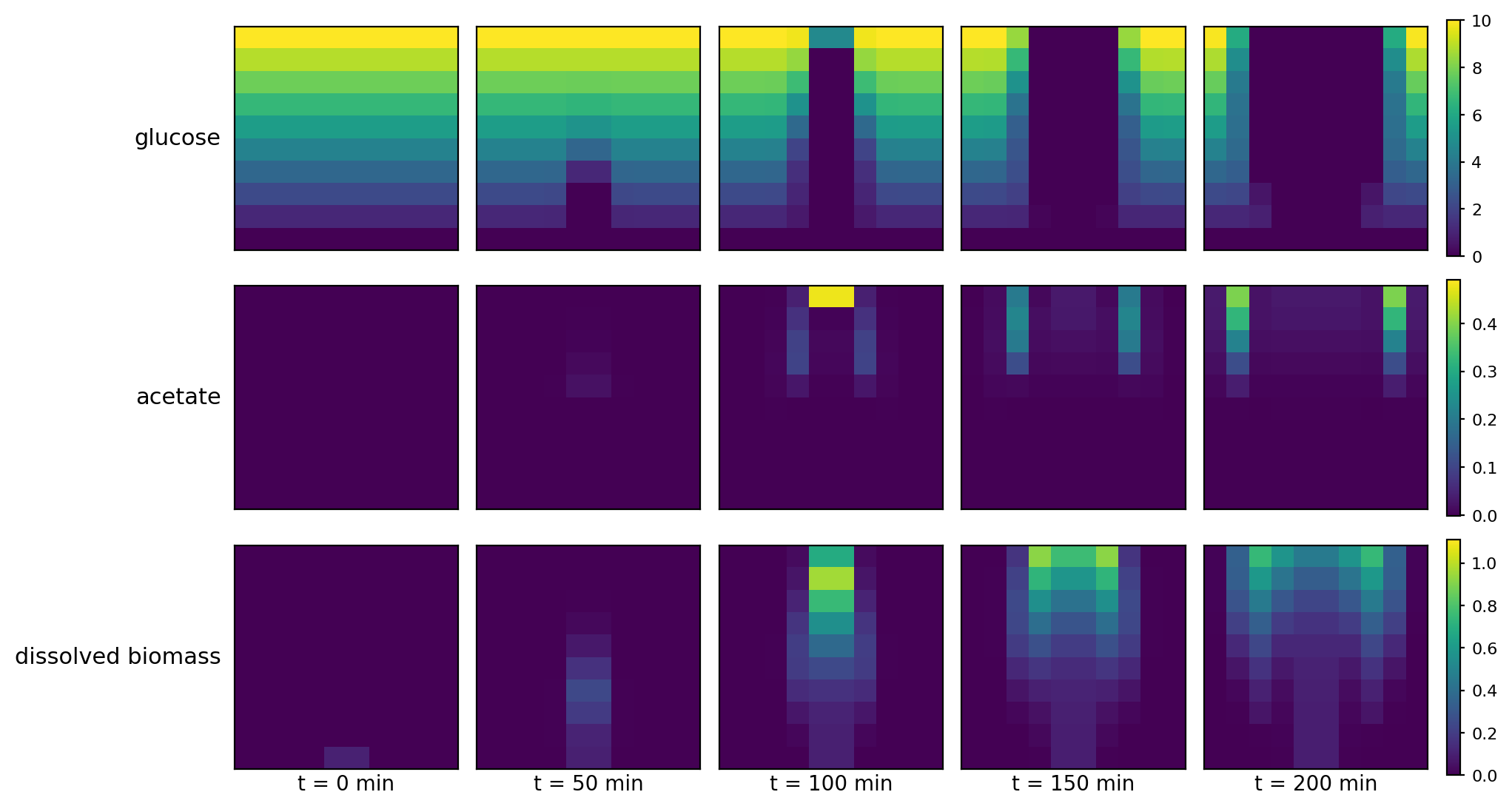

comets_diffusion

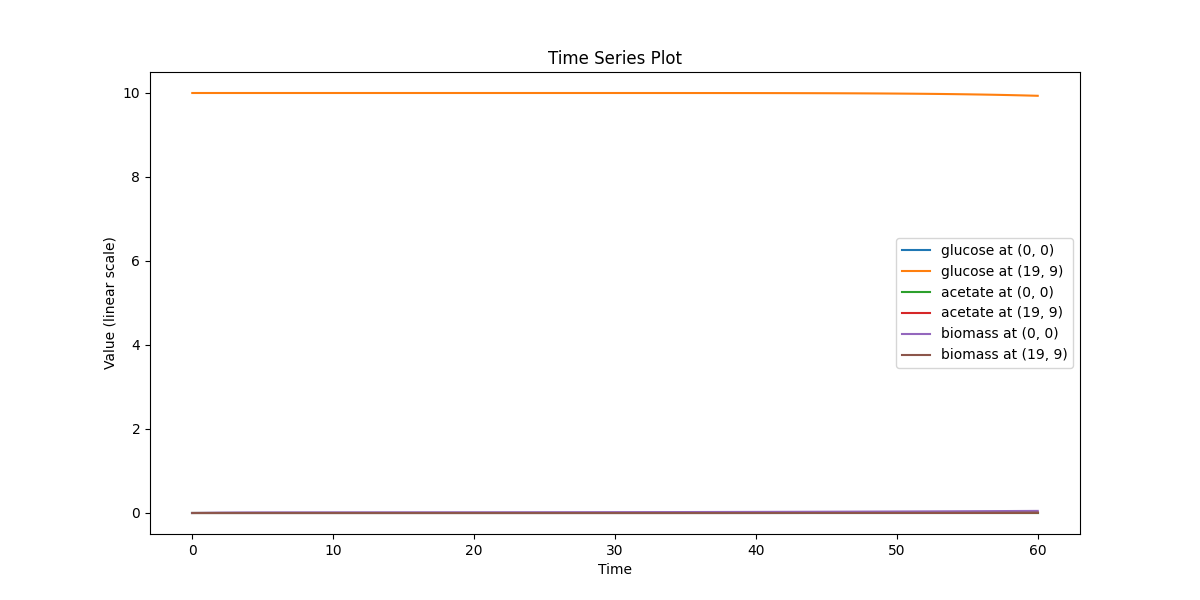

The classic COMETS field-only scenario: per-site dFBA on a lattice coupled to advection–diffusion of glucose, acetate, and dissolved biomass, with biomass seeded at the top edge.

Runtime: 5.410s (process: 5.160s, framework: 0.250s)

comets_diffusion_state.json

View full JSON

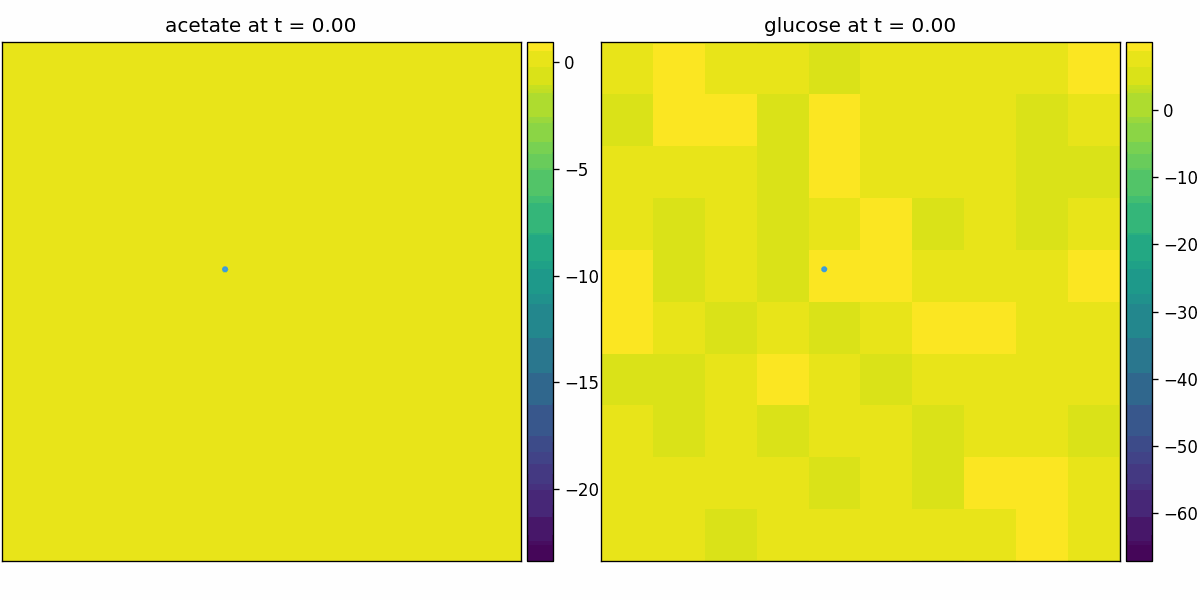

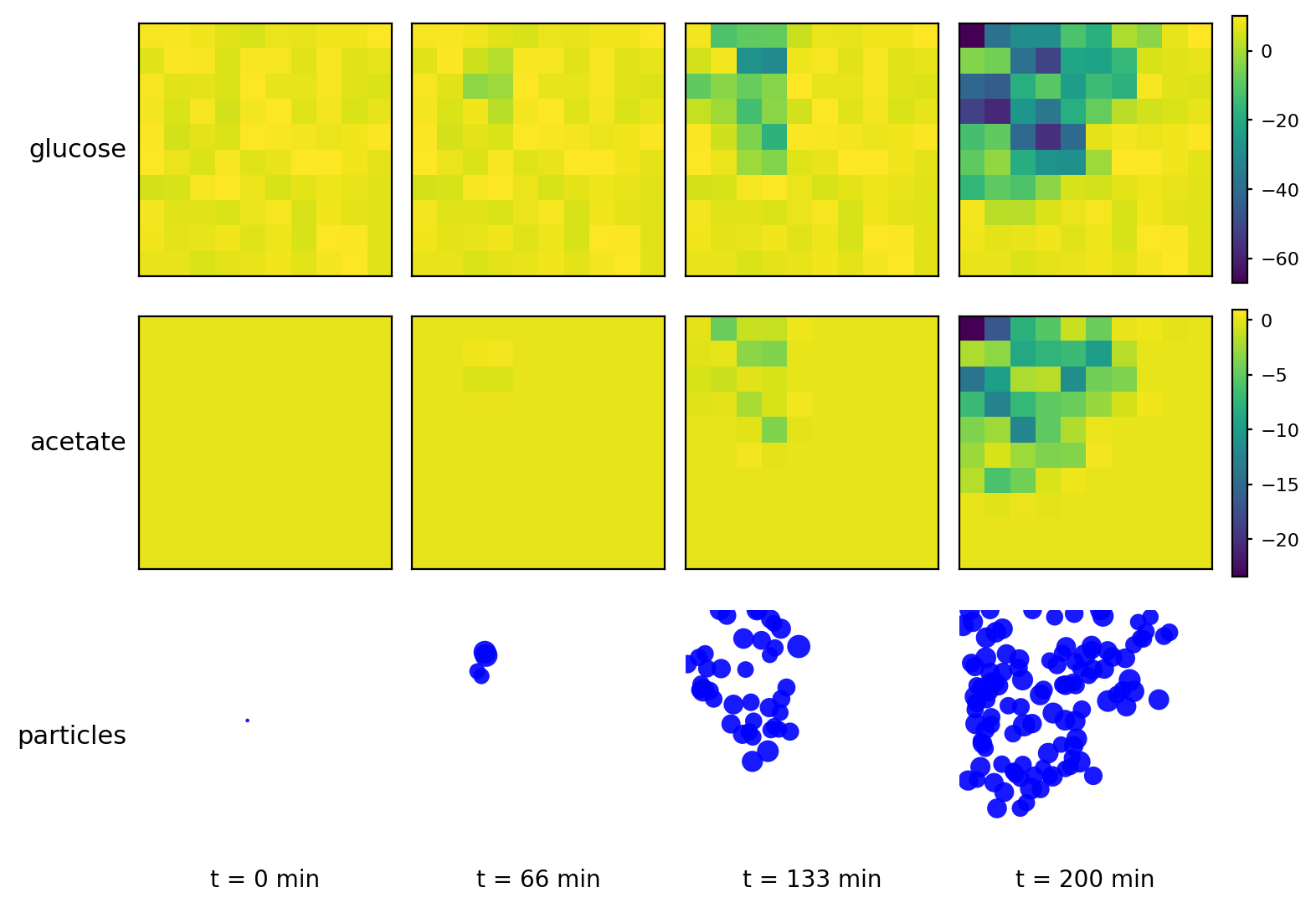

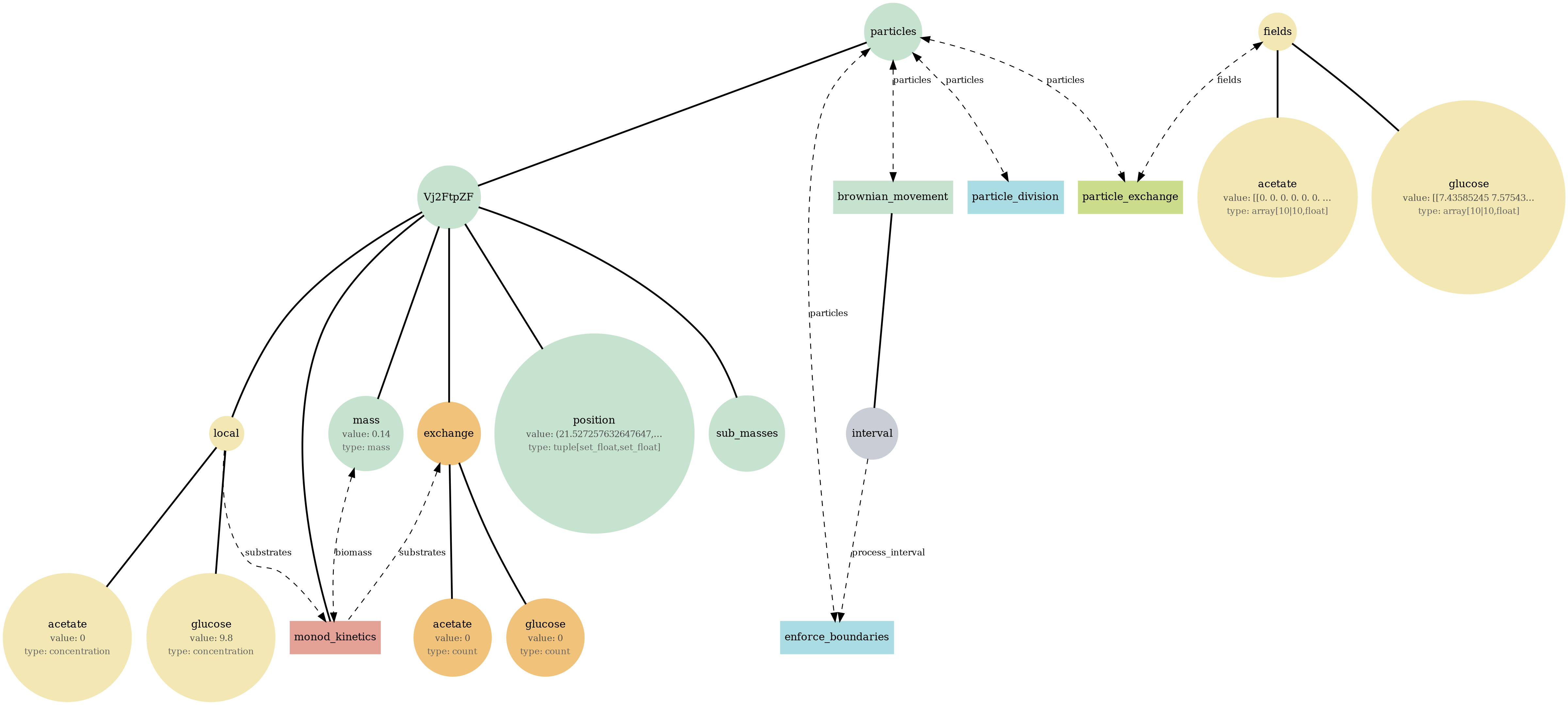

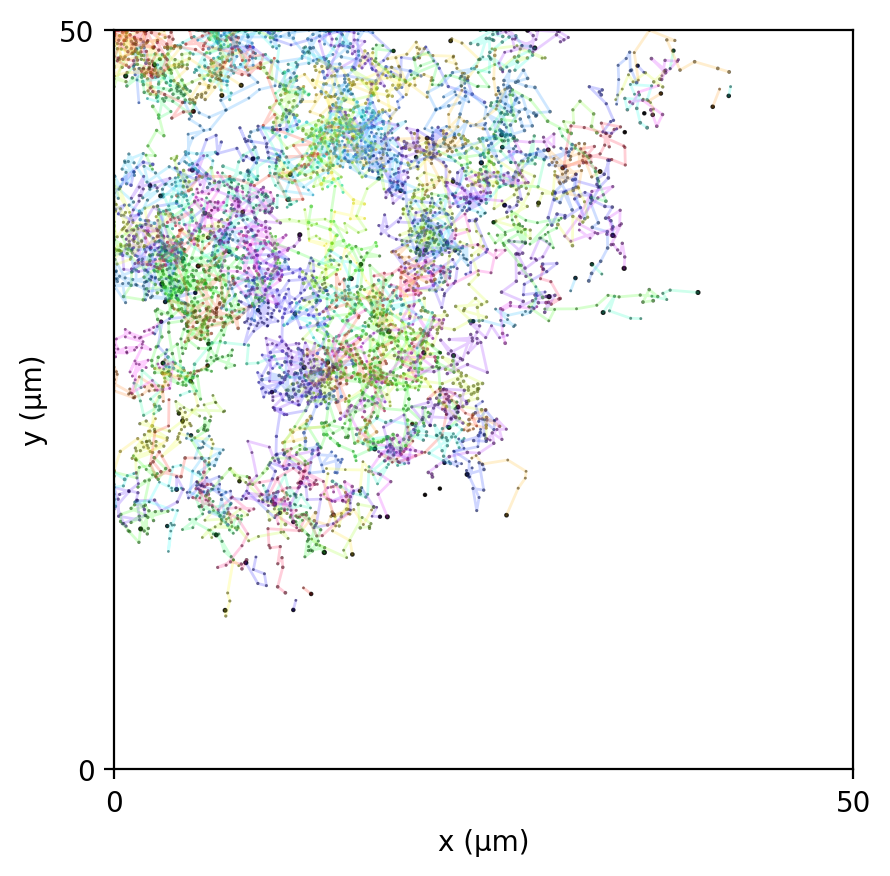

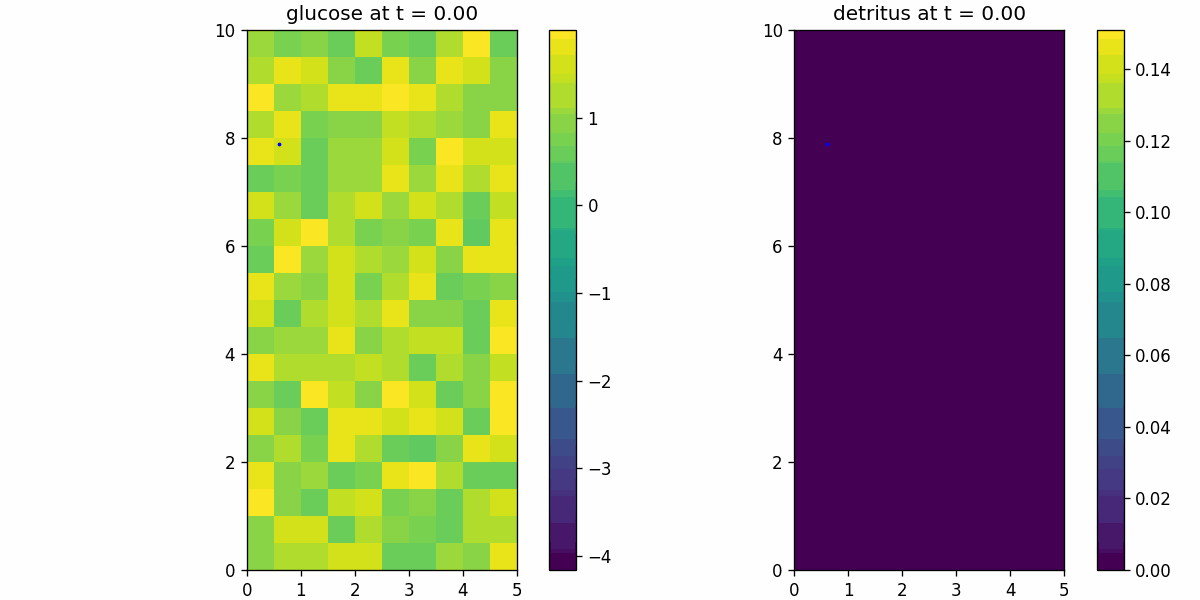

br_particles_kinetics

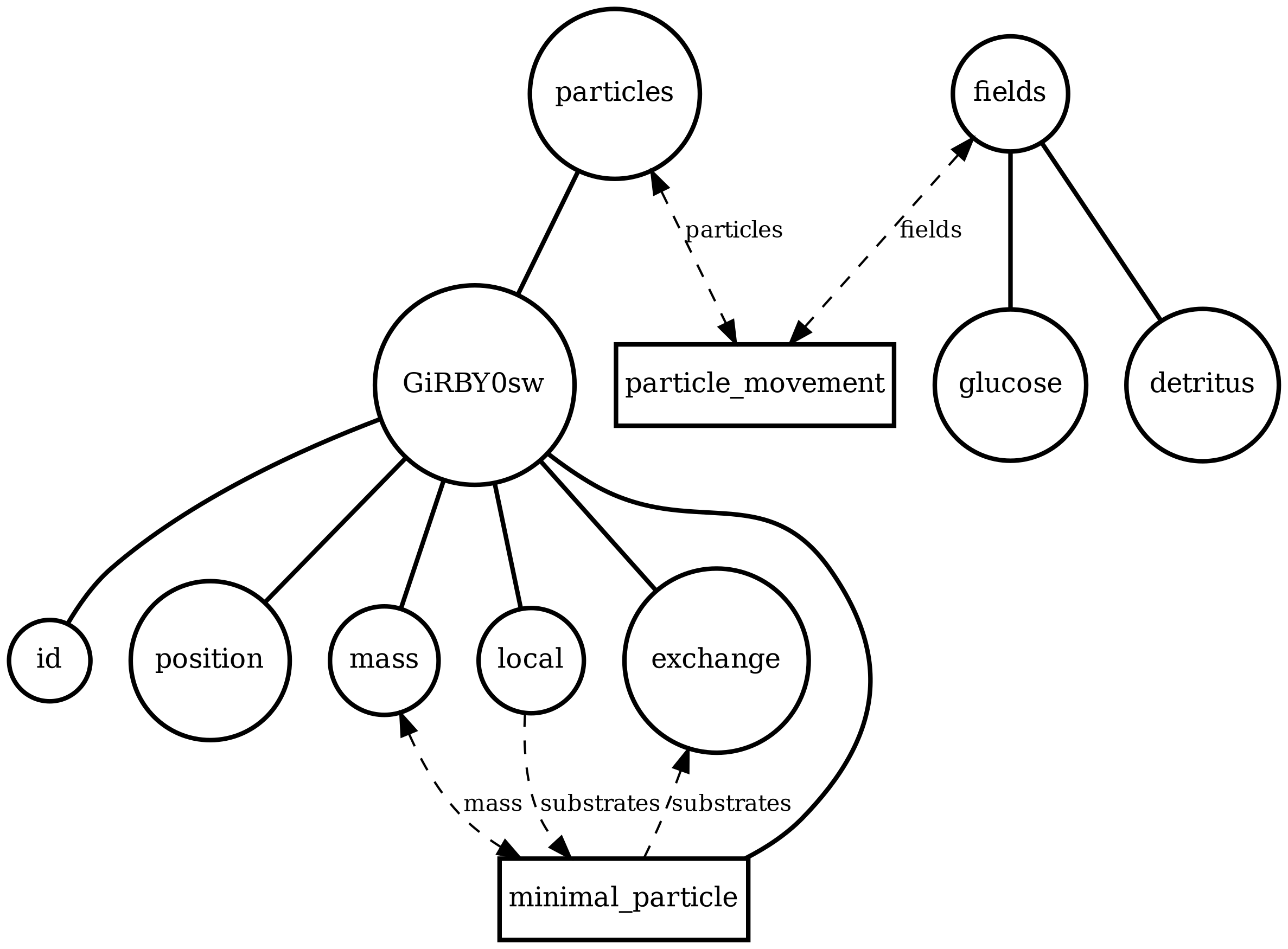

Brownian agents diffuse through a lattice of glucose and acetate, taking up substrate by Monod kinetics so that exchange updates both particle mass and the local fields, with agents dividing once they cross a mass threshold.

Runtime: 0.126s (process: 0.061s, framework: 0.065s)

br_particles_kinetics_state.json

View full JSON

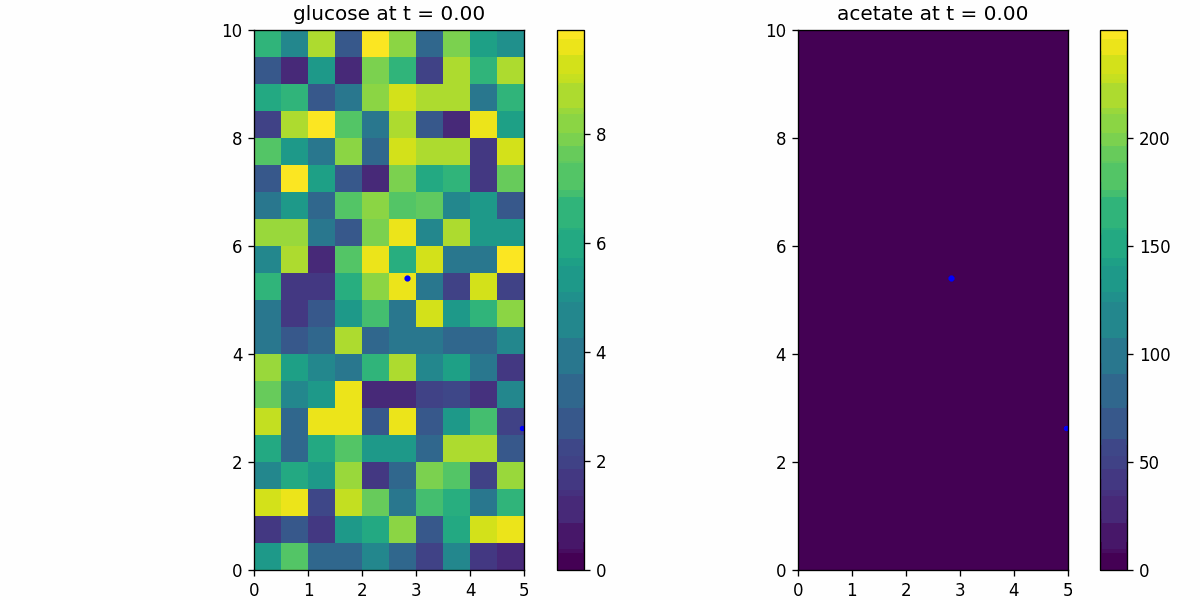

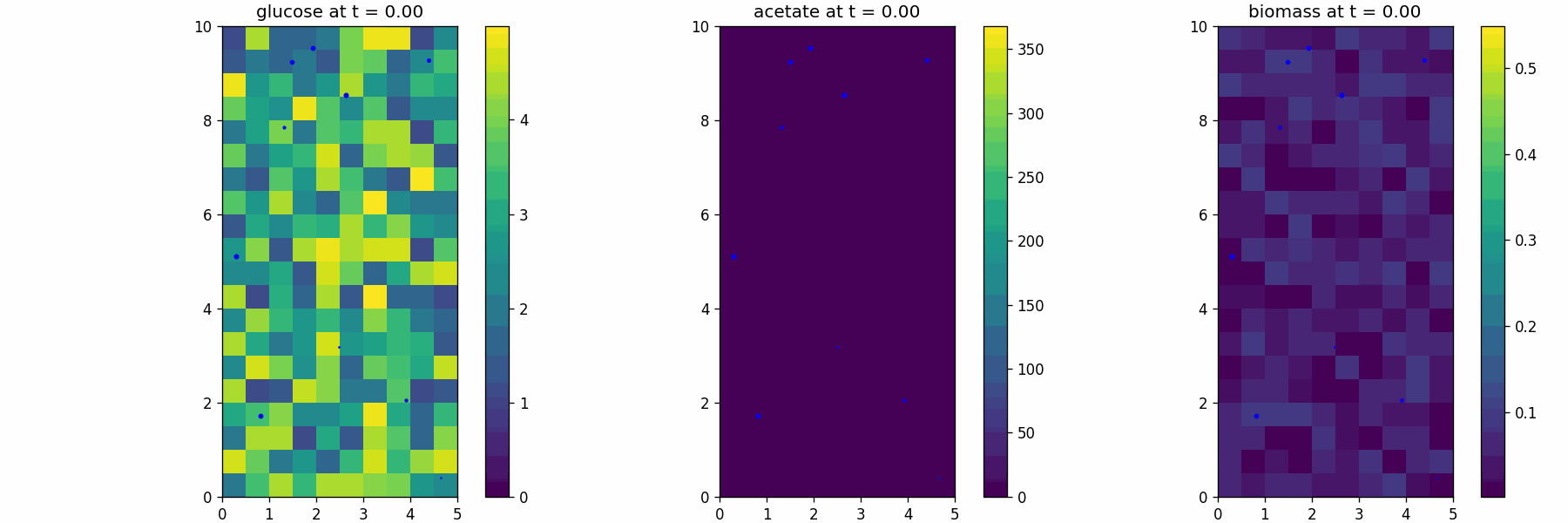

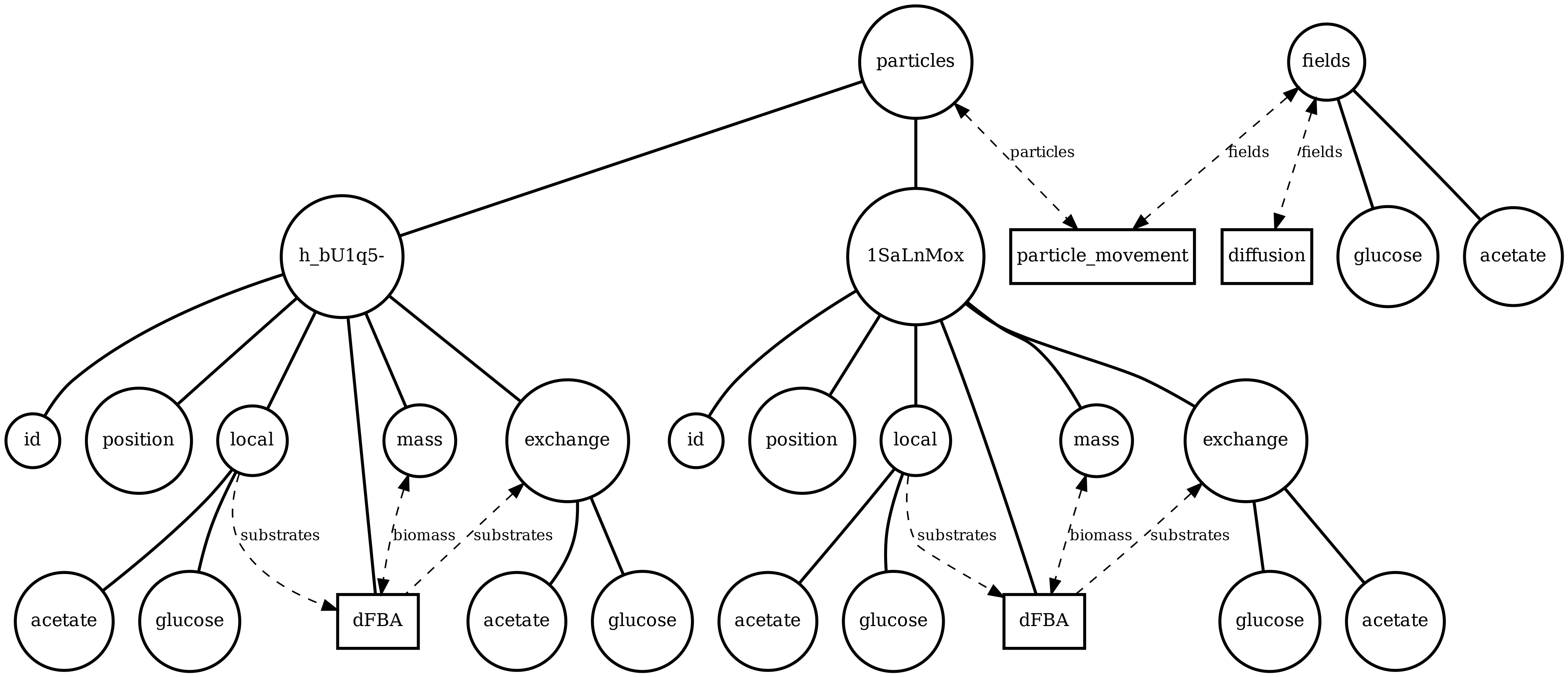

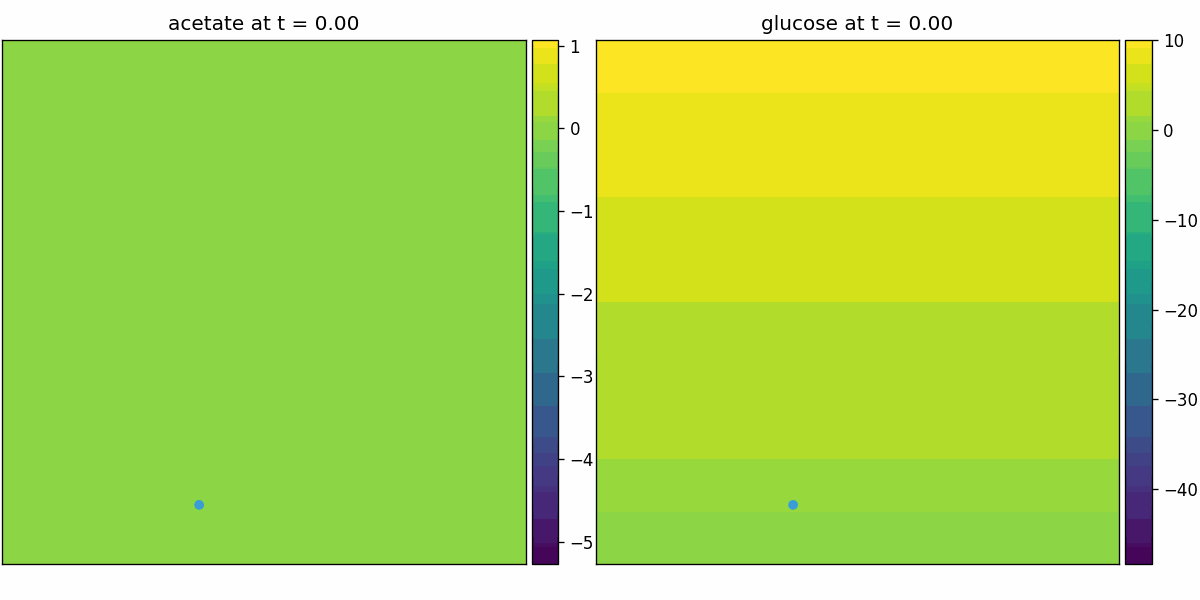

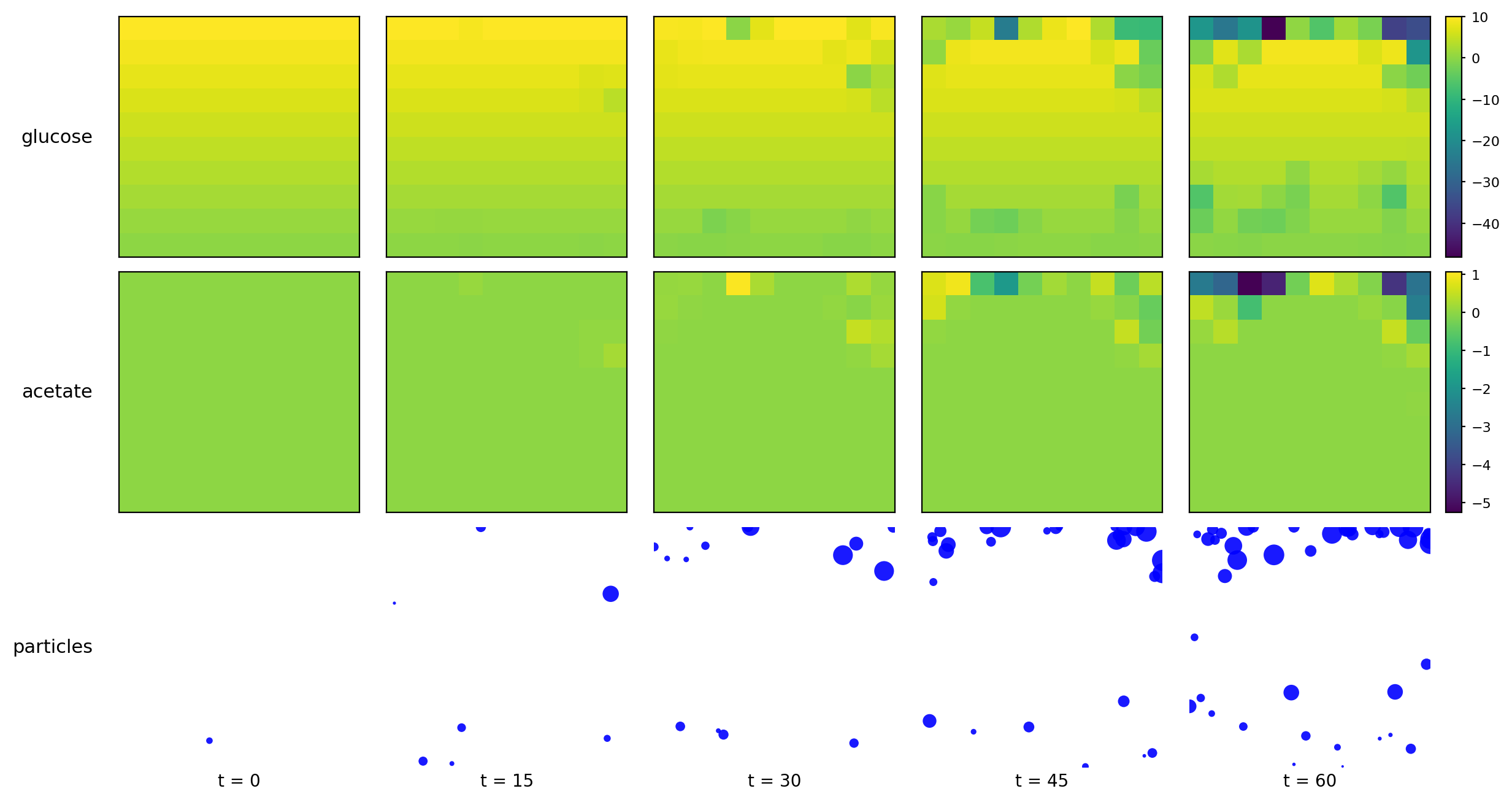

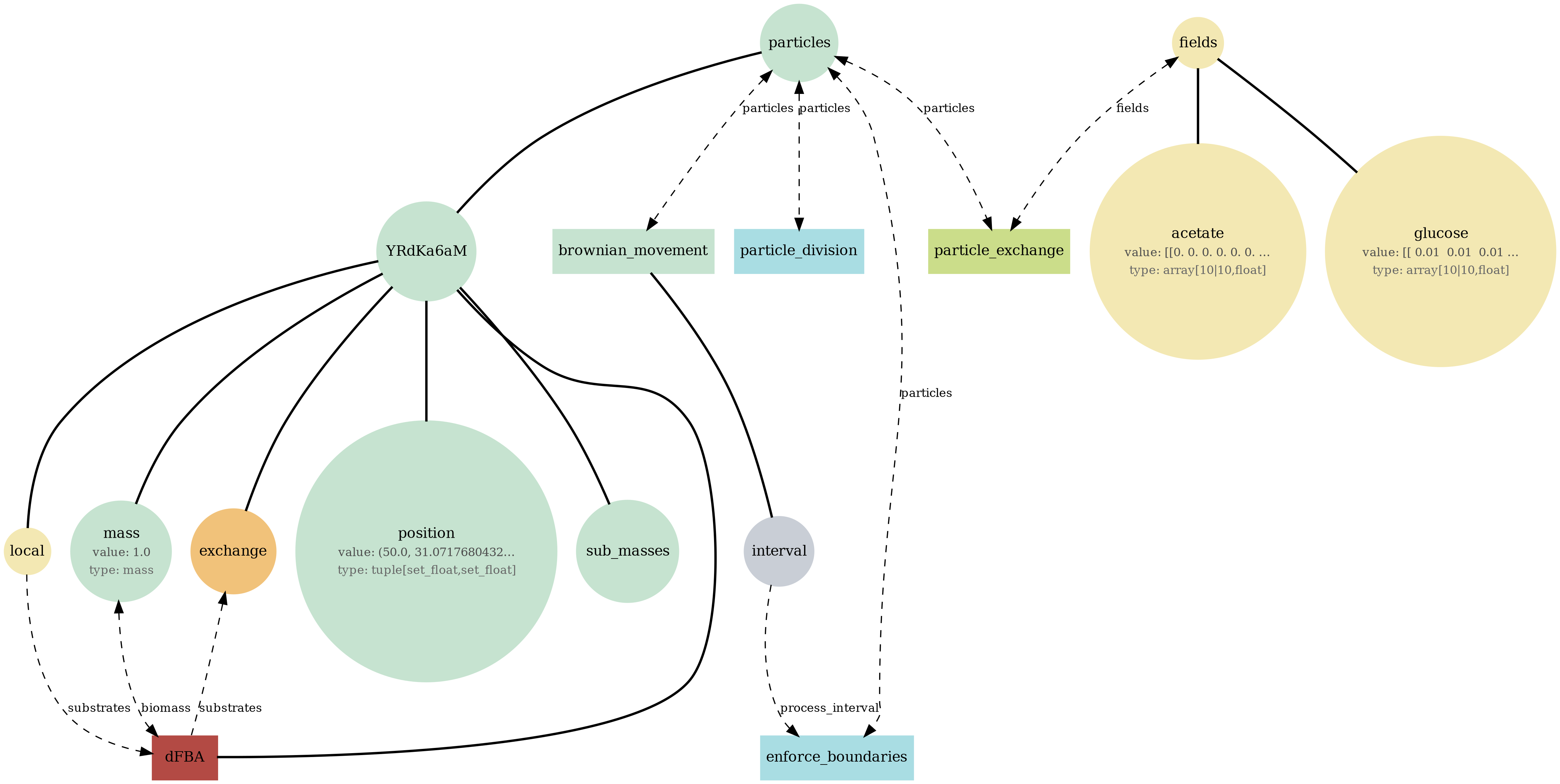

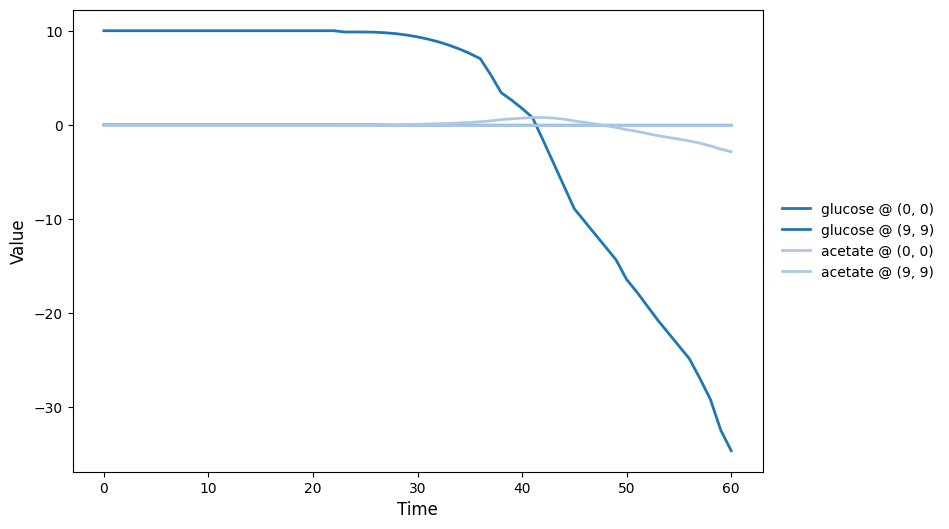

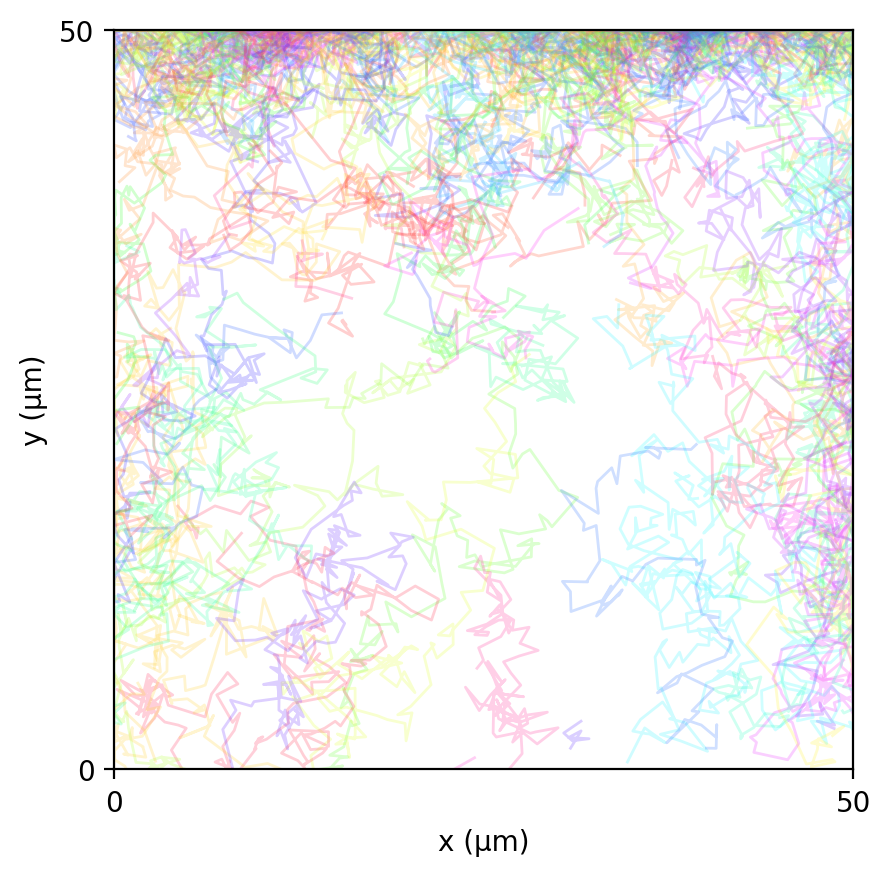

br_particles_dfba

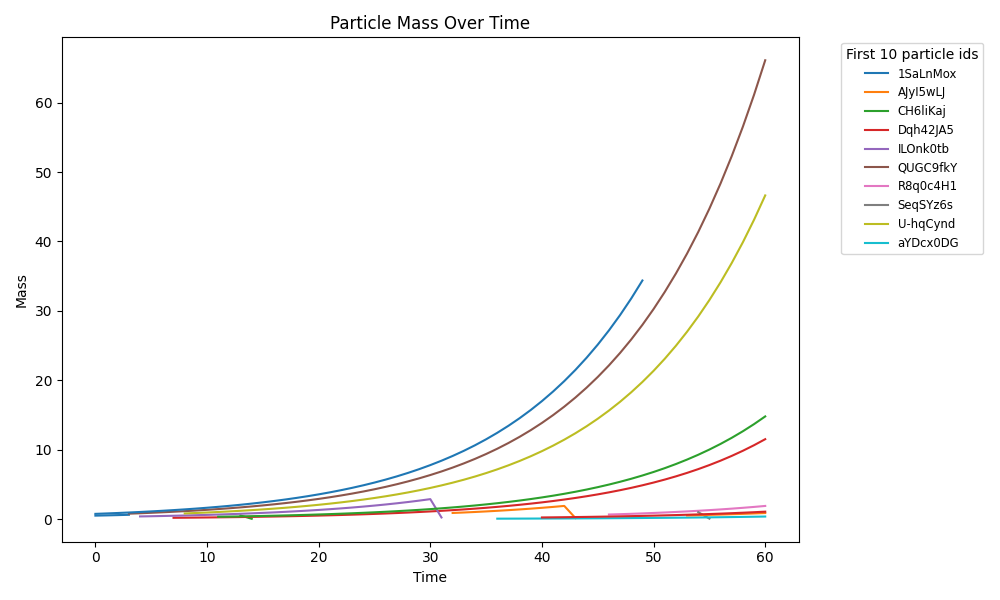

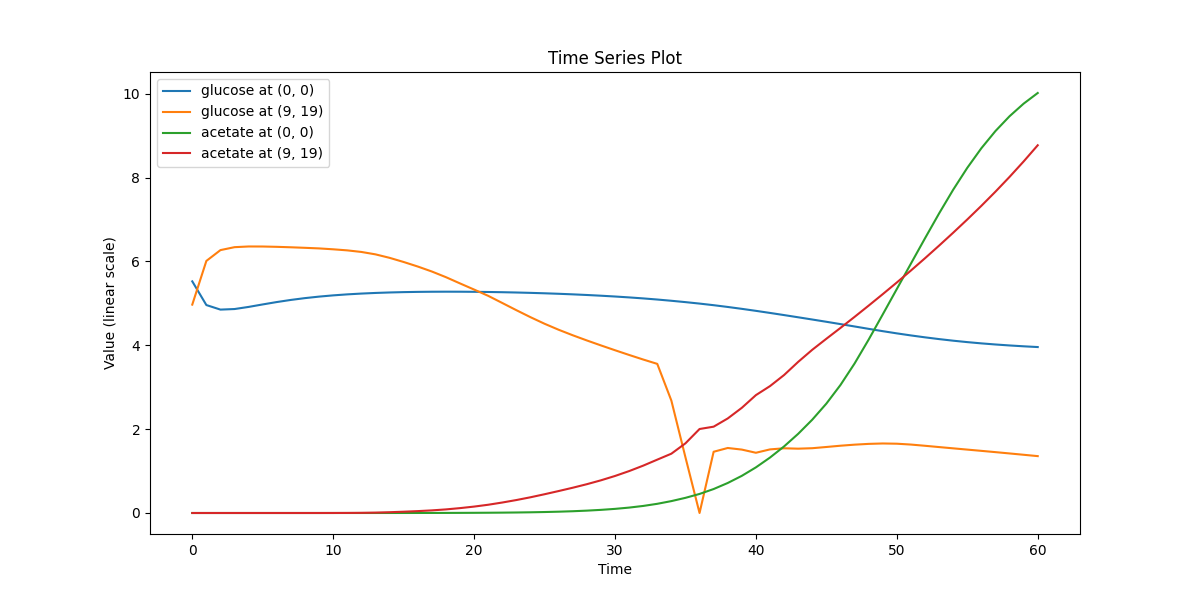

Brownian agents each run an internal dFBA model, exchanging glucose and acetate with the surrounding fields so that metabolic biomass accumulates as particle mass and drives division, over a vertical glucose gradient.

Runtime: 3.161s (process: 1.663s, framework: 1.498s)

br_particles_dfba_state.json

View full JSON

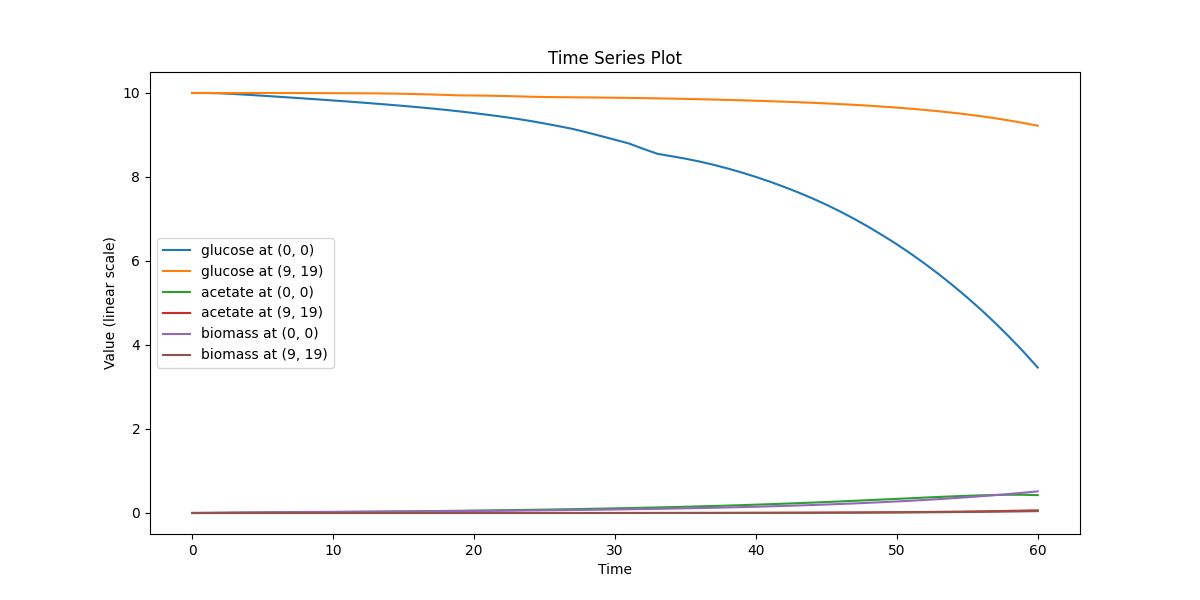

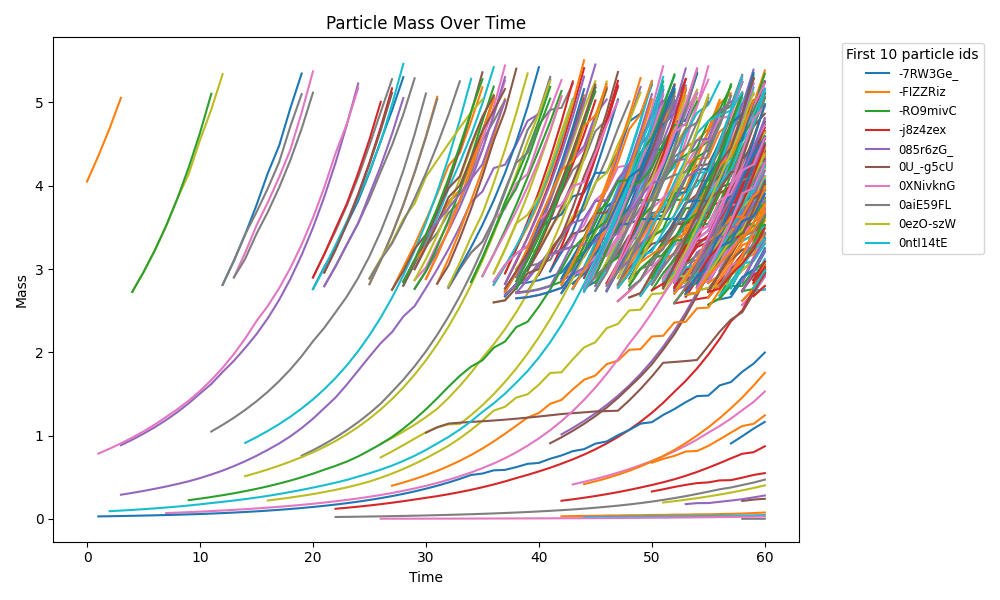

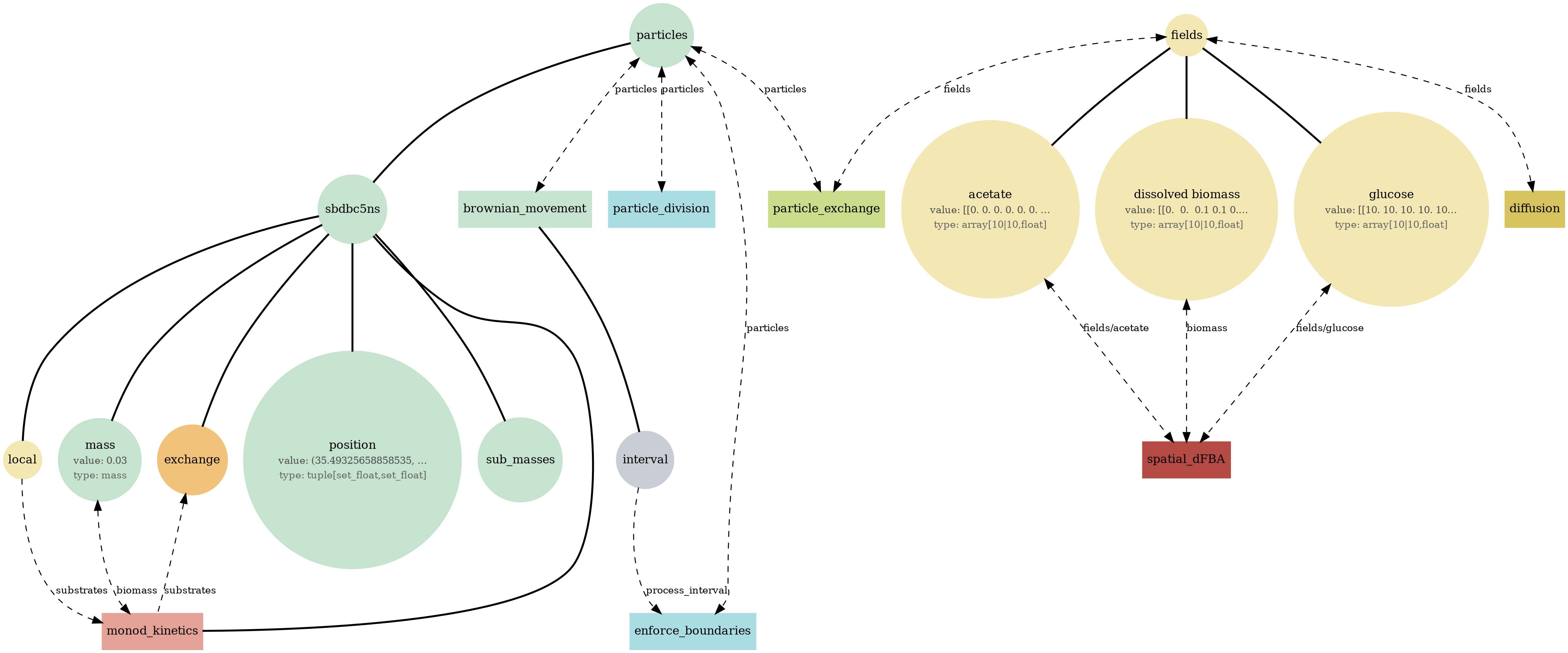

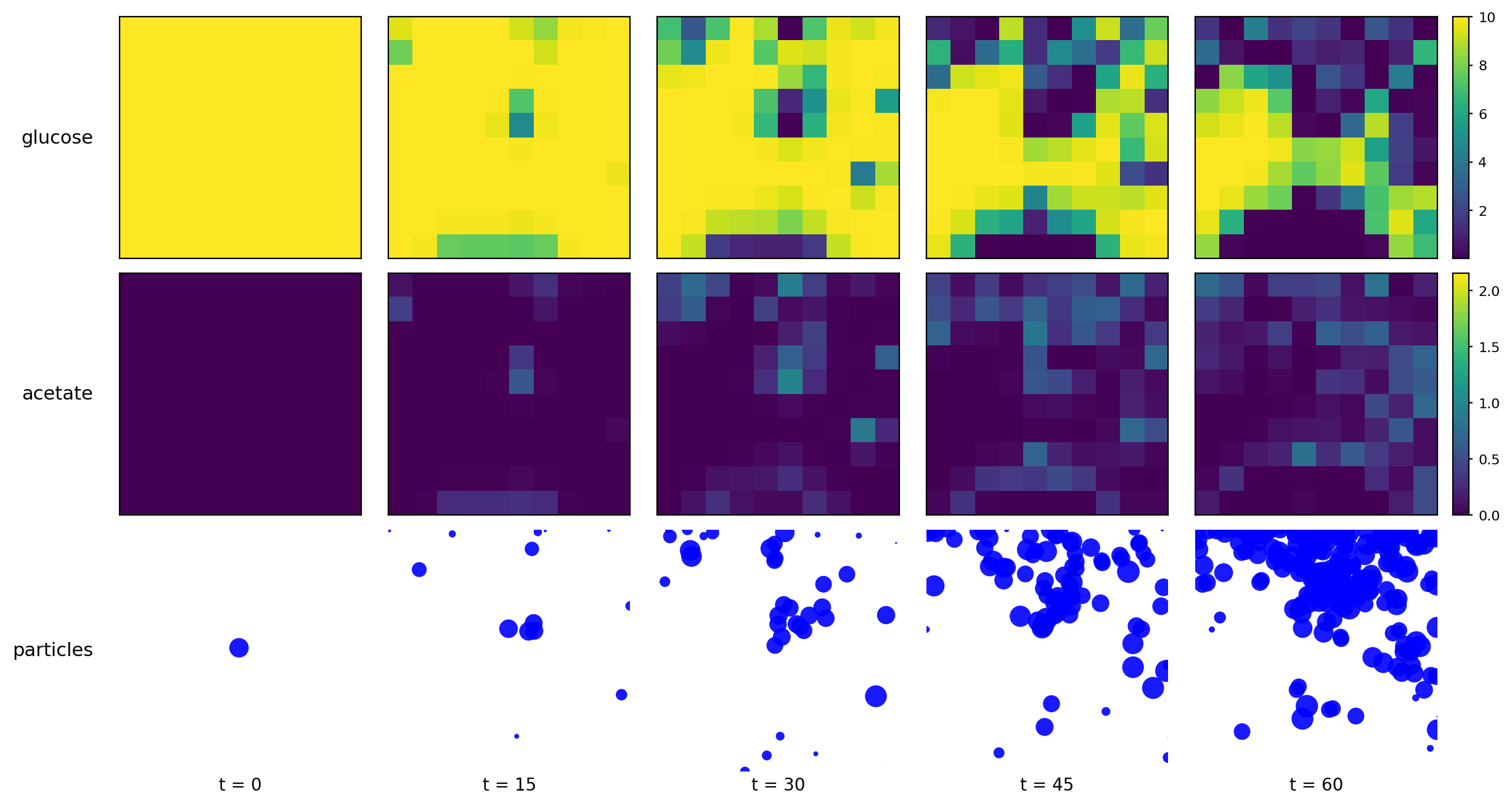

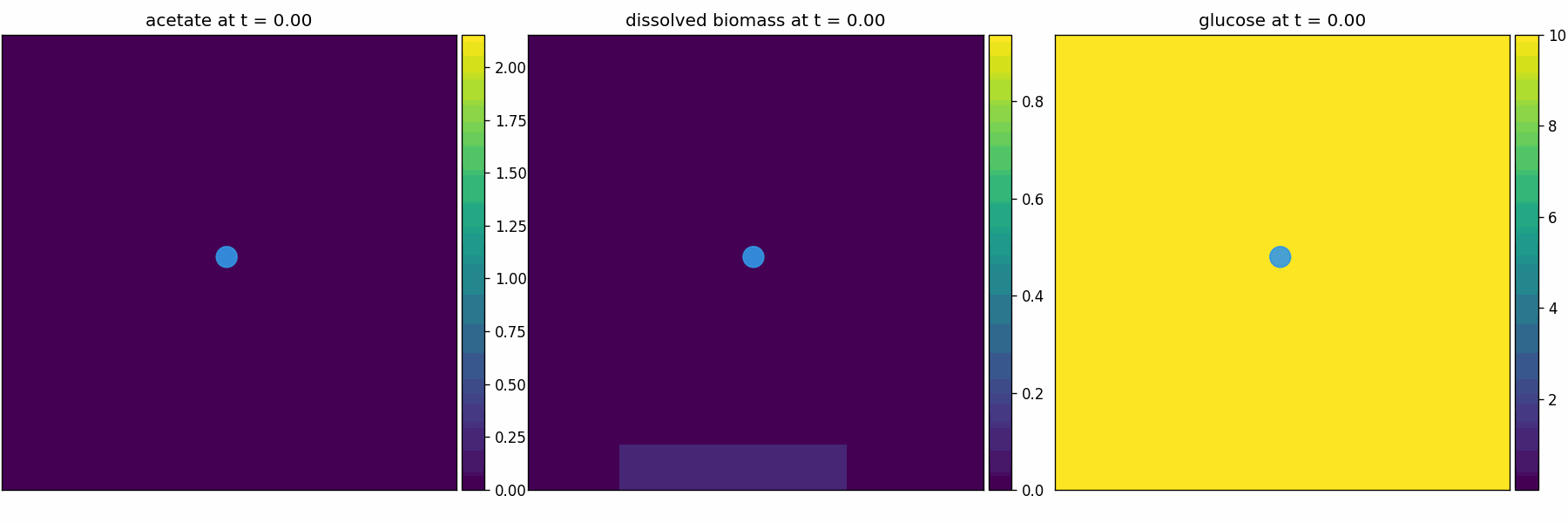

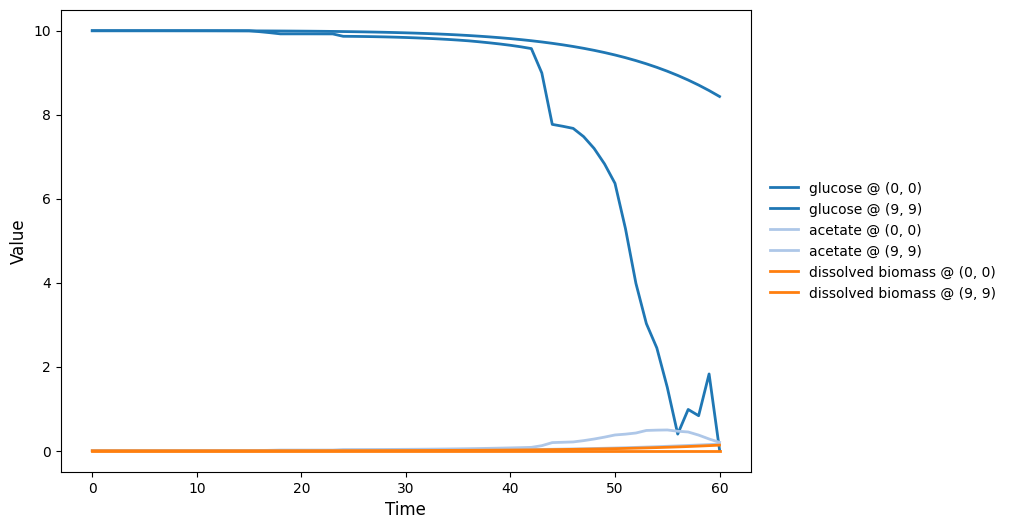

comets_br_particles_kinetics

A COMETS-style scenario coupling lattice dFBA fields, advection–diffusion, and Brownian agents that run Monod kinetics against local concentrations, exchanging substrate with the fields and dividing at a mass threshold.

Runtime: 8.887s (process: 7.659s, framework: 1.228s)

comets_br_particles_kinetics_state.json

View full JSON

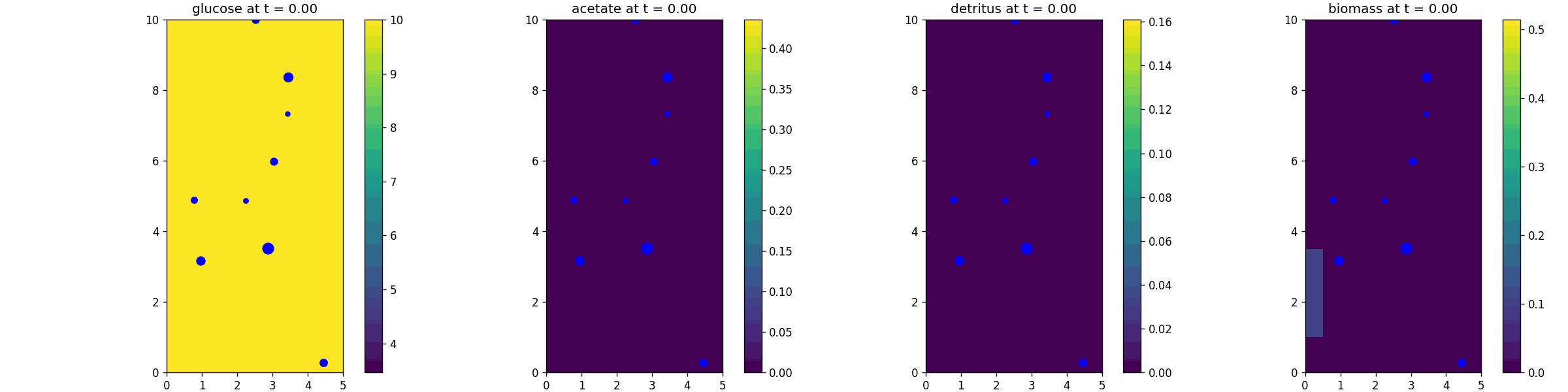

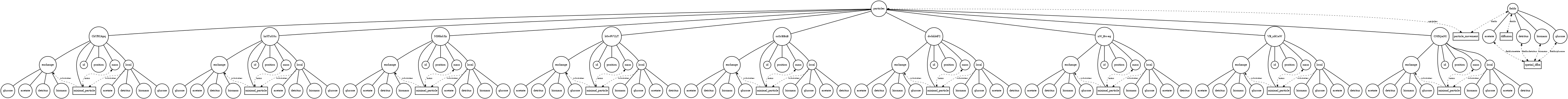

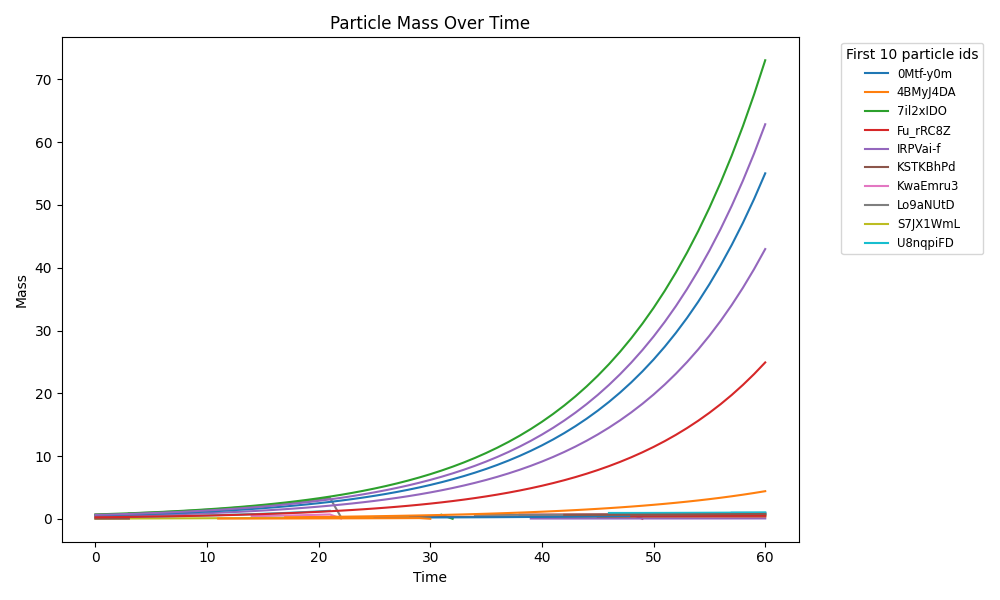

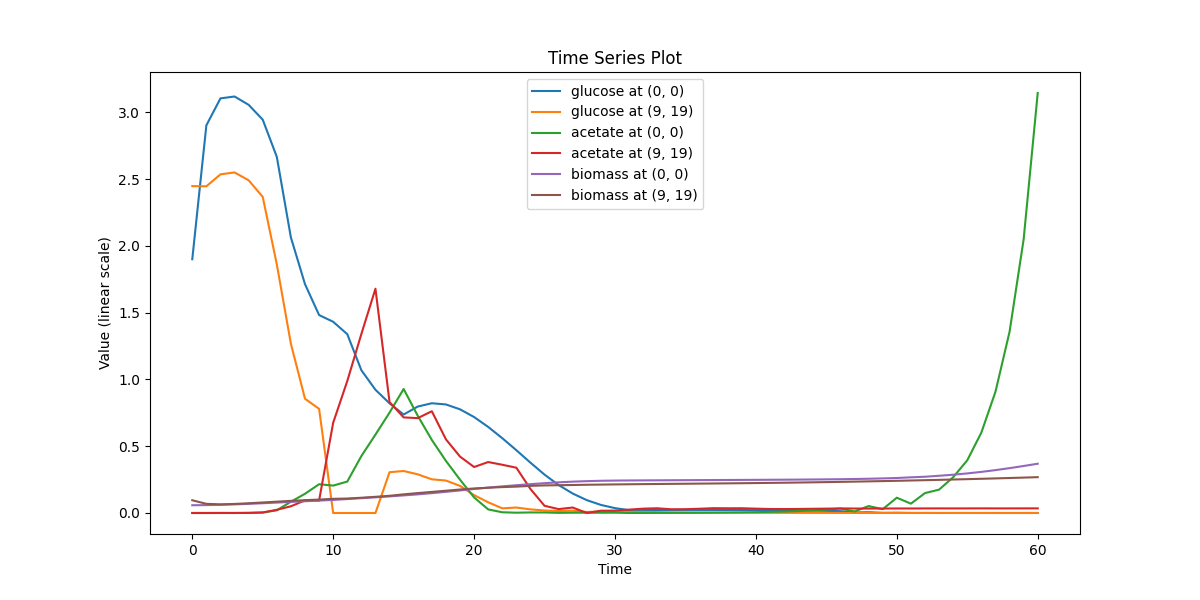

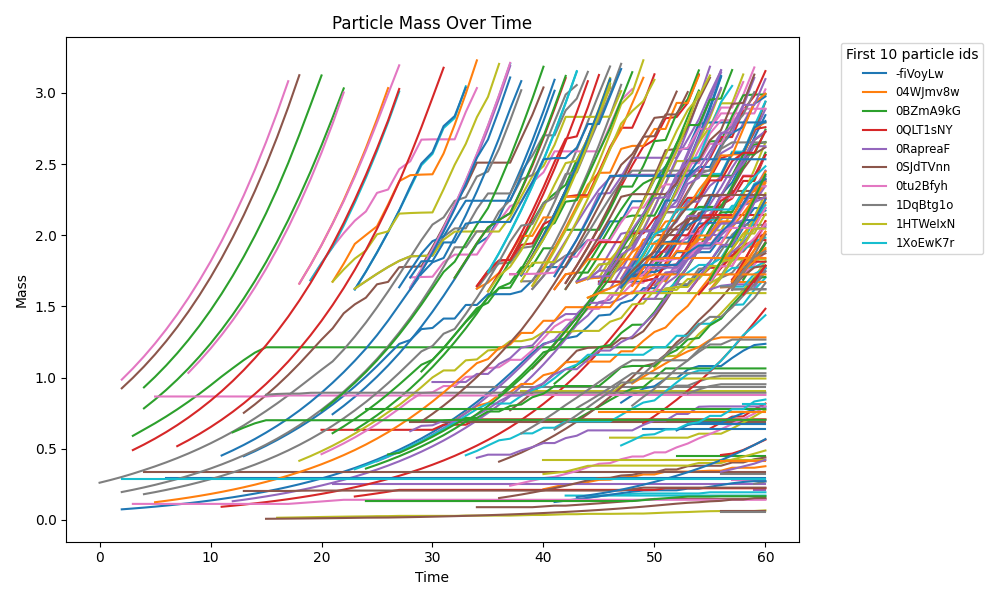

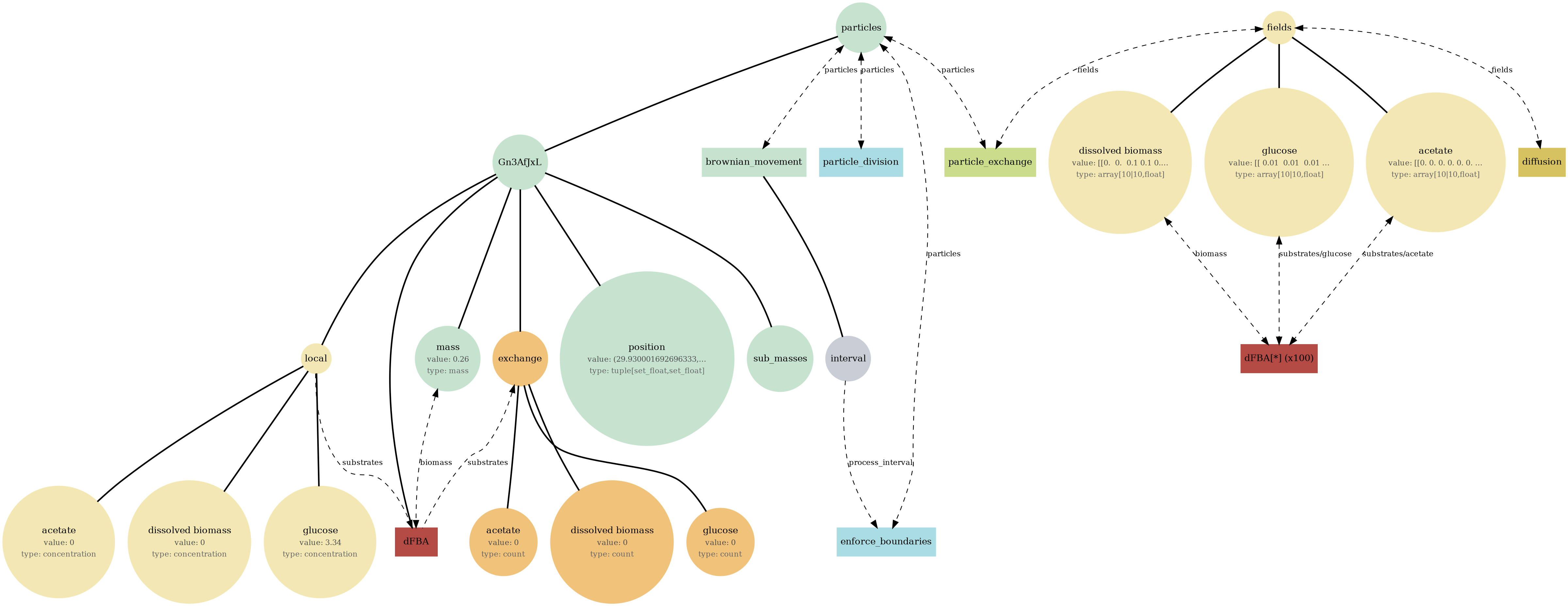

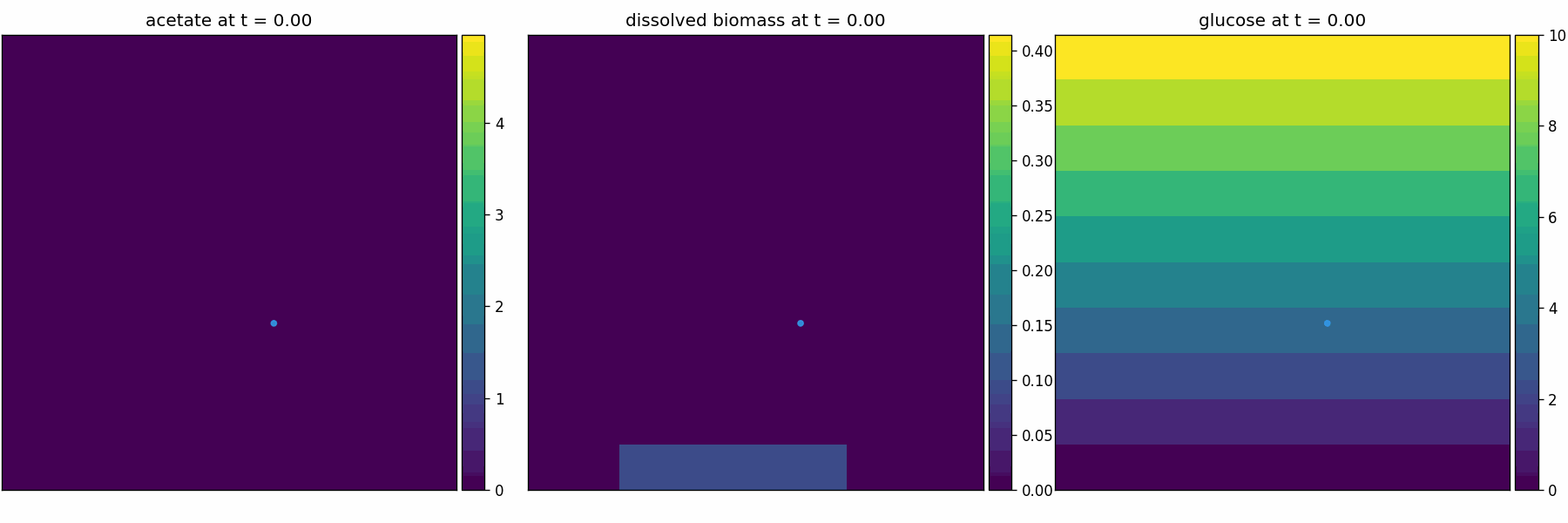

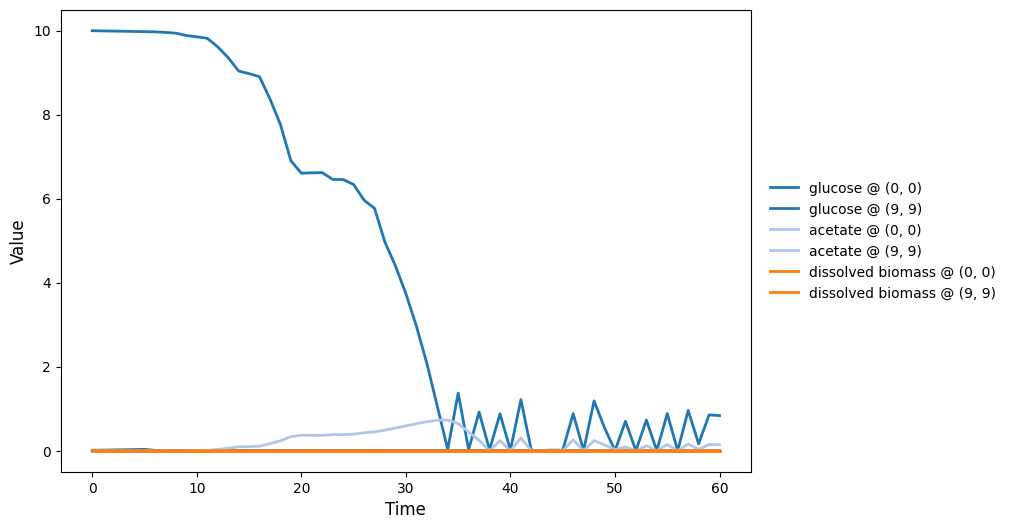

comets_br_particles_dfba

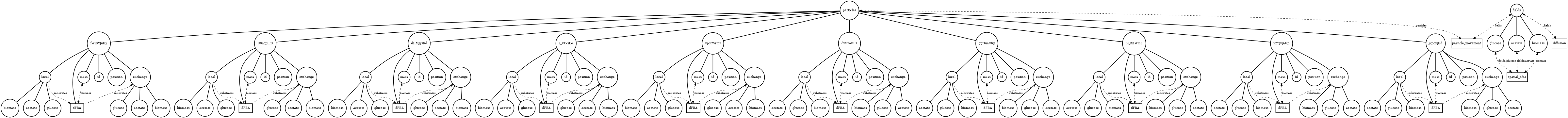

The full COMETS-style composite: per-site lattice dFBA and advection–diffusion of substrates coupled to Brownian particles that each run an internal dFBA model, exchange with the fields, and divide as biomass accumulates.

Runtime: 21.033s (process: 12.139s, framework: 8.893s)

comets_br_particles_dfba_state.json

View full JSON

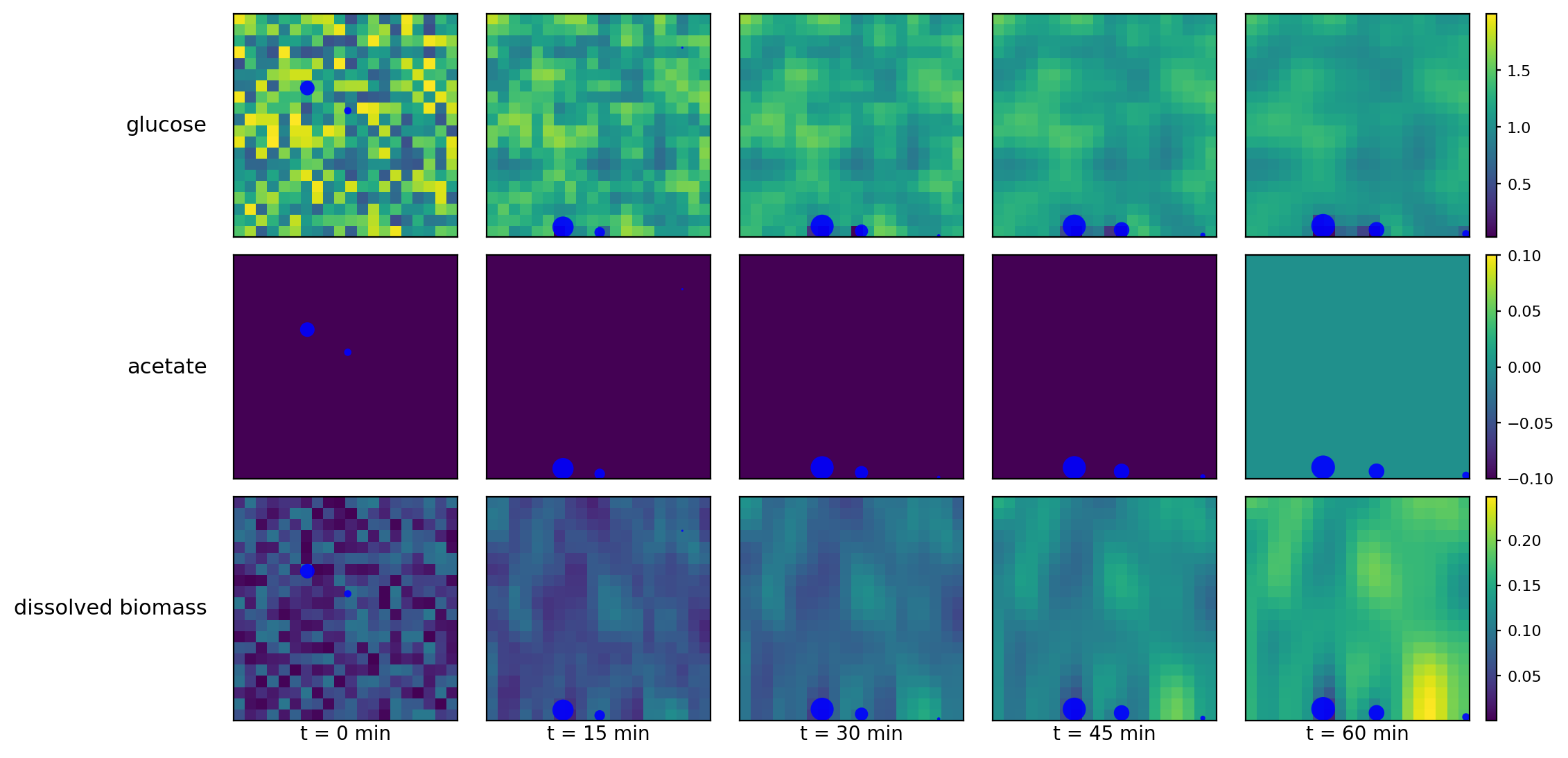

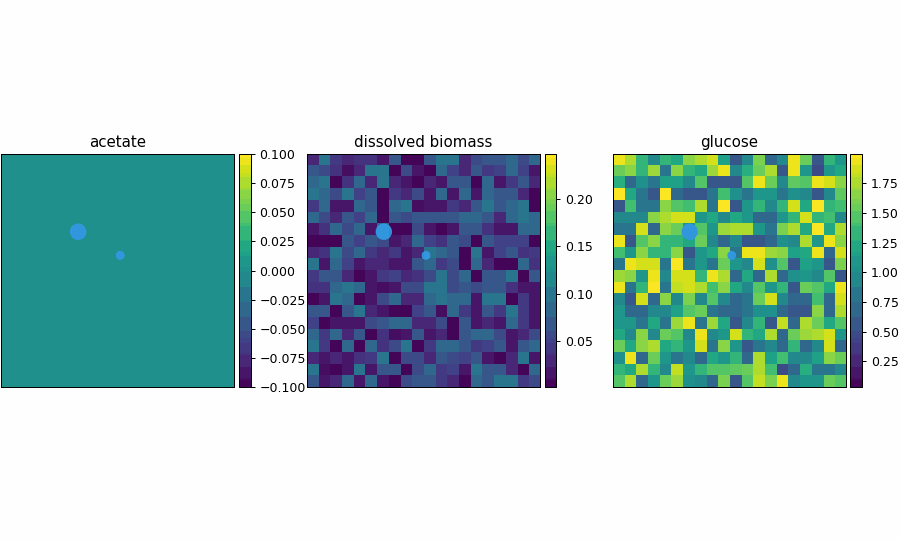

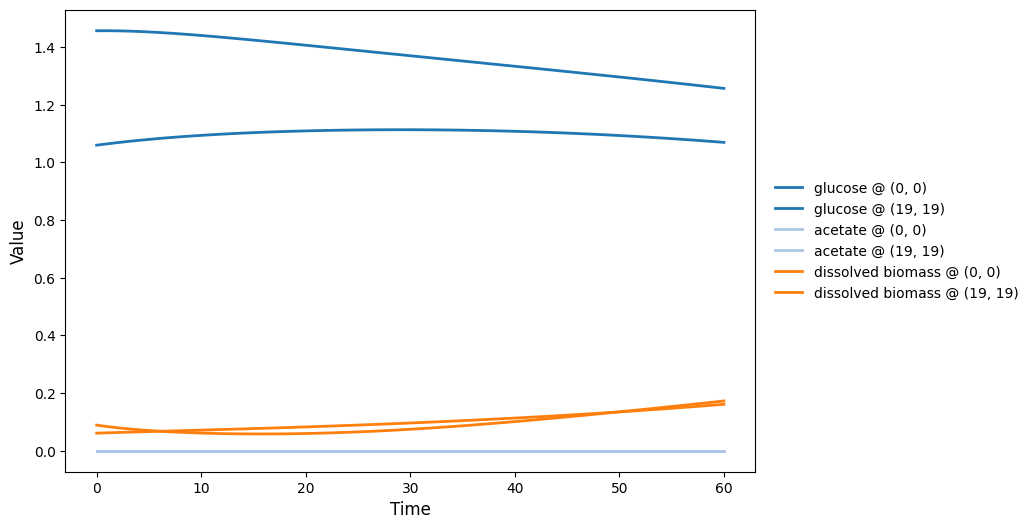

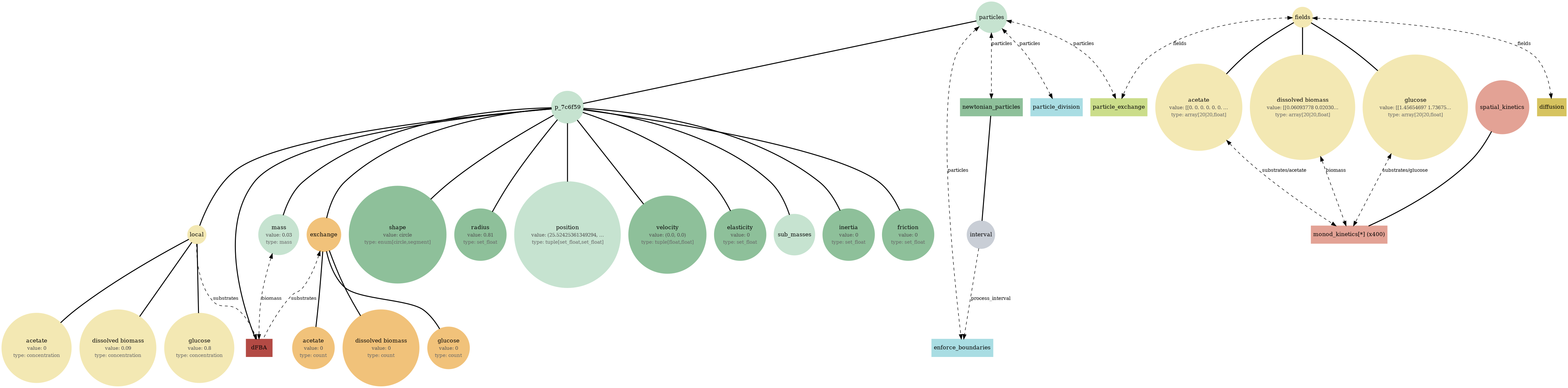

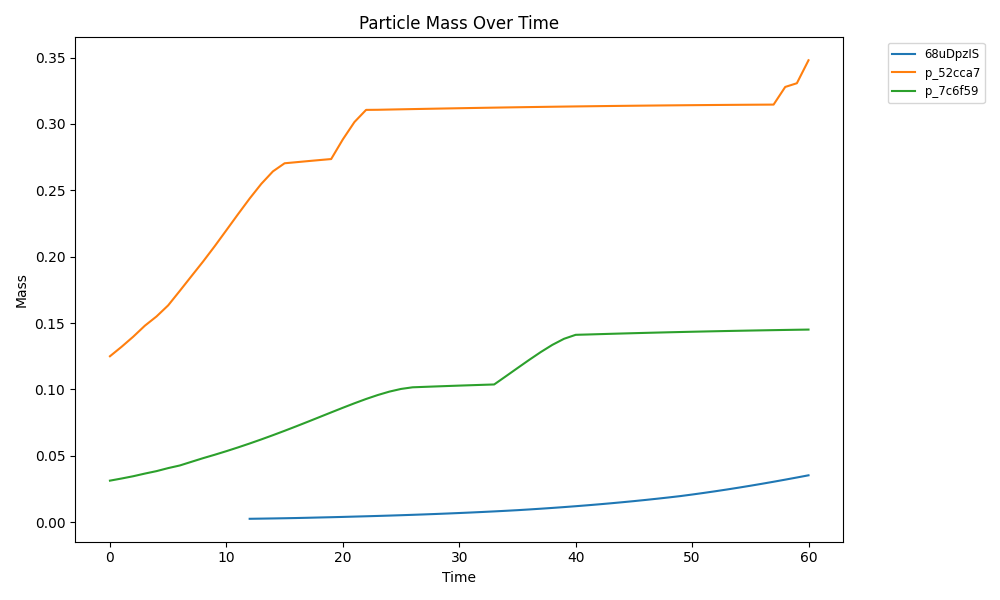

comets_nt_particles_dfba

Pymunk rigid-body particles that collide and settle under gravity while COMETS fields diffuse and a lattice kinetics process consumes substrate; each particle runs an internal dFBA model, exchanging with the local fields and dividing as it grows.

Runtime: 1.362s (process: 0.284s, framework: 1.078s)

comets_nt_particles_dfba_state.json

View full JSON

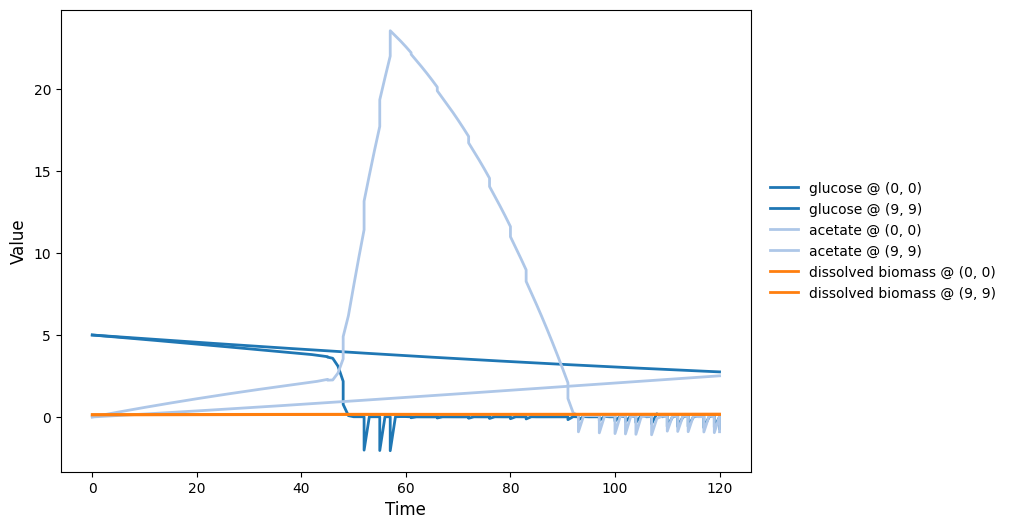

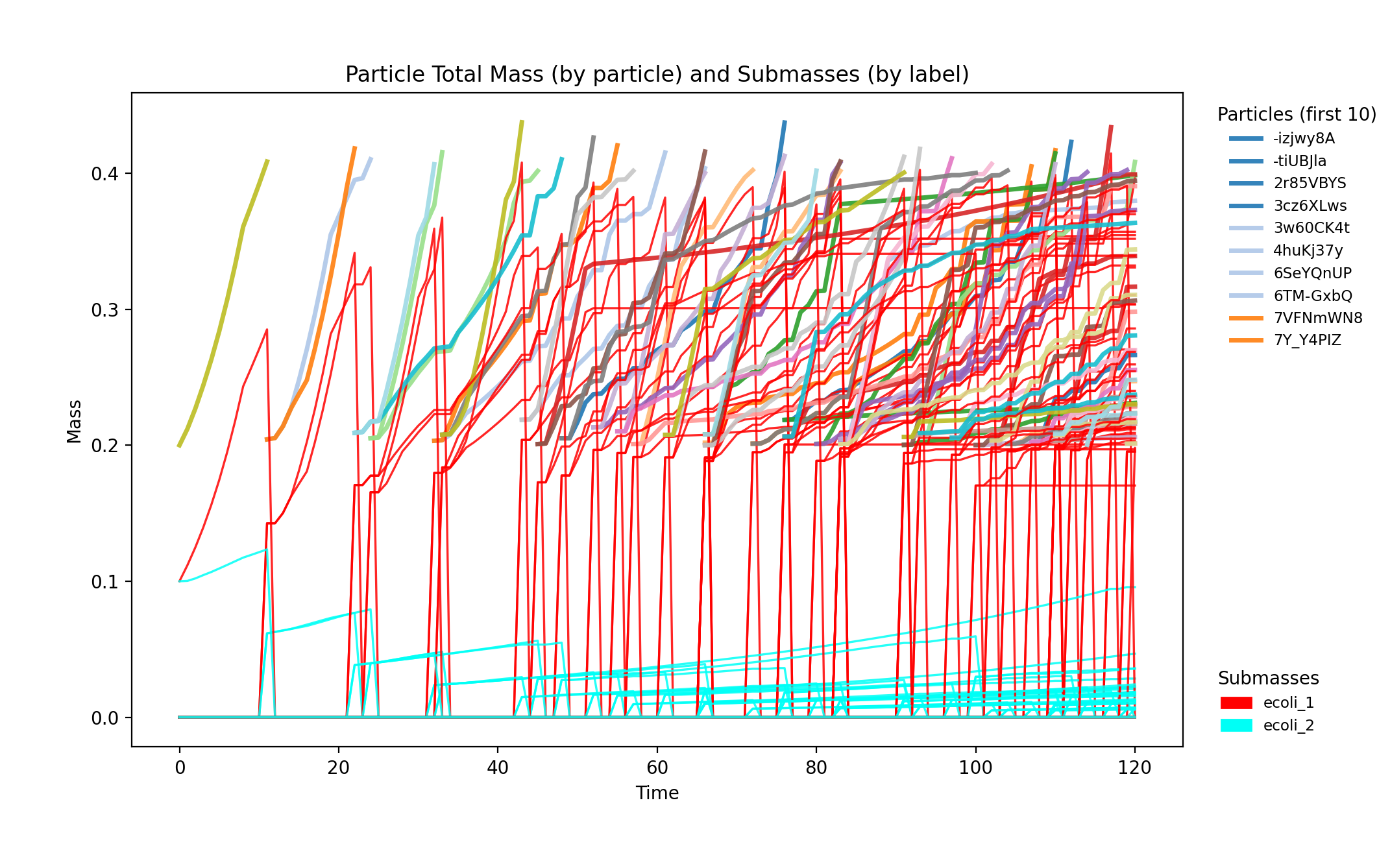

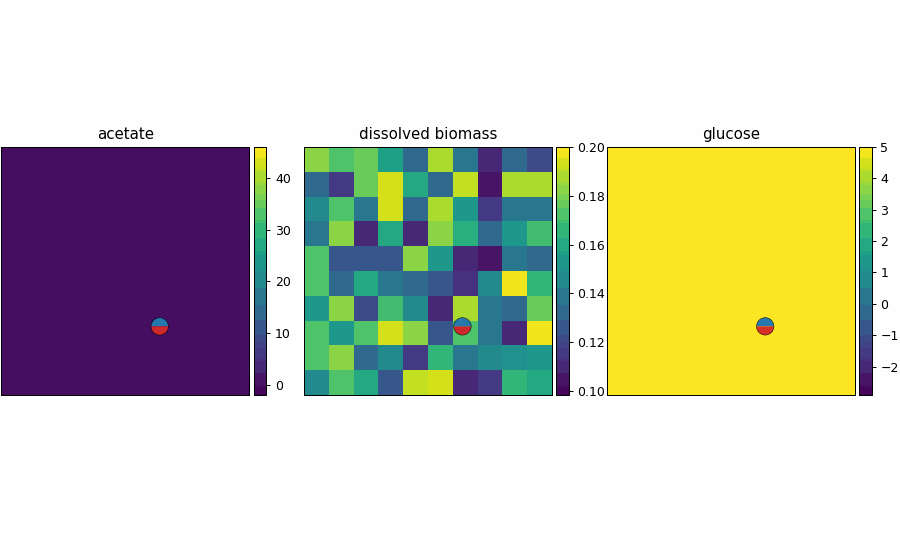

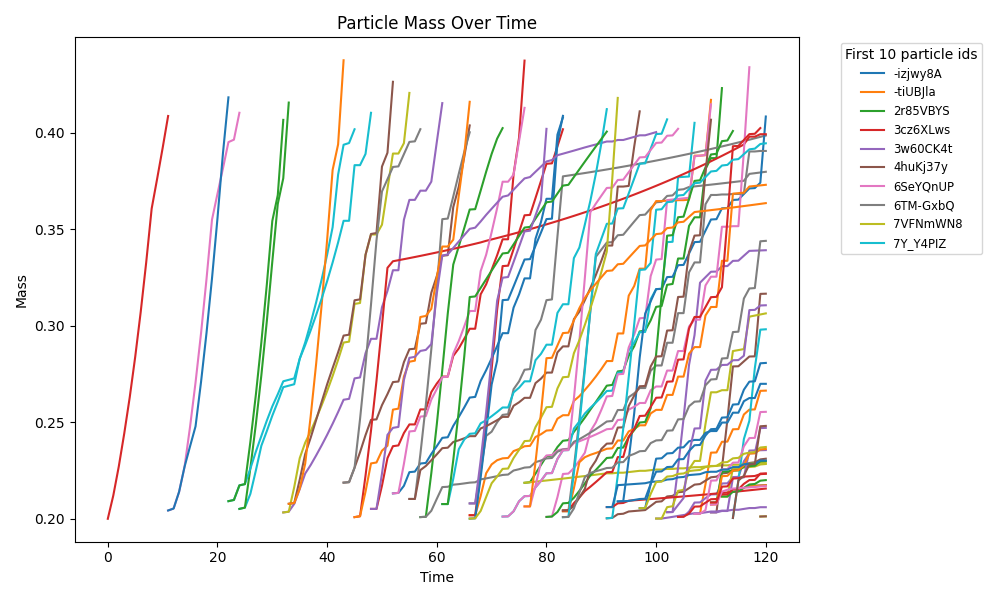

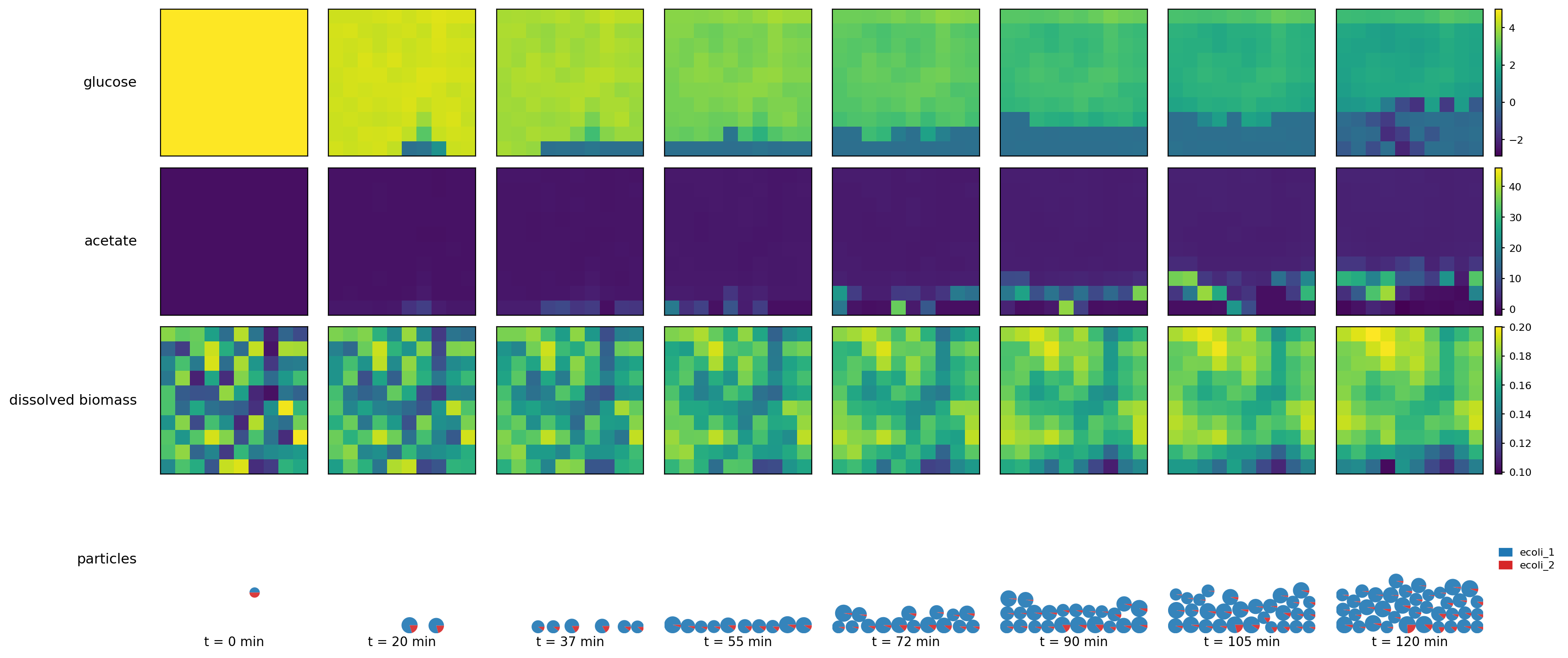

spatioflux_reference_demo

The flagship SpatioFlux reference model: Newtonian particles, each carrying a two-strain E. coli community with its own internal dFBA, swim through diffusing glucose and acetate fields, exchange substrate locally, and divide by splitting sub-masses between daughters.

Runtime: 1.271s (process: 0.458s, framework: 0.813s)

spatioflux_reference_demo_state.json

View full JSON

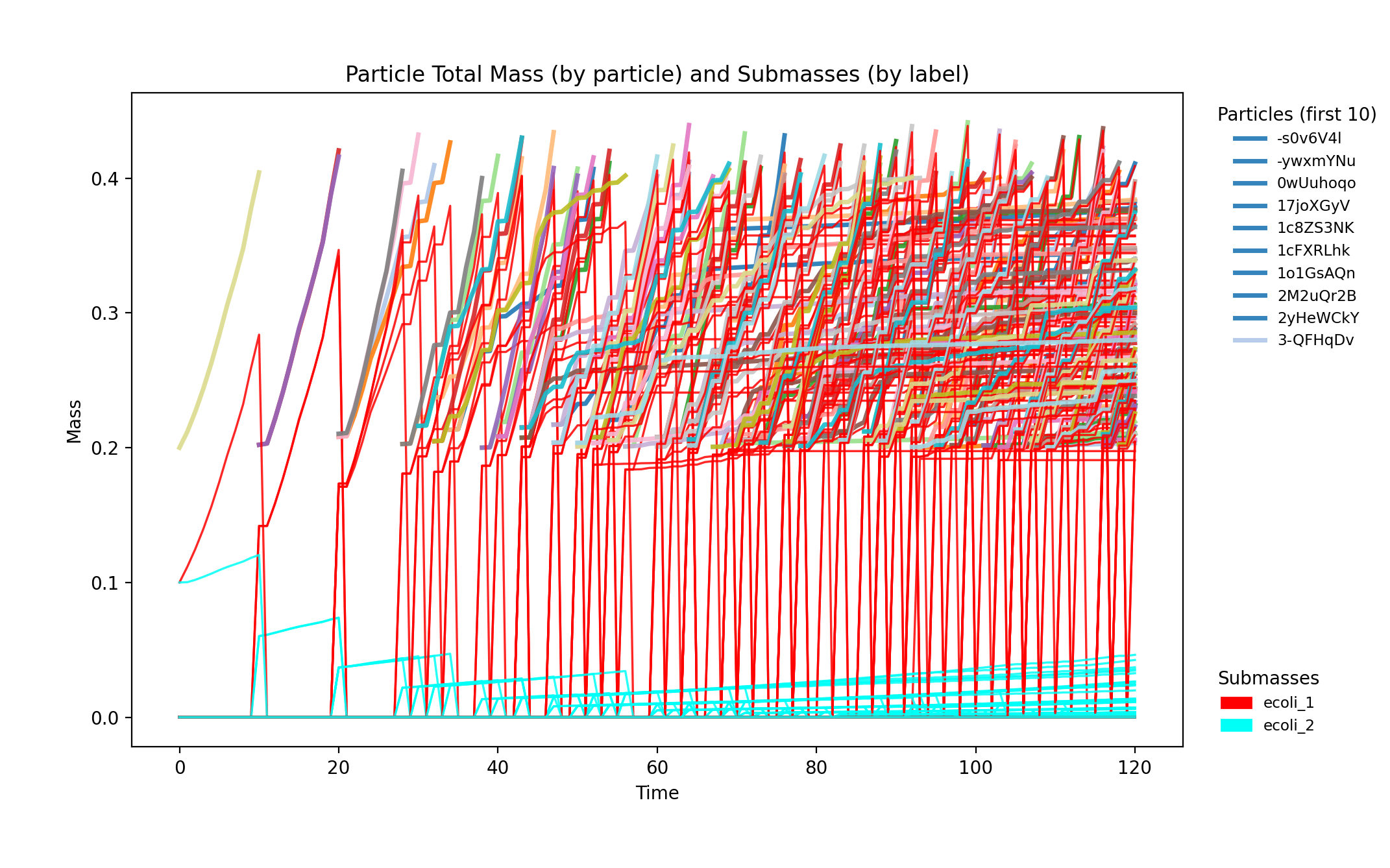

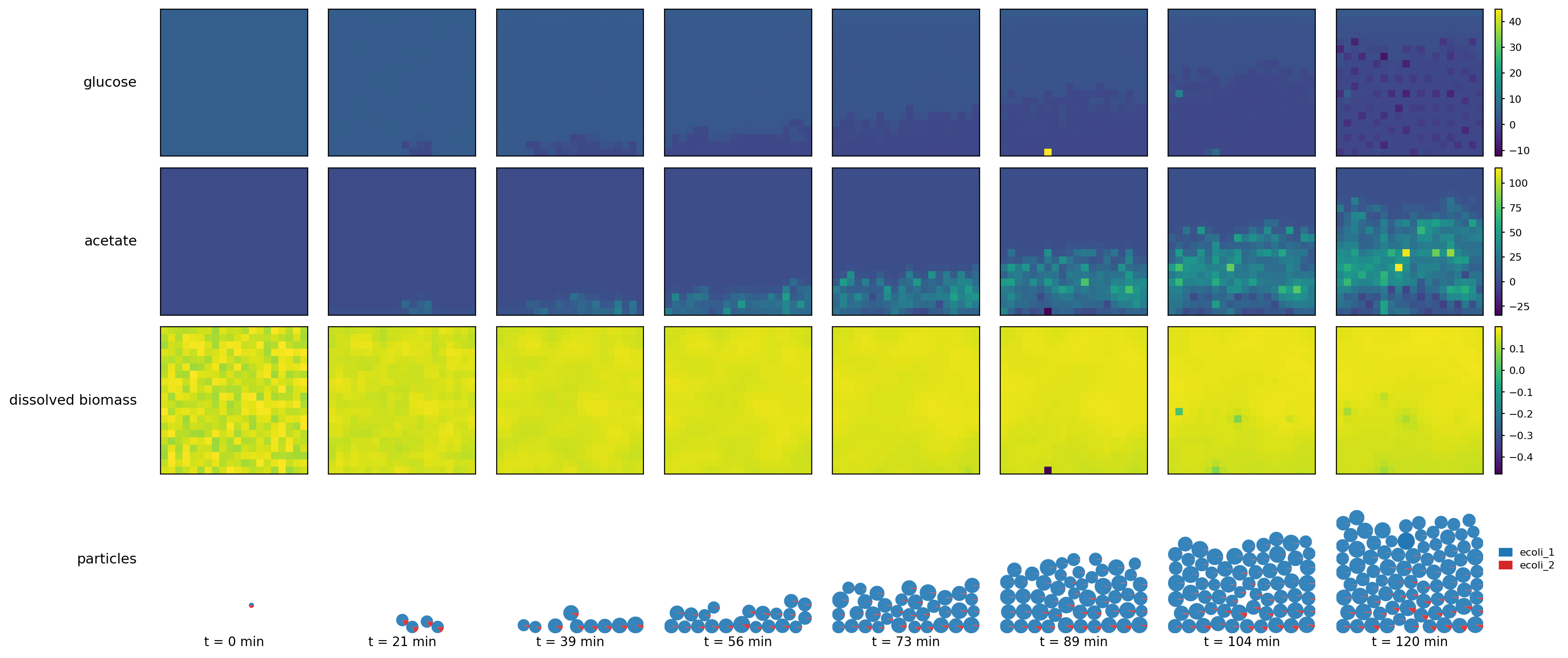

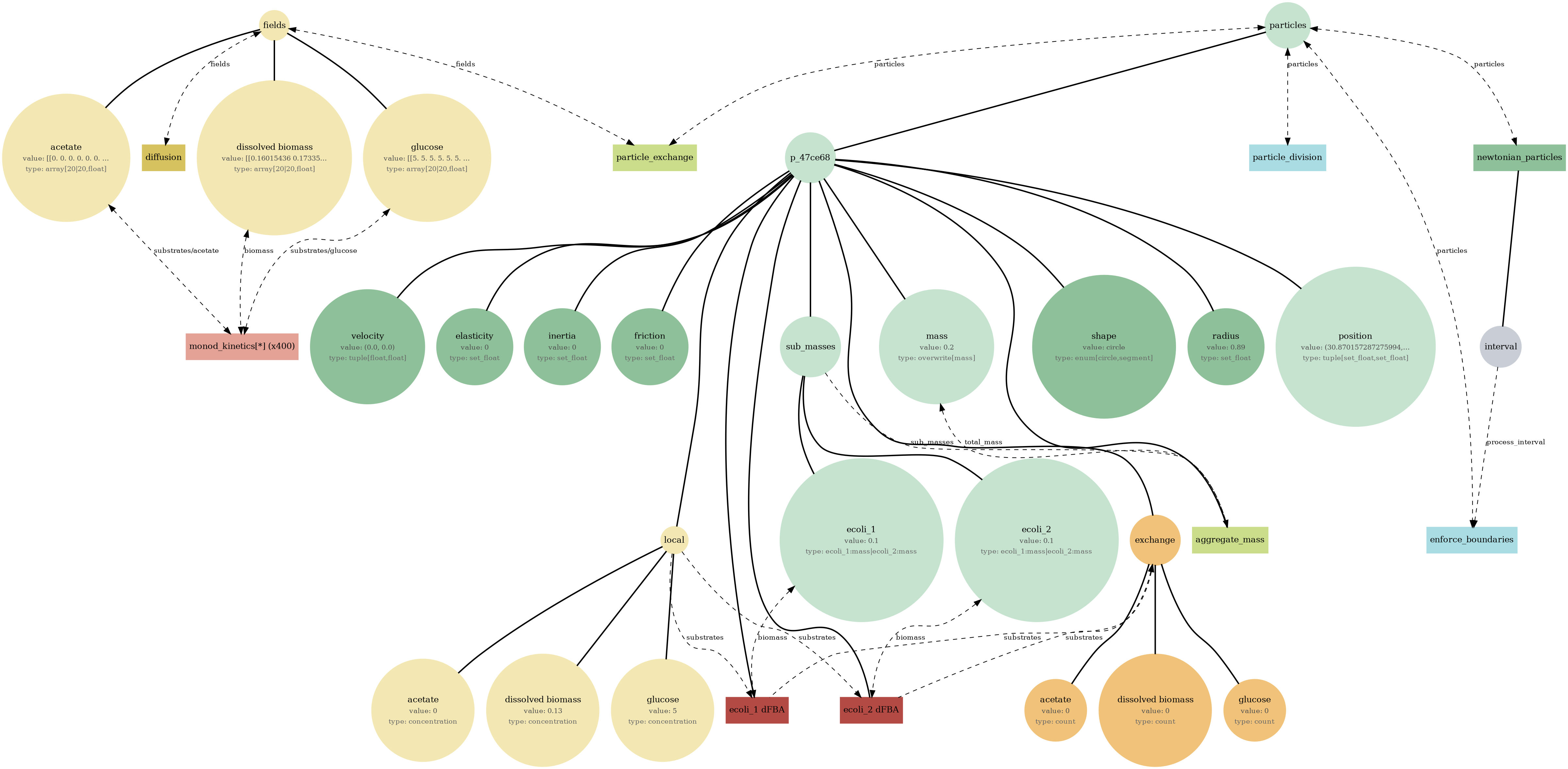

reference_demo_x2y2

The SpatioFlux reference model on a finer field lattice with doubled bin counts in x and y: the same Newtonian particles carrying a two-strain internal-dFBA community, with local substrate exchange, diffusing glucose/acetate fields, and sub-mass-splitting division.

Runtime: 4.547s (process: 0.734s, framework: 3.812s)

reference_demo_x2y2_state.json

View full JSON







Total Simulation Time

96.311 seconds

↑ Contents
